Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

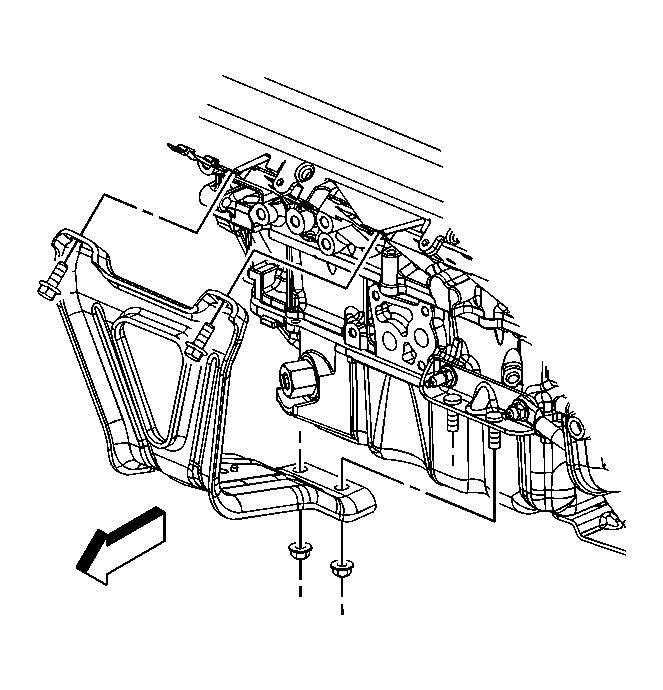

    Fig 1: Identifying Front Engine Mount Bracket Bolts/Nuts
    GM1660849Courtesy of GENERAL MOTORS CORP.
  1. Remove the front frame. Refer to Frame Replacement - Front .
  2. Remove the engine mount bracket to cylinder head bolts.
  3. Remove the upper engine mount bracket to lower engine mount bracket nuts.
  4. Remove the upper engine mount bracket.

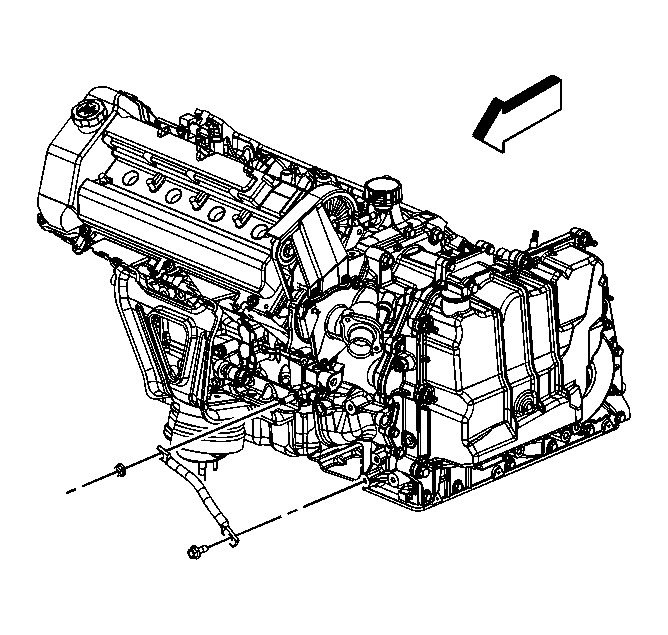

    5. Fig 2: View Of Transaxle Brace & Bolt
    GM1660864Courtesy of GENERAL MOTORS CORP.
  5. Remove the transaxle brace bolt.

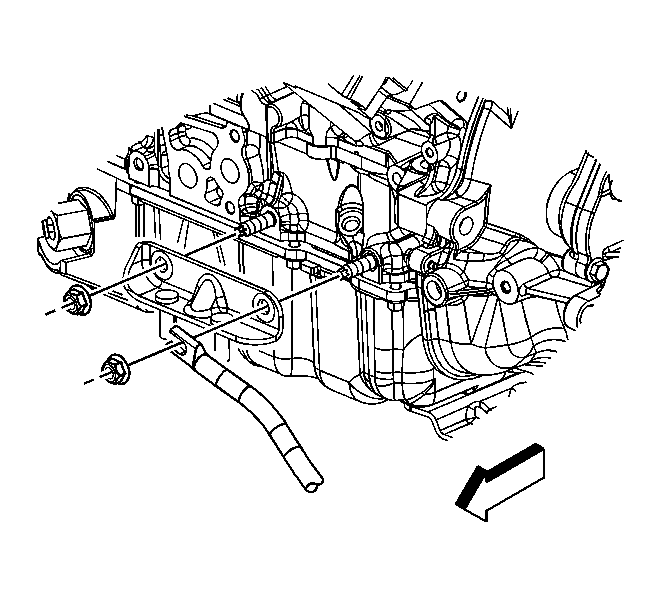

    6. Fig 3: View Of Lower Engine Mount Bracket-To-Engine Stud Nuts
    GM1660847Courtesy of GENERAL MOTORS CORP.
  6. Remove the lower engine mount bracket to engine stud nuts.
  7. Remove the transaxle brace.
  8. Remove the lower engine mount bracket.
