Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

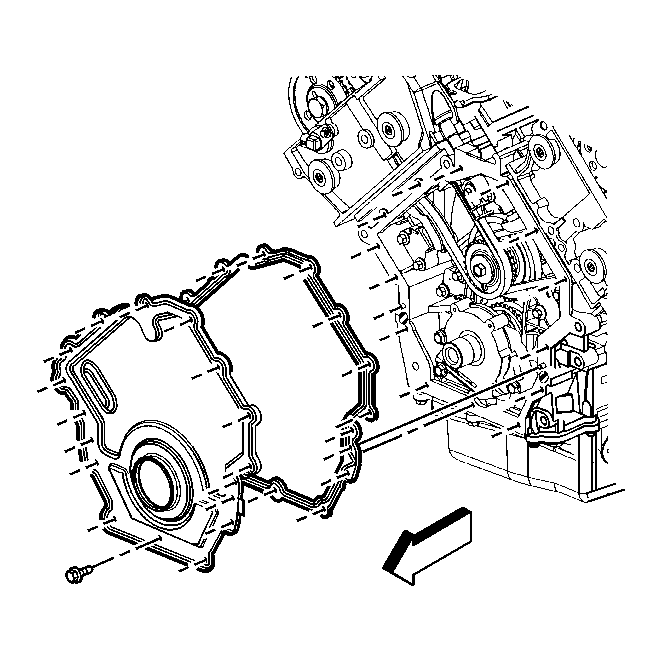

    Fig 1: View Of Engine Front Cover Bolts
    GM315077Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  3. Remove the engine front cover bolts.
  4. Remove the engine front cover and gasket. The gasket is reusable. Do not discard unless it is damaged.
