Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Split Line of the Upper & Lower Crankcases
    GM315123Courtesy of GENERAL MOTORS CORP.
  1. Place a small amount of sealant at the split line of the upper and lower crankcases (1). Refer to Sealers, Adhesives, and Lubricants for the correct part number.
    2. Fig 2: View of Engine Front Cover Bolts
    GM315077Courtesy of GENERAL MOTORS CORP.
  2. Place the engine front cover gasket over the crankcase dowel pins.
  3. Place the engine front cover in position on the crankcase.
  4. Apply threadlock to the engine front cover bolts. Refer to Sealers, Adhesives, and Lubricants for the correct part number.
  5. Install the engine front cover bolts until snug.

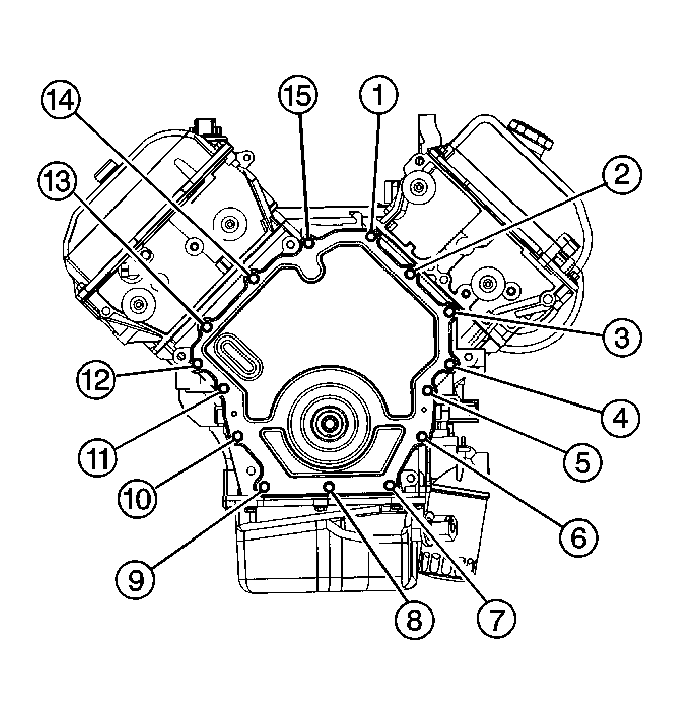

    6. Fig 3: Identifying Engine Front Cover Bolts
    GM315109Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  6. Tighten the engine front cover bolts.

    Tighten:  Tighten the bolts in the sequence to 10 N.m (89 lb in).

  7. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  8. Install the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
