Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

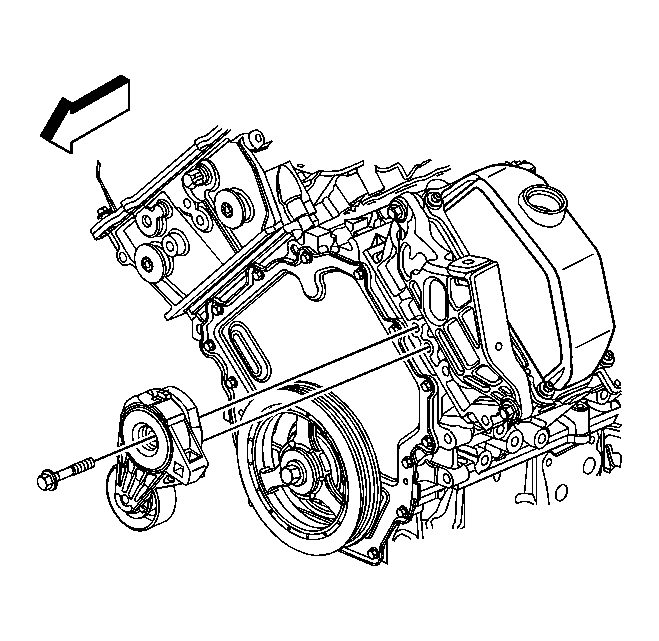

    Fig 1: View Of Drive Belt Tensioner
    GM1660276Courtesy of GENERAL MOTORS CORP.
  1. Position the drive belt tensioner to the left cylinder head. Ensure the anti-rotation pin is in the hole.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt tensioner bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
  4. Install new seal. Connect the A/C compressor suction hose to the A/C evaporator hose.
  5. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  6. Install the right engine mount strut. Refer to Engine Mount Strut Replacement - Right Side .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
