Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

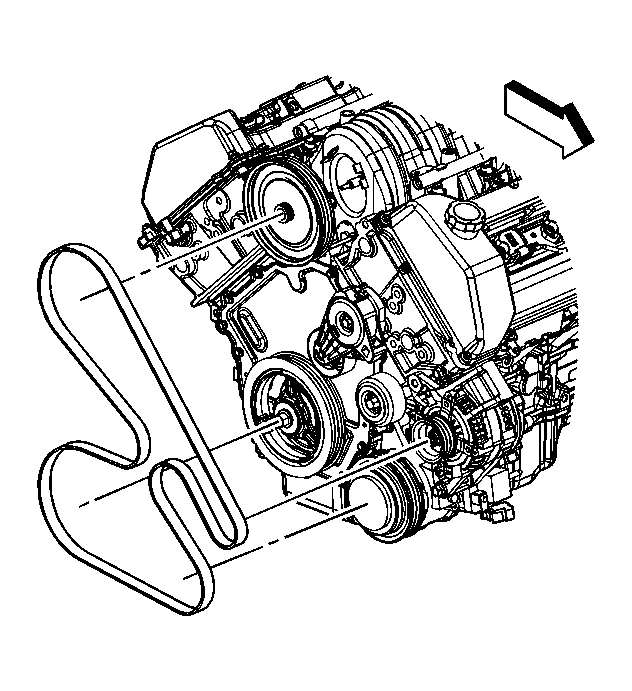

    Fig 1: Drive Belt Routing
    GM1660275Courtesy of GENERAL MOTORS CORP.
  1. Route the drive belt around all the pulleys except for the power steering pump.
  2. Lower the vehicle.
  3. Install a 1/2 inch drive breaker bar to the drive belt tensioner.
  4. Push down on the breaker bar in order to release the tension and route the belt around the power steering pump pulley.

    Ensure the belt is seated on all pulleys.

  5. Slowly return the tensioner to its original position.
  6. After drive belt installation, inspect the drive belt for the proper routing and correct alignment.
  7. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  8. Start the engine and check for proper belt and accessory operation.
