Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

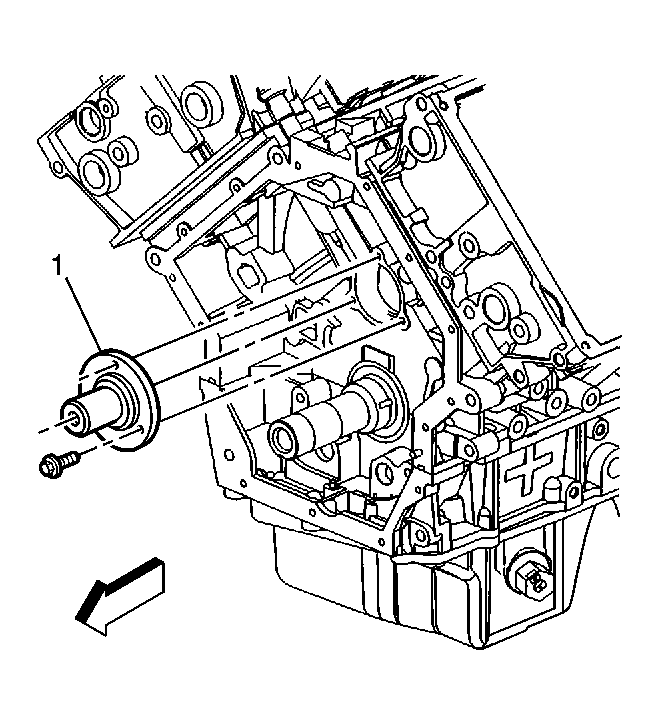

    Fig 1: Identifying Camshaft Intermediate Driveshaft
    GM207544Courtesy of GENERAL MOTORS CORP.
  1. Position the camshaft intermediate drive shaft (1) to the engine, aligning the bolt holes.
    2. NOTE: Refer to Fastener Notice .
  2. Install the camshaft intermediate drive shaft retaining bolts.

    Tighten:  Tighten the camshaft intermediate drive shaft retaining bolts to 15 N.m (11 lb ft).

  3. Install the camshaft intermediate drive shaft sprocket. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .
