Outside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

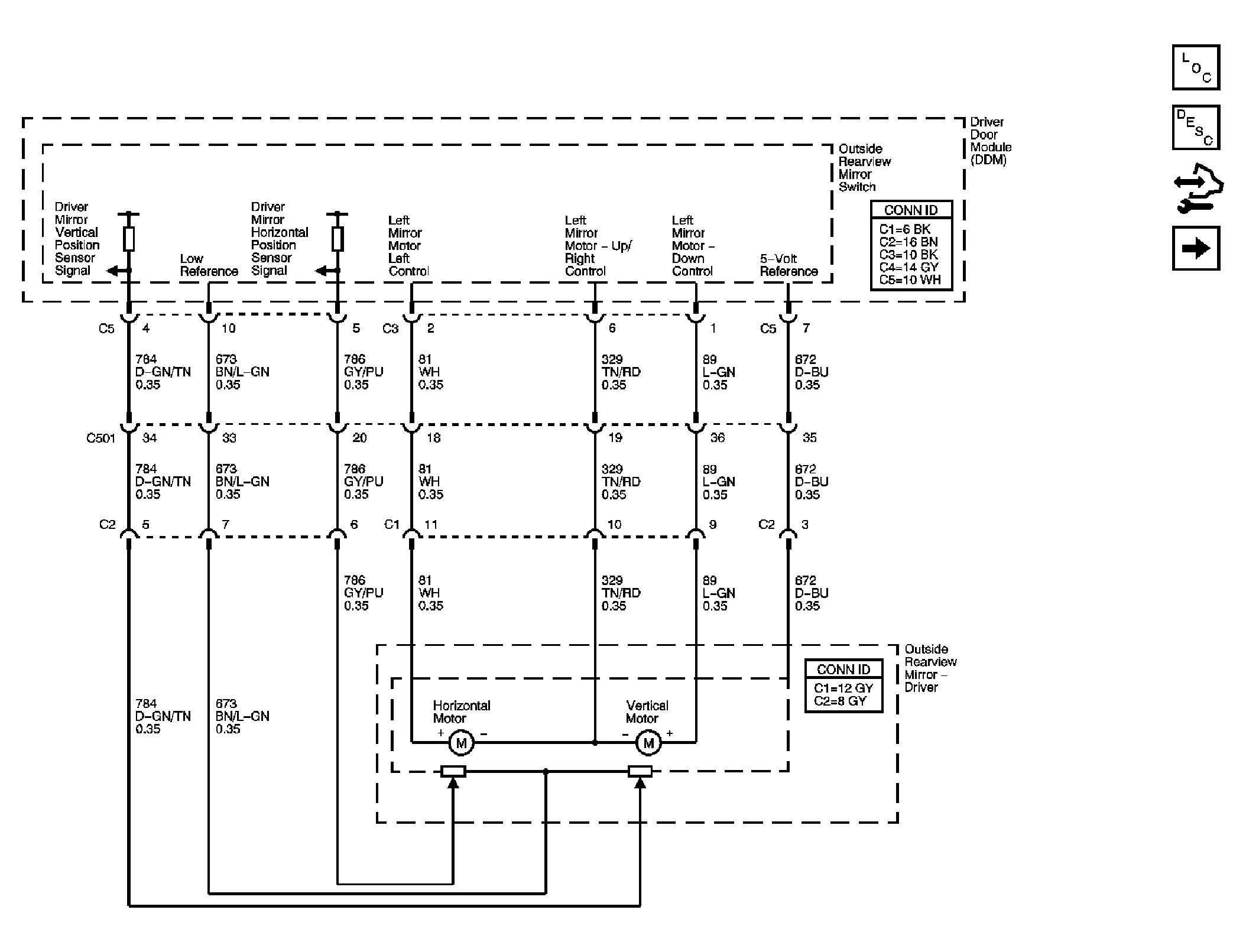

Fig 1: Driver Outside Rearview Mirror Schematics

Courtesy of GENERAL MOTORS CORP.

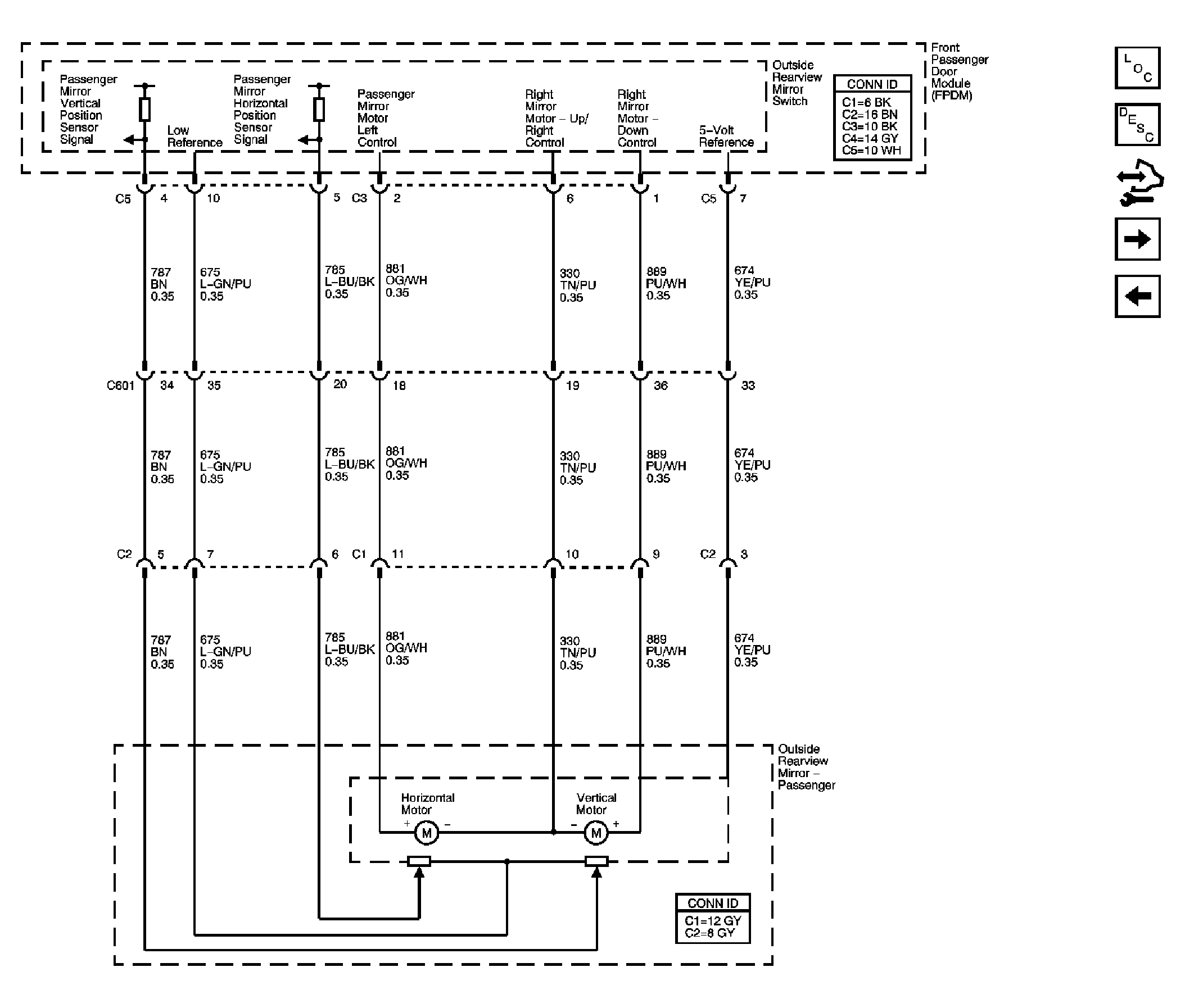

Fig 2: Passenger Outside Rearview Mirror Schematics

Courtesy of GENERAL MOTORS CORP.

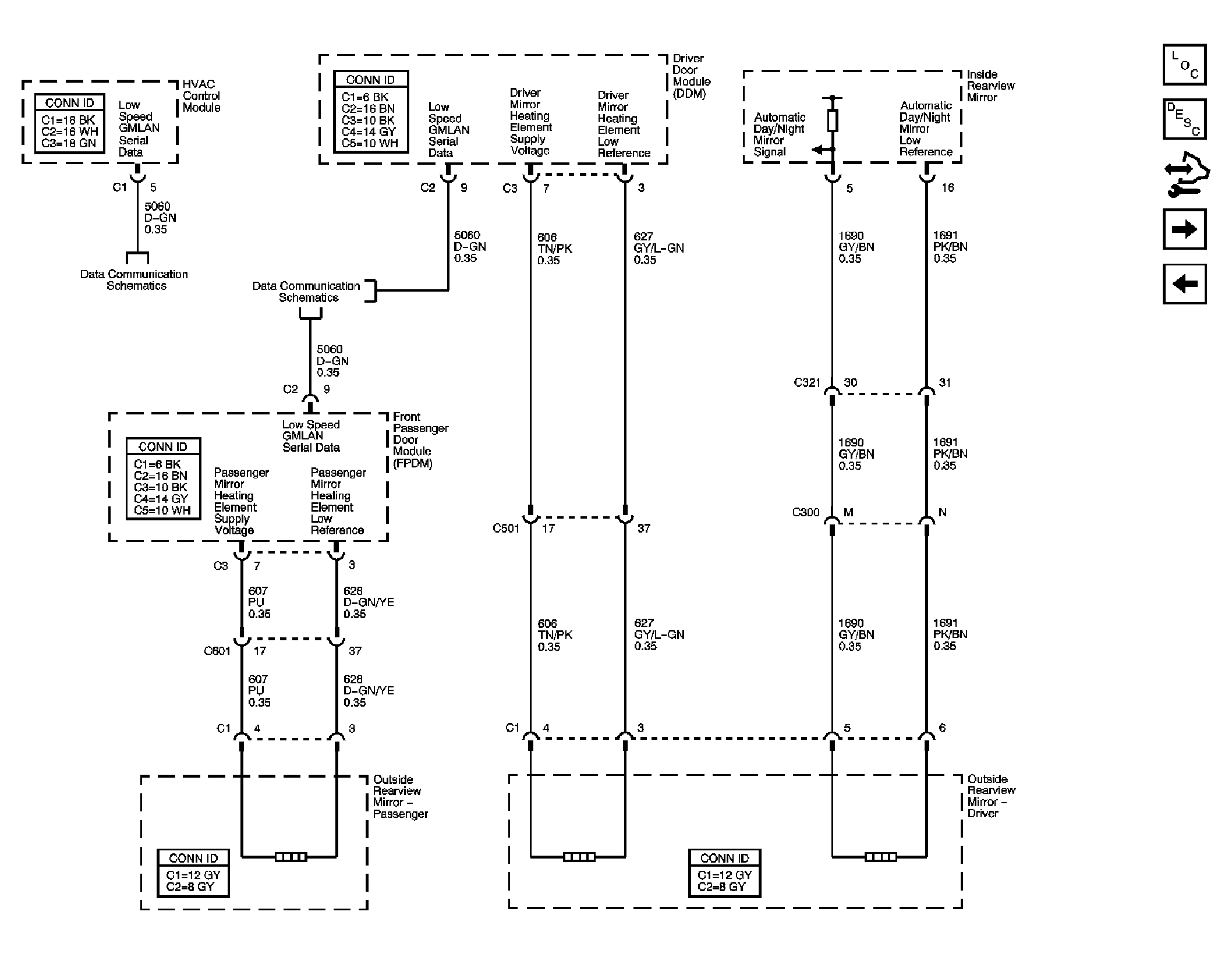

Fig 3: Heated Mirrors w/DR2 Schematics

Courtesy of GENERAL MOTORS CORP.

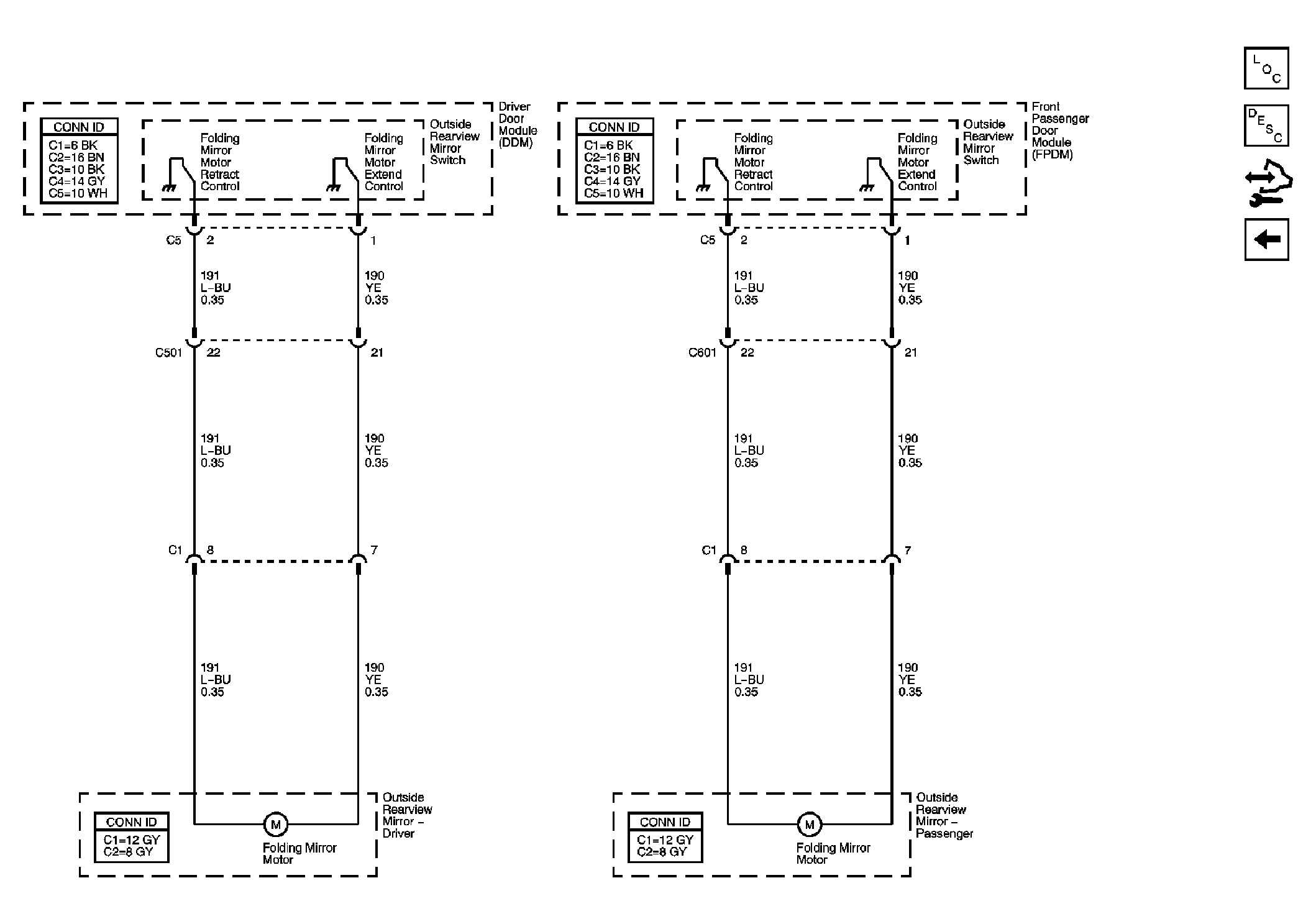

Fig 4: Folding Mirrors w/DL3 Schematics

Courtesy of GENERAL MOTORS CORP.
