Inside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

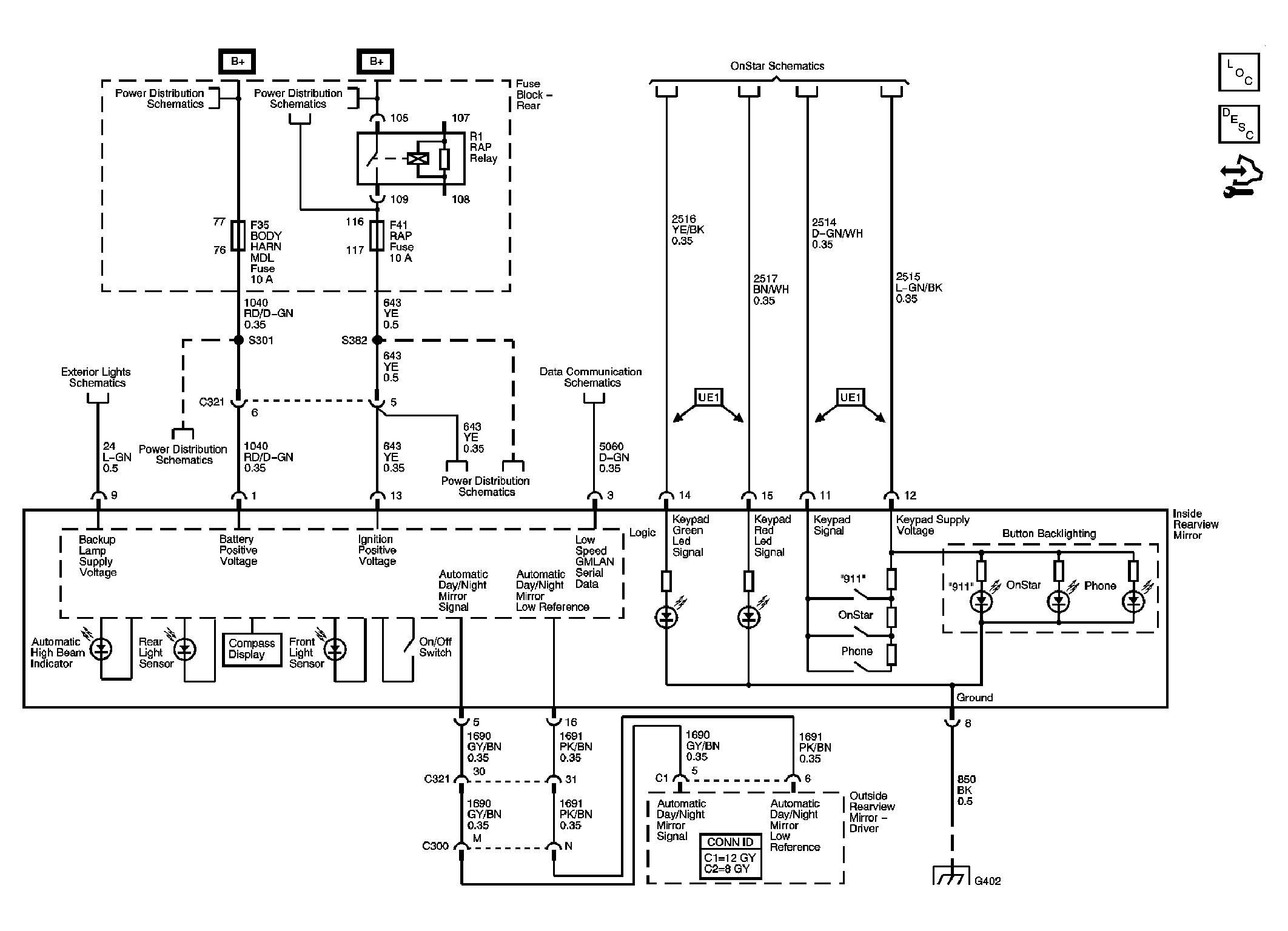

Fig 1: Inside Rearview Mirror Schematics
GM1759507Courtesy of GENERAL MOTORS CORP.
