Rear Compartment Lid Latch Striker Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

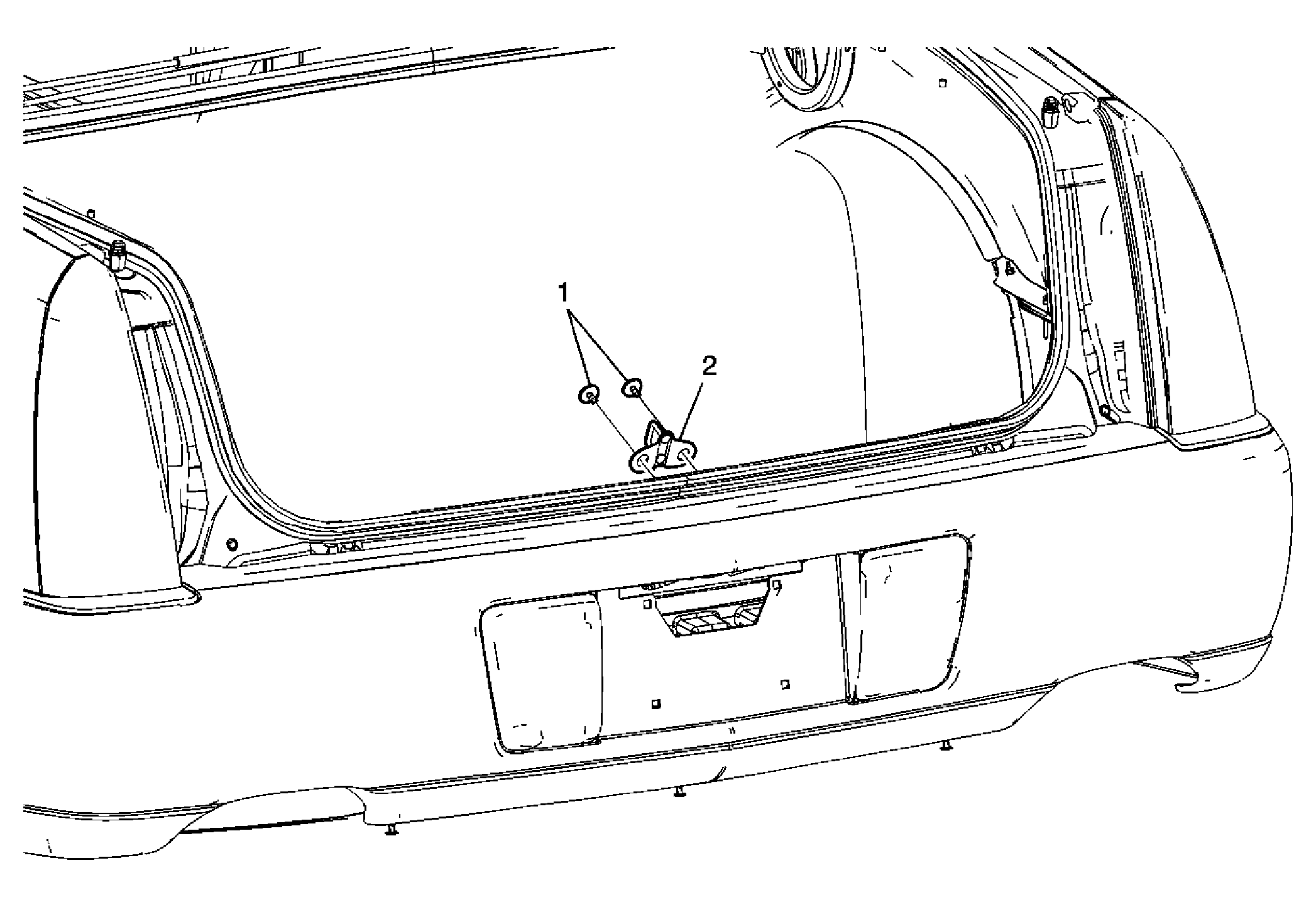

Fig 1: Lock Striker Replacement - Rear Compartment Lid
GM1584144Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Latch Striker Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolts, Latch Striker (Qty: 2)

Tighten:  25 N.m (19 lb ft)
2 Latch Striker, Rear Compartment Lid
