Rear Compartment Lid Latch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

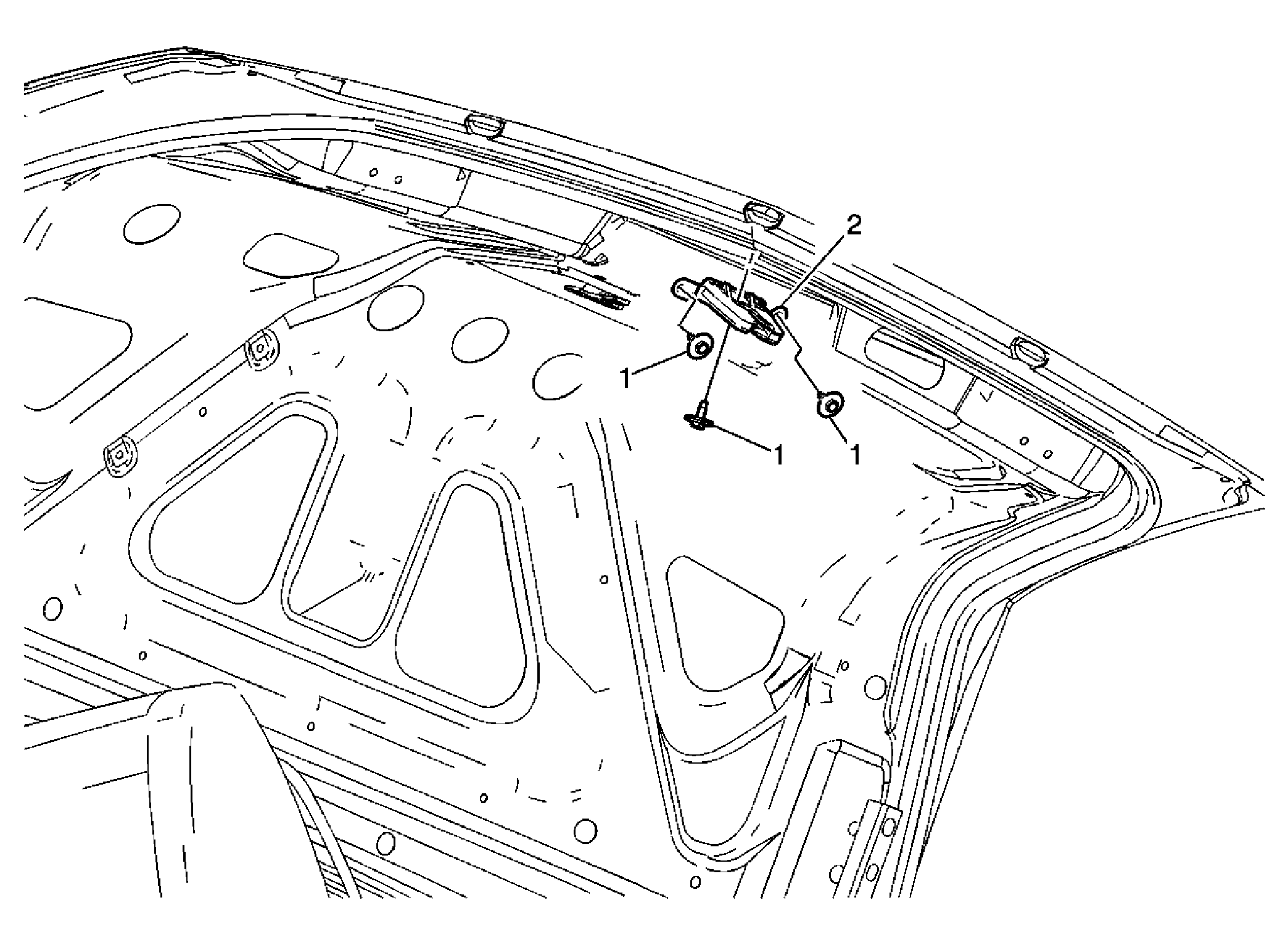

Fig 1: Latch Replacement - Rear Compartment Lid
GM1583906Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolts, Rear Compartment Latch (Qty: 3)

Tighten:  10 N.m (89 lb in)
2 Latch, Rear Compartment
Tip:  Disconnect electrical connection.
