Door Lock and Side Window Switch Replacement - Driver Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

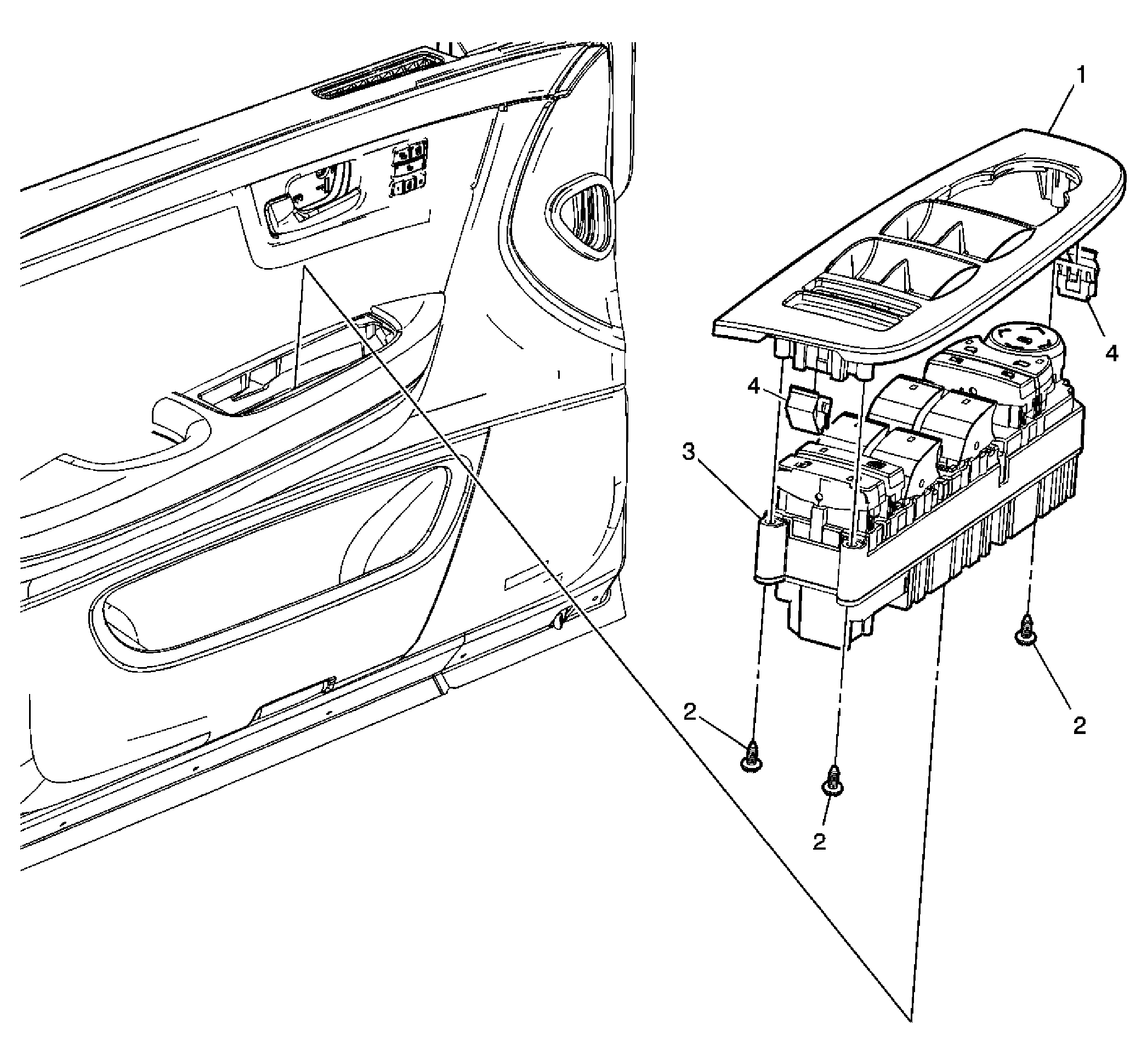

Fig 1: Mirror, Window, and Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Door Armrest Switch Mount Plate Procedure Use a flat-trim tool to pry up on the switch assembly. Disconnect the electrical connectors.
2	Side Door Armrest Switch Mount Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten 2 N.m (18 lb in)
3	Door Lock and Side Window Switch Assembly Refer to Control Module References for replacement and setup information.
4	Side Door Armrest Switch Mount Clip
