Starting and Charging Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

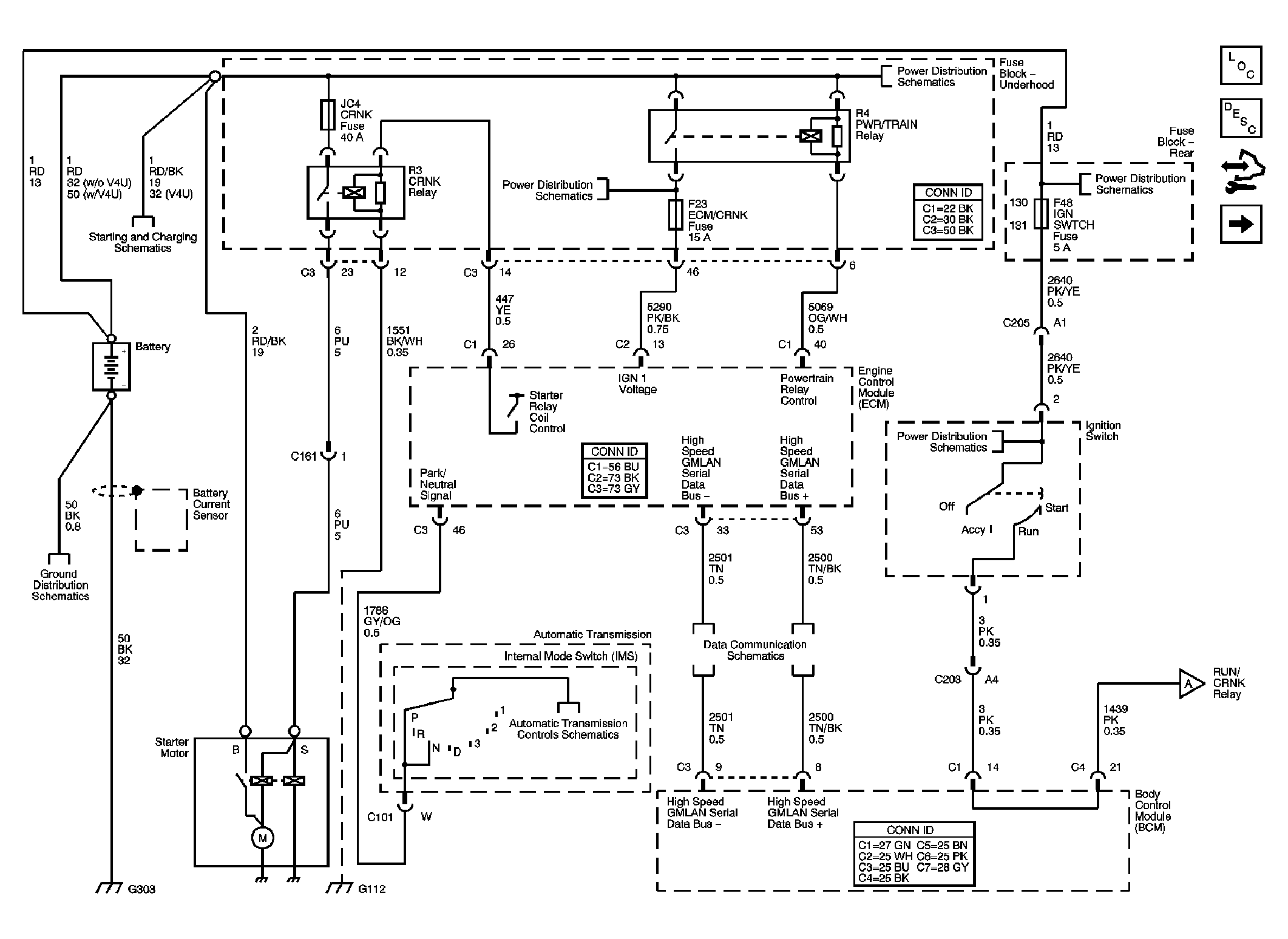

Fig 1: Starting Schematics 1 of 2
GM1758523Courtesy of GENERAL MOTORS CORP.
Fig 2: Starting Schematics 2 of 2
GM1758526Courtesy of GENERAL MOTORS CORP.

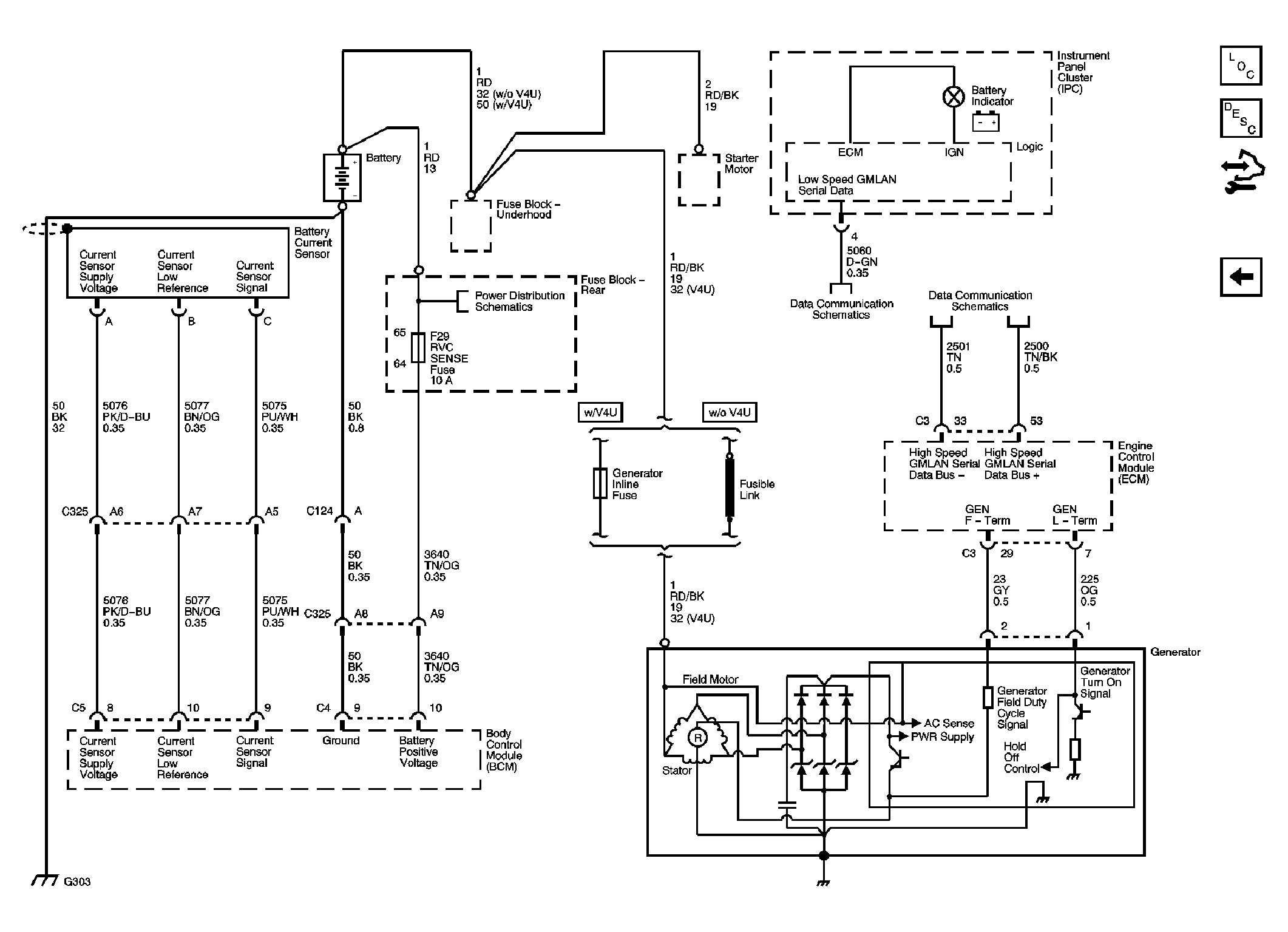

Fig 3: Charging Schematics
GM1758527Courtesy of GENERAL MOTORS CORP.
