Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

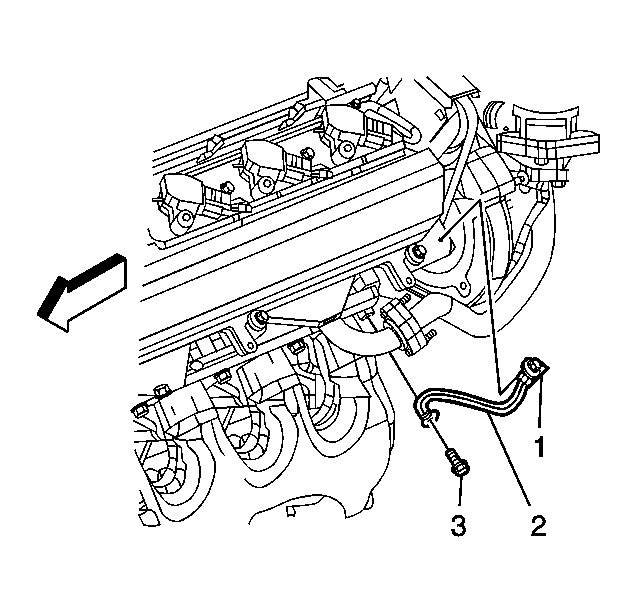

    Fig 1: Identifying ICM Wiring Harness Ground
    GM1662856Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector sight shield, if necessary. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove the ignition control module (ICM) ground strap bolt (3) from the cylinder head.
  3. Loosen the ICM ground strap bolt (1) from the camshaft cover.
  4. Remove the ICM ground strap (2).

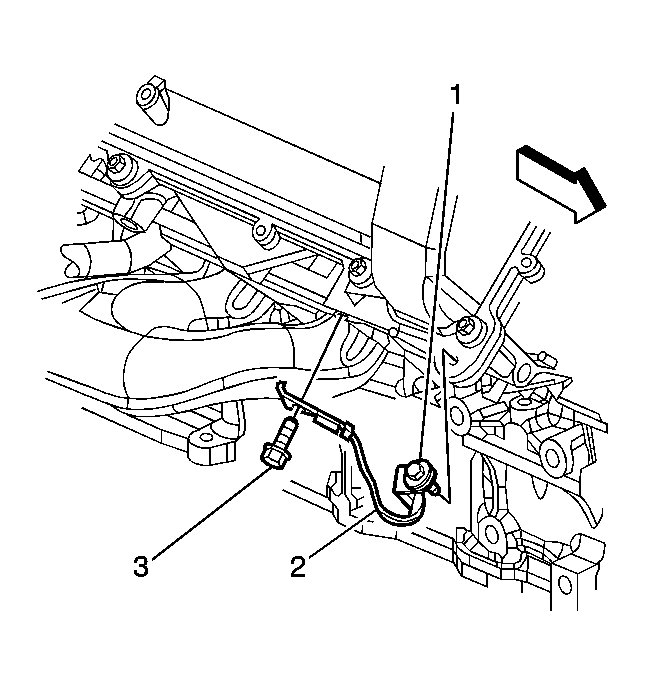

    5. Fig 2: Locating ICM Ground Strap & Bolt
    GM1662923Courtesy of GENERAL MOTORS CORP.
  5. Remove the ICM ground strap bolt (3) from the cylinder head.
  6. Loosen the ICM ground strap bolt (1) from the camshaft cover.
  7. Remove the ICM ground strap (2).
