Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing/Installing Positive Battery Cable Cover
    GM1669909Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Unsnap the positive battery cable cover (3), and reposition.
  3. Loosen the positive battery cable bolt (1).
  4. Separate the positive battery cable (2) from the battery.
    5. Fig 2: Battery Vent Tube
    GM1669924Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery vent tube from the battery.

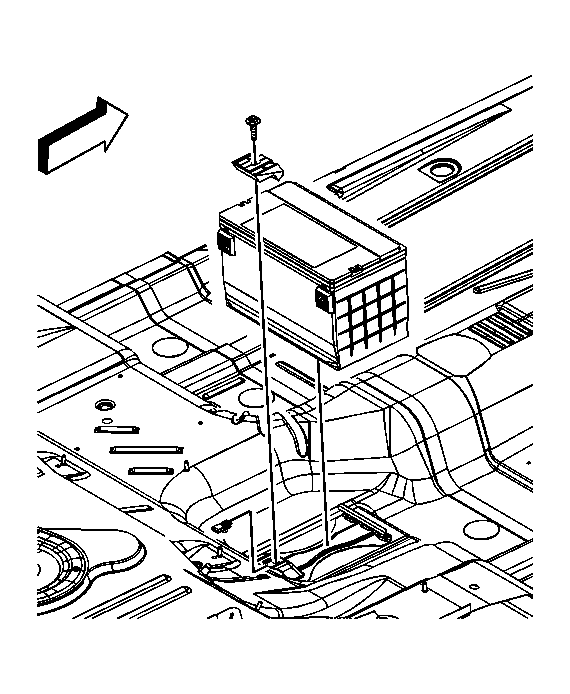

    6. Fig 3: Removing/Installing Battery Hold Down
    GM1669926Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery hold down bolt and hold down.
  7. Remove the battery.
