Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
  • Always route the replacement cable the same way as the original cable.

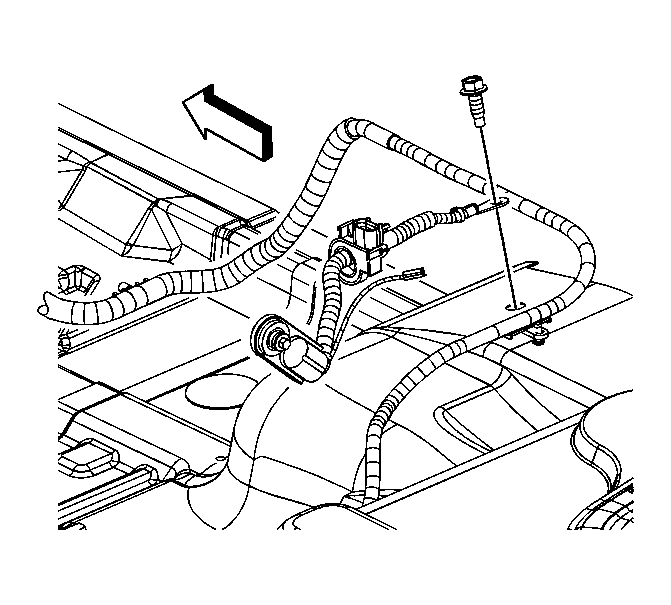

    Fig 1: Removing/Installing Negative Battery Cable
    GM1669905Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the body harness electrical connector from the negative battery cable electrical connector.
  3. Disconnect the body harness electrical connector from the battery current sensor.
  4. Remove the negative battery cable ground bolt.
  5. Remove the negative battery cable.
