Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Clean any existing oxidation from the contact face of the battery and battery cable using a wire brush prior to installing the battery cable to the battery.

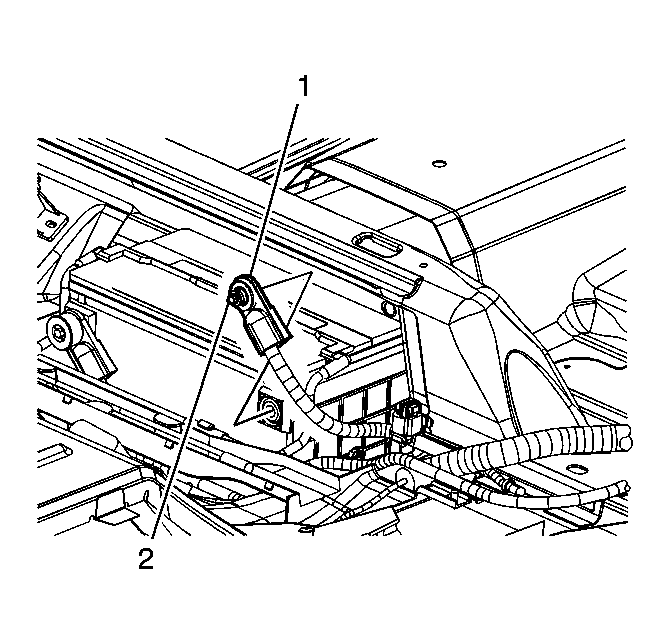

    Fig 1: Locating Battery
    GM1669904Courtesy of GENERAL MOTORS CORP.
  1. Position the negative battery cable (1) to the battery.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the negative battery cable bolt (2).

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

  3. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
