Front Tow Hook Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

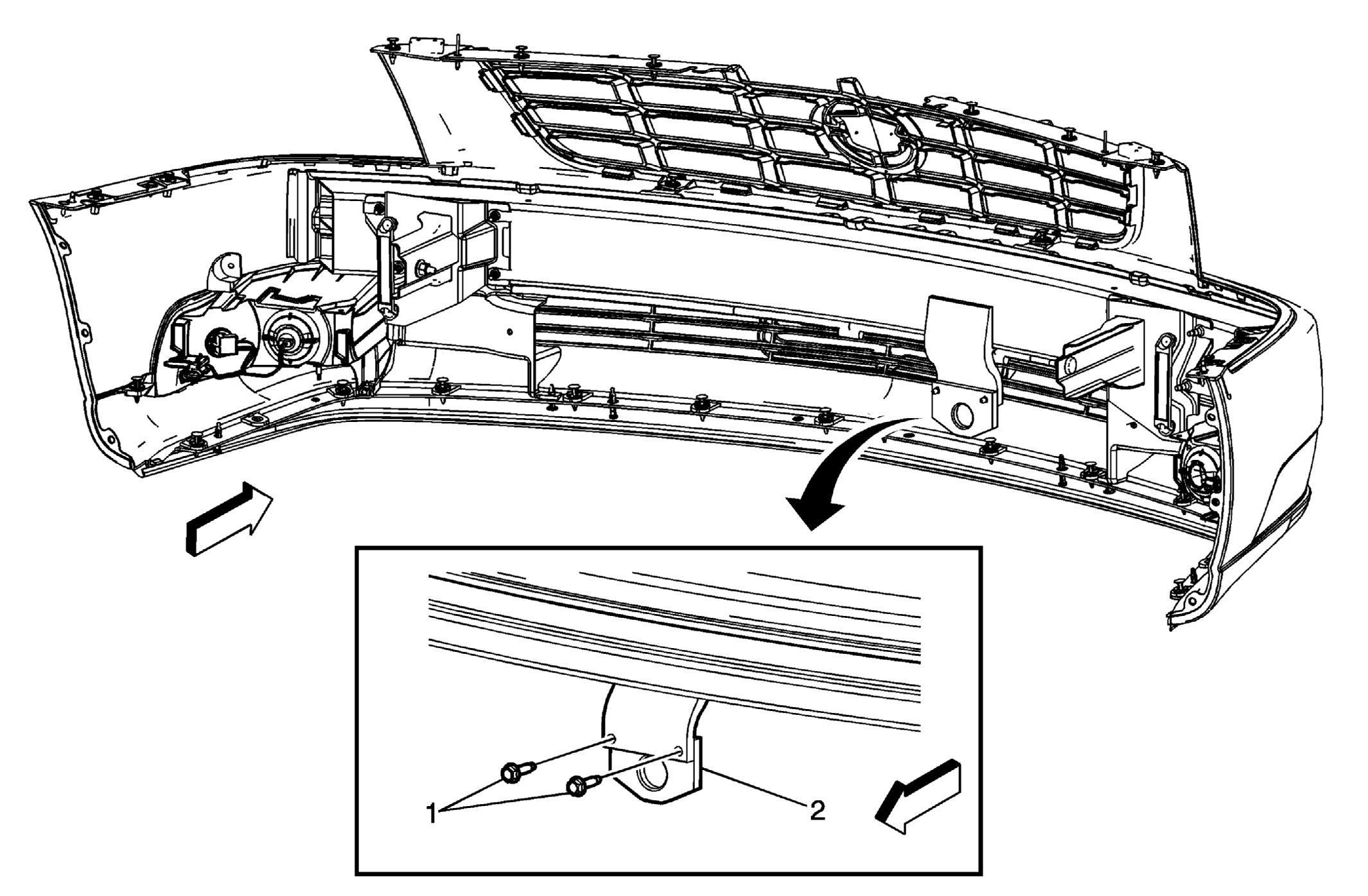

Fig 1: Front Tow Hook
GM1758694Courtesy of GENERAL MOTORS CORP.
Front Tow Hook Replacement

Callout Component Name
1 Front Tie Down Loop Bolts (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  20 N.m (15 lb ft)
2 Front Tie Down Loop
