Rear Side Door Front Auxiliary Weatherstrip Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

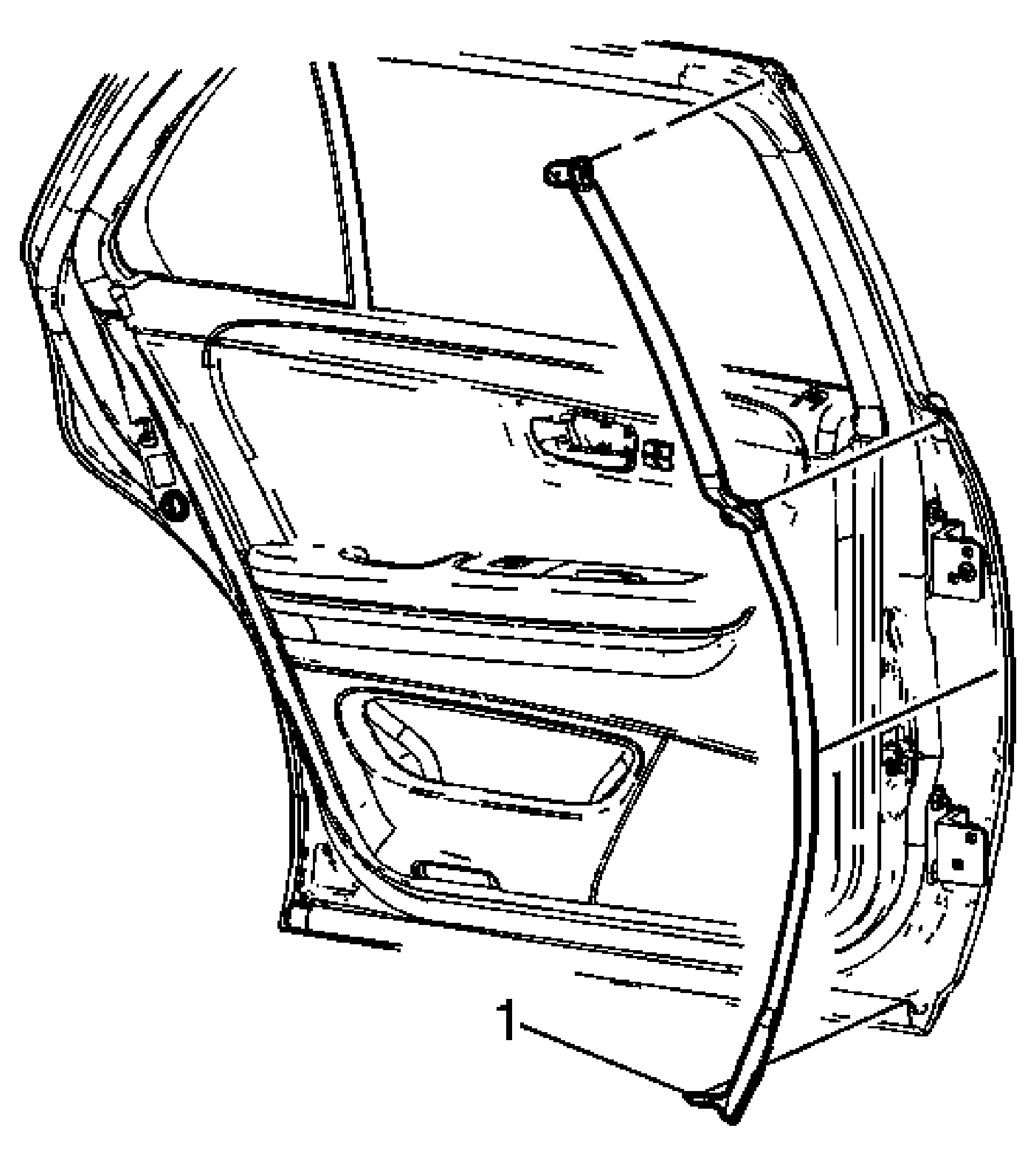

Fig 1: Sealing Strip Replacement - Rear Door Front Auxiliary
GM1586748Courtesy of GENERAL MOTORS CORP.
Rear Side Door Front Auxiliary Weatherstrip Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Sealing Strip, Rear Door Front Auxiliary
Tip:  Carefully pull the sealing strip away from the rear door. Use a plastic flat-bladed tool to release the push-in retainers, if necessary.
