Rear Side Door Check Link Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

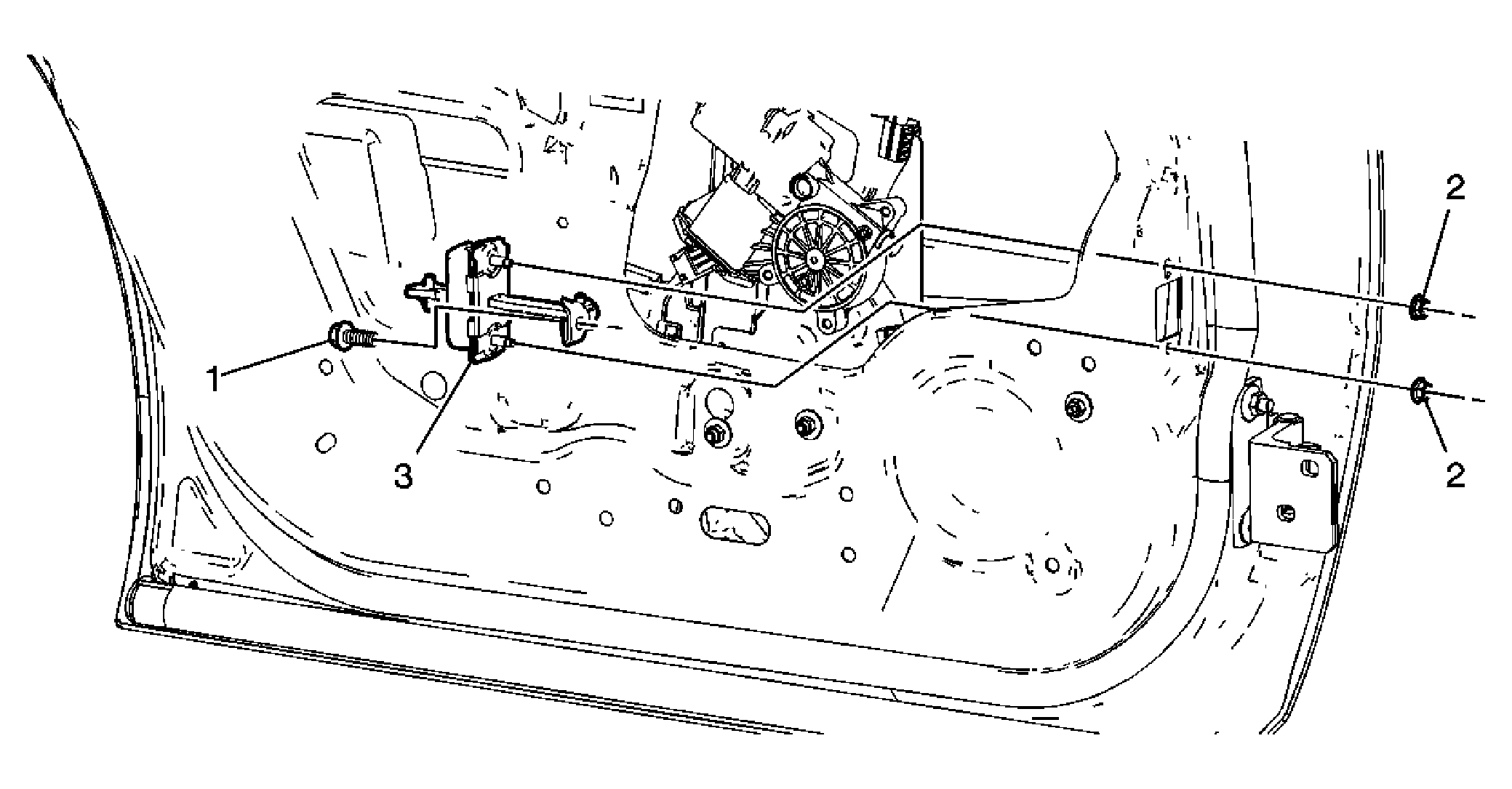

Fig 1: Door Check Link Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Bolt, Rear Side Door Check Link Tighten: 25 N.m (18 lb in)
2	Nut, Rear Side Door Check Link (Qty: 2) Tighten: 9 N.m (80 lb in)
3	Link Assembly, Rear Side Door Check Tip: Remove the check link from the inside of the door.
