Rear Door Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

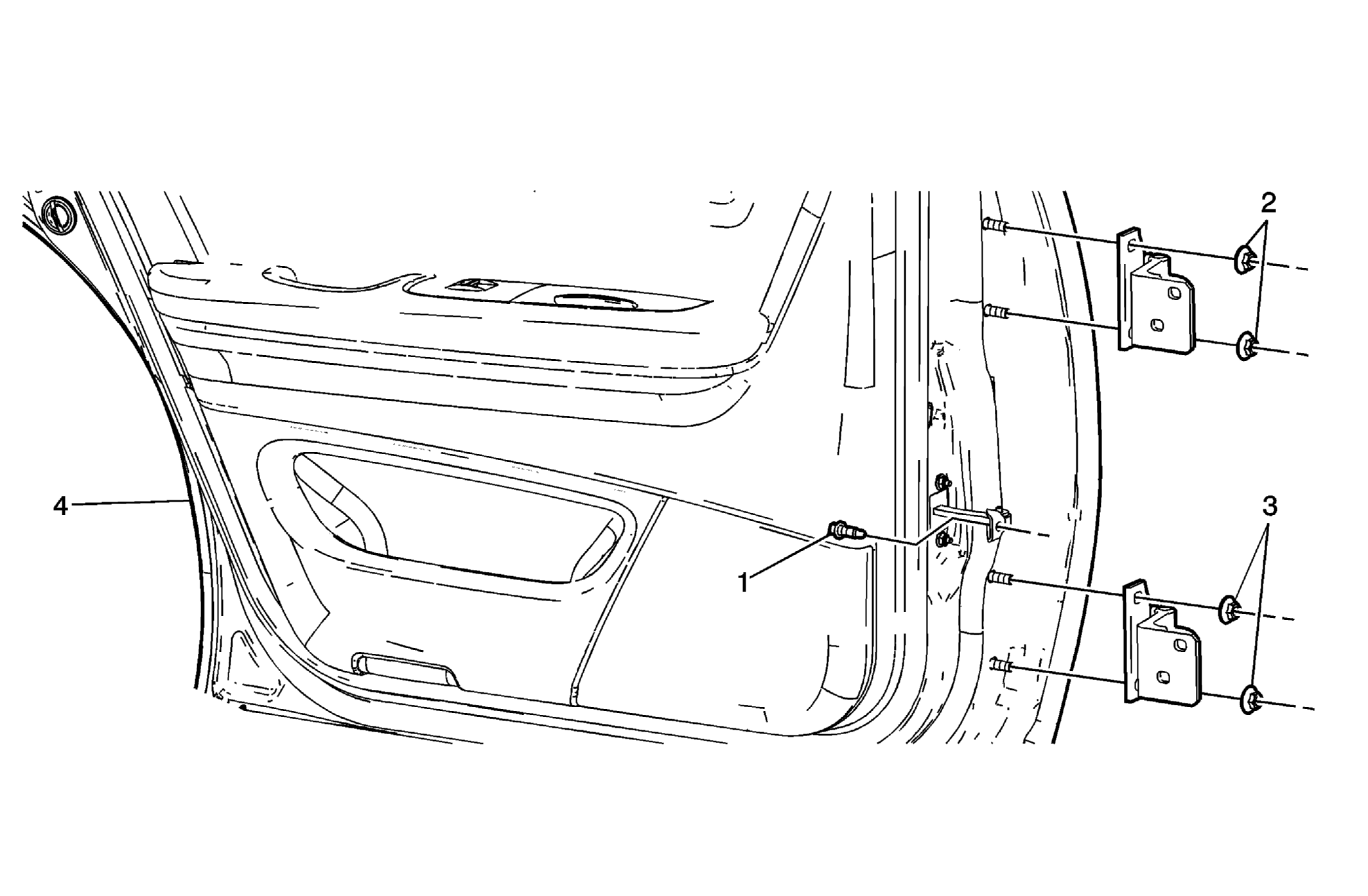

Fig 1: Door Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Rear Side Door Check Link Tighten: 25 N.m (18 lb ft)
2	Nut, Rear Side Door Upper Hinge (Qty: 2) Tip: Support the door before removing the hinge nuts. Disconnect the door electrical connector. Tighten: 26 N.m (19 lb ft)
3	Nut, Rear Side Door Lower Hinge (Qty: 2) Tighten: 26 N.m (19 lb ft)
4	Door Assembly, Rear Side Tip: When replacing the door it is necessary to transfer all of the internal components.
