Rear Compartment Liner Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

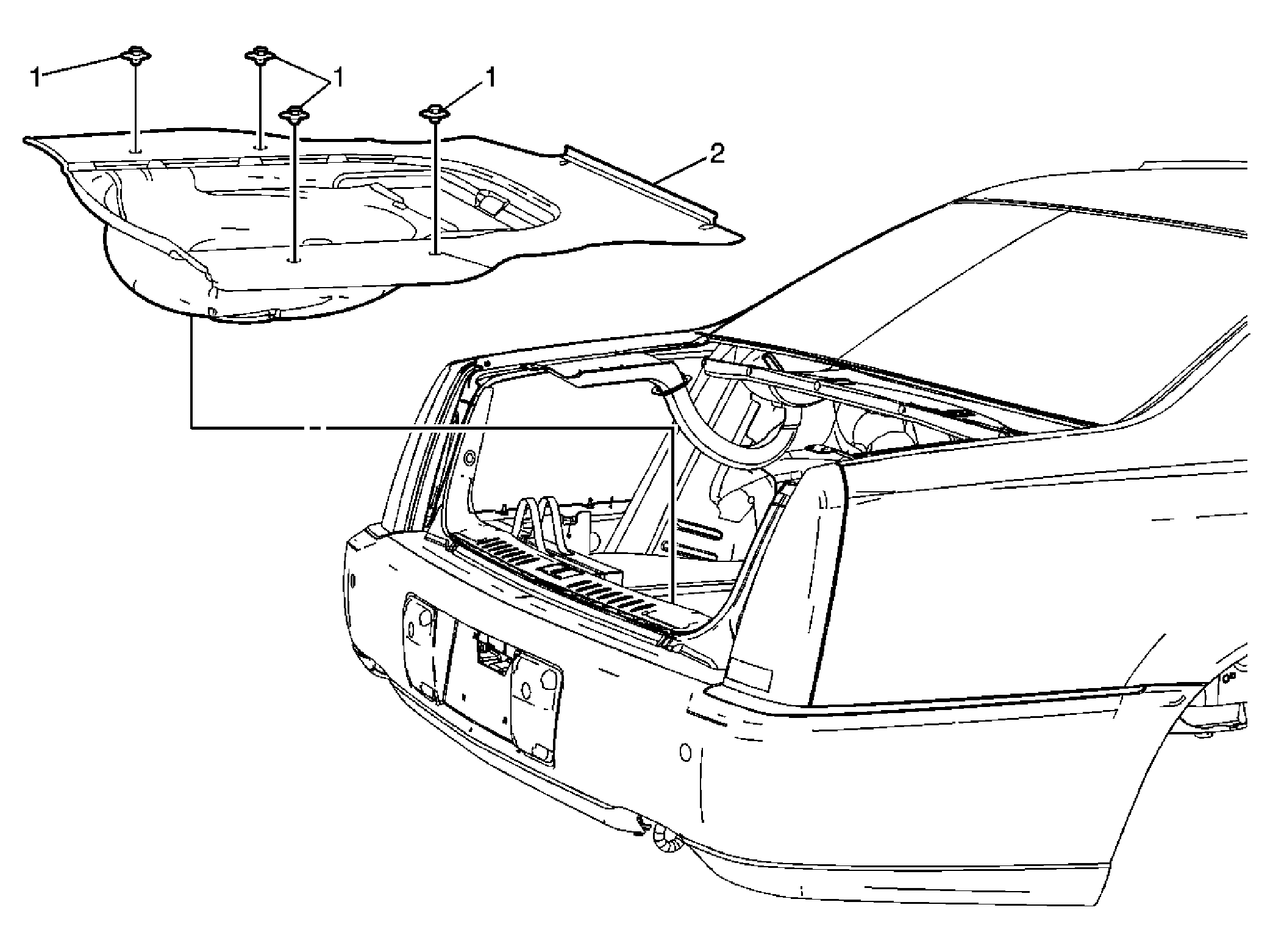

Fig 1: Rear Compartment Liner Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . Remove the LH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side . Remove the RH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side . Remove the compartment front trim panel. Refer to Rear Compartment Front Trim Panel Replacement .
1	Rear Compartment Push-In Retainers (Qty: 4)
2	Rear Compartment Liner Tip: Remove the spare tire.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement .
Remove the LH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side .
Remove the RH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side .
Remove the compartment front trim panel. Refer to Rear Compartment Front Trim Panel Replacement .

Rear Compartment Push-In Retainers (Qty: 4)

Rear Compartment Liner
Tip: Remove the spare tire.
