Rear Compartment Lid Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

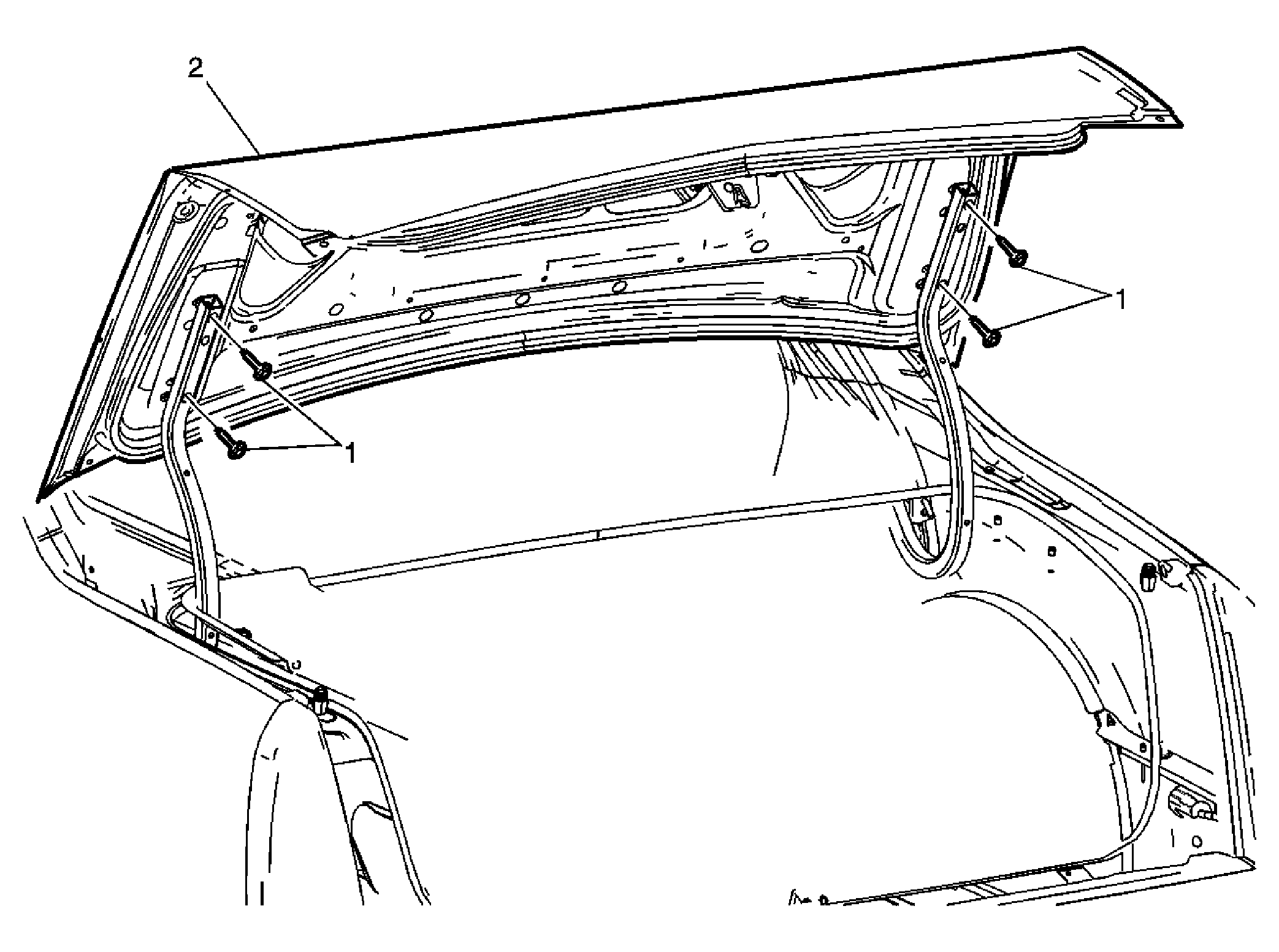

Fig 1: Compartment Lid Replacement - Rear
GM1583854Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolts, Rear Compartment Lid (Qty: 4)

Tighten:  25 N.m (19 lb ft)
2 Lid, Rear Compartment
Tip:  Disconnect latch electrical connector.
