Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.

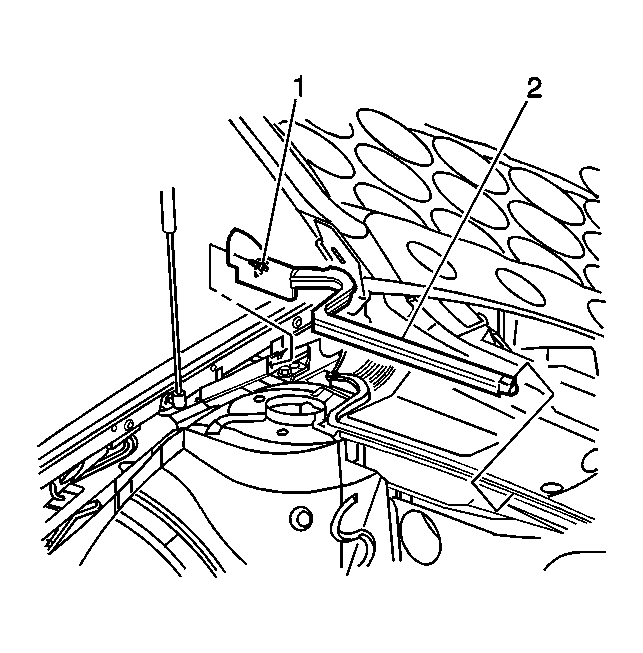

    2. Fig 1: View Of Rear Hood Seal & Push In Retainers
    GM457415Courtesy of GENERAL MOTORS CORP.
  2. Remove the push in retainers (1) securing the outer end of each rear hood seal (2) to the vehicle.
    3. Fig 2: View Of Rear Hood Seal Flange
    GM324722Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear hood seal (1) by peeling it from the flange (2).
