Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood

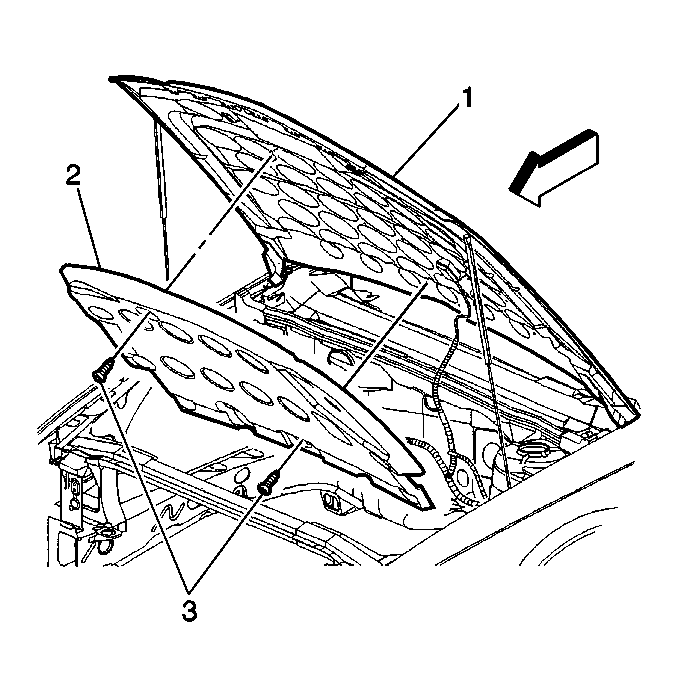

    2. Fig 1: View Of Hood, Hood Insulator & Push In Retainers
    GM457395Courtesy of GENERAL MOTORS CORP.
  2. Remove the push in retainers (3) securing the hood insulator (2) to the hood (1).
  3. Remove the hood insulator (2) from the hood (1).
