Fuel Tank Filler Door Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

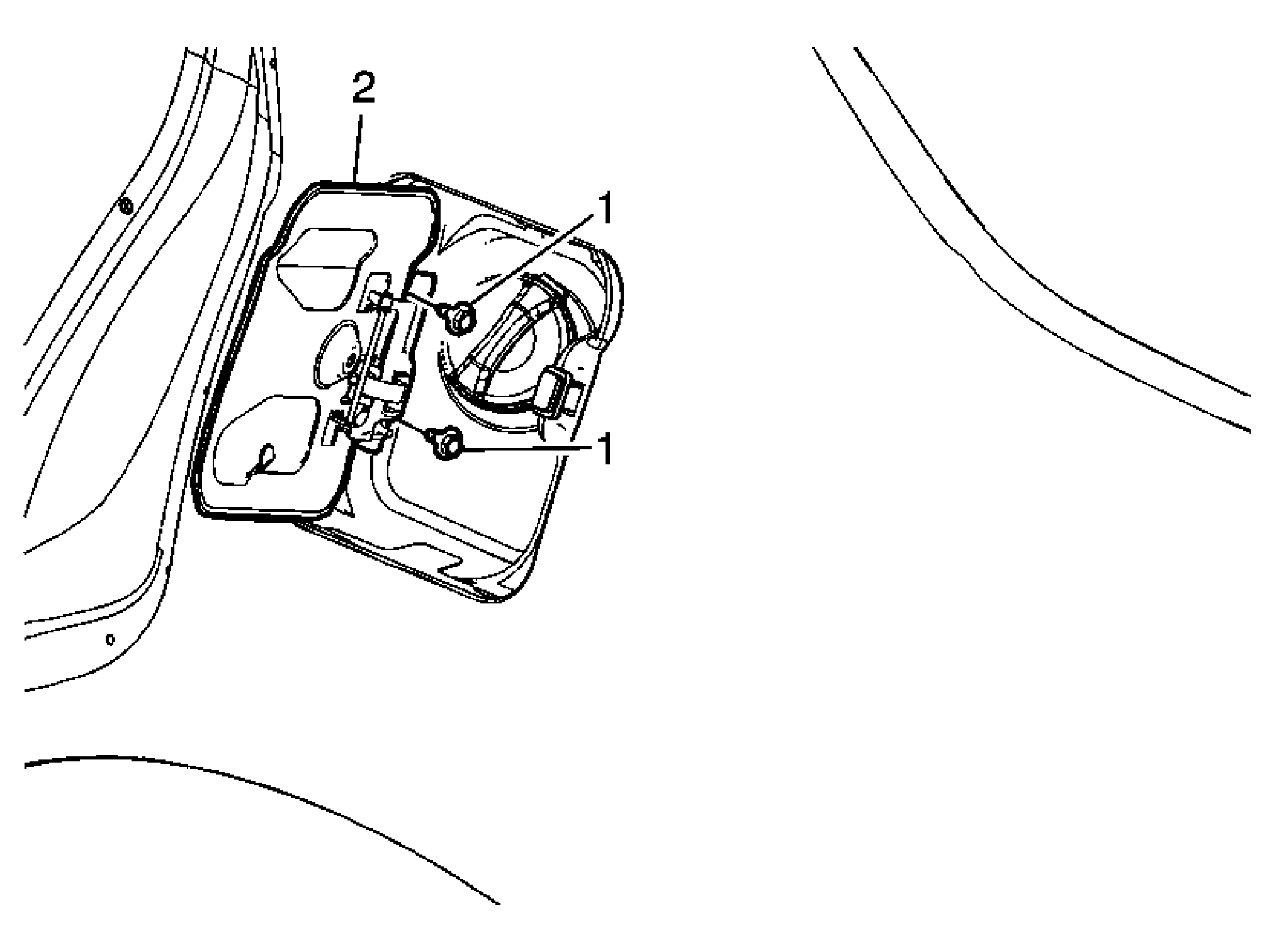

Fig 1: Fuel Filler Door Replacement
GM1584728Courtesy of GENERAL MOTORS CORP.
Fuel Tank Filler Door Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Fuel Door Bolts (Qty: 2)

Tighten:  10 N.m (89 lb in)
2 Fuel Door
