Front Side Door Weatherstrip Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

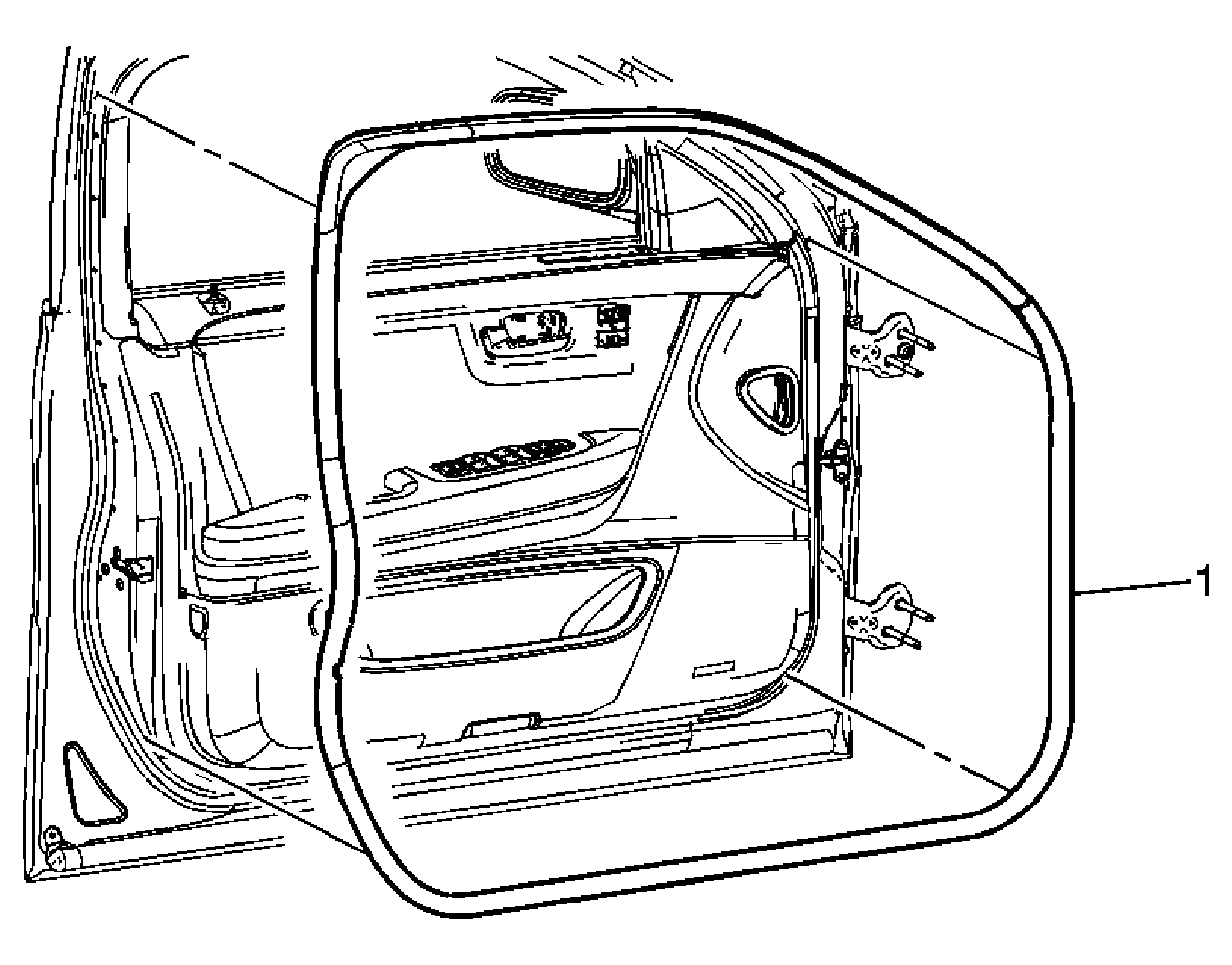

Fig 1: Weatherstrip Replacement - Front Door
GM1583299Courtesy of GENERAL MOTORS CORP.
Front Side Door Weatherstrip Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Weatherstrip, Front Door
Tip:  Carefully pull the weatherstrip away from the front door. Use a plastic flat-bladed tool to release the push-in retainers, if necessary.
