Front Side Door Hinge Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

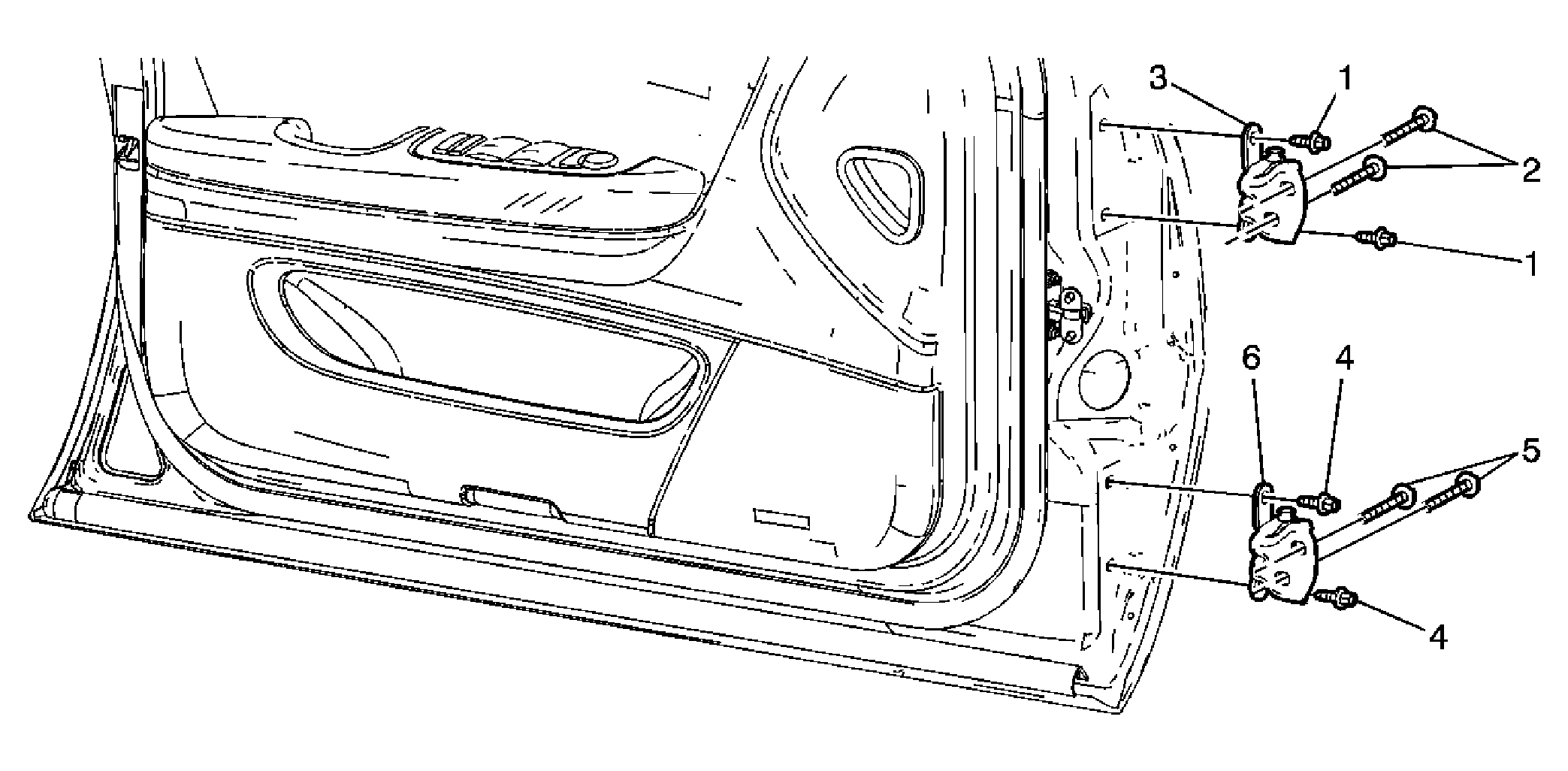

Fig 1: Hinge Replacement - Front Door
GM1583922Courtesy of GENERAL MOTORS CORP.
Front Side Door Hinge Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolt, Front Side Door Upper Hinge to Door (Qty: 2)
Tip:  Support door before removing hinge bolts.

Tighten:  34 N.m (25 lb ft)
2 Bolt, Front Side Door Upper Hinge to Body (Qty: 2)

Tighten:  34 N.m (25 lb ft)
3 Hinge, Front Side Door Upper
4 Bolt, Front Side Door Lower Hinge to Door (Qty: 2)

Tighten:  34 N.m (25 lb ft)
5 Bolt, Front Side Door Lower Hinge to Body (Qty: 2)

Tighten:  34 N.m (25 lb ft)
6 Hinge, Front Side Door Lower
