Front Side Door Bottom Auxiliary Sealing Strip Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

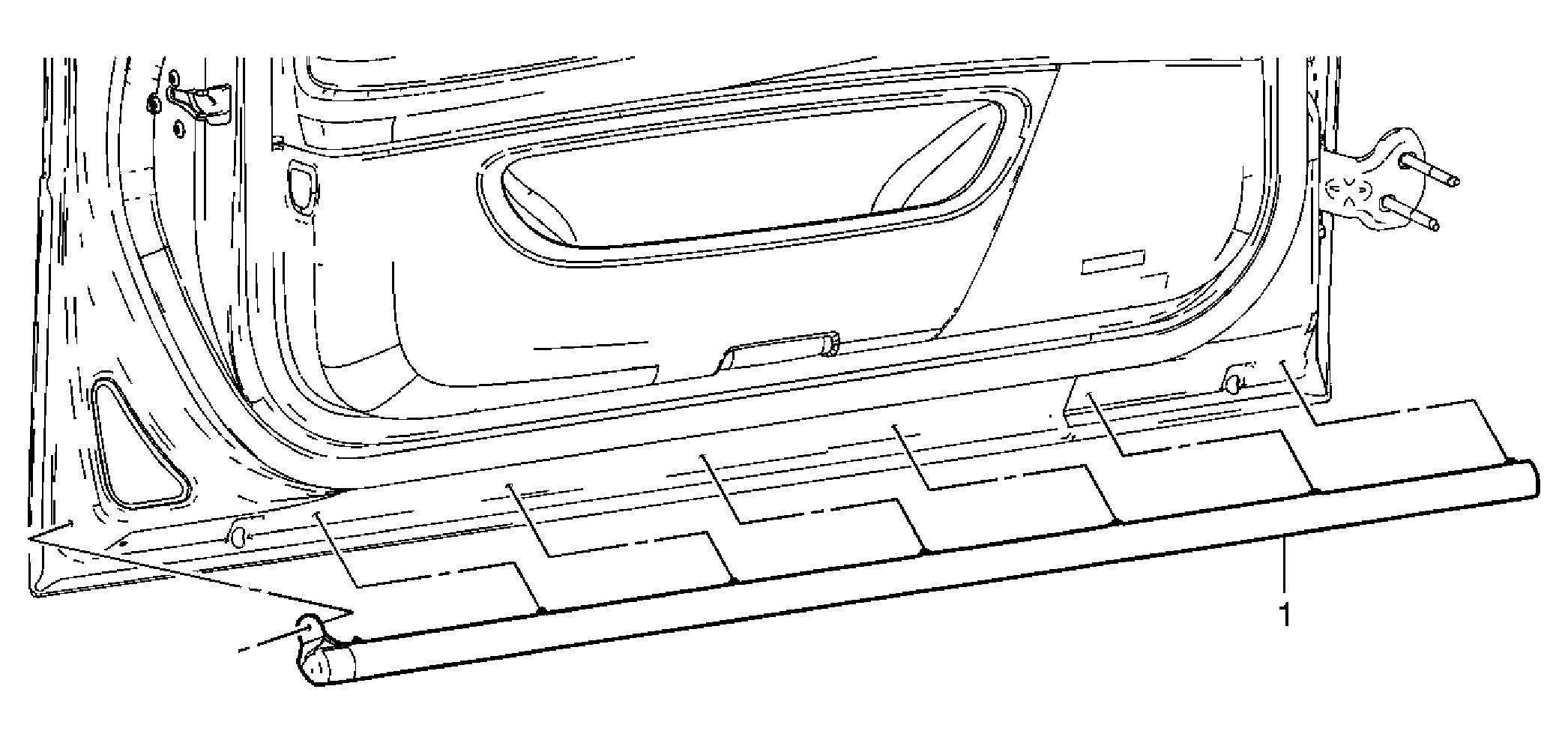

Fig 1: Sealing Strip Replacement - Front Door Bottom Auxiliary
GM1583924Courtesy of GENERAL MOTORS CORP.
Front Side Door Bottom Auxiliary Sealing Strip Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Sealing Strip, Front Door Bottom Auxiliary
Tip:  Use a plastic flat-bladed tool to release the push-in retainers from the door, if necessary.
