Moveable Window Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

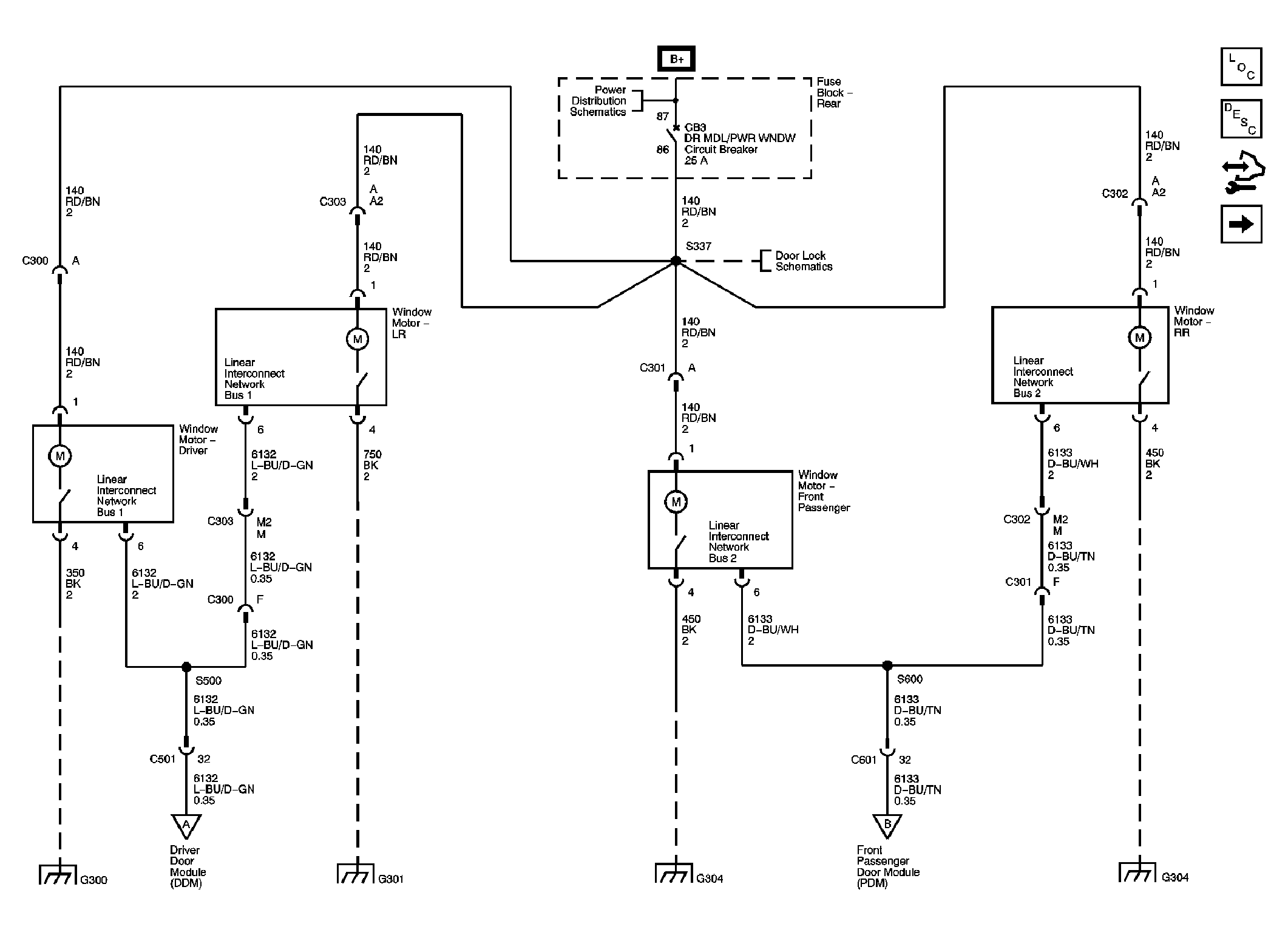

Fig 1: Window Motors Schematics
GM1758945Courtesy of GENERAL MOTORS CORP.

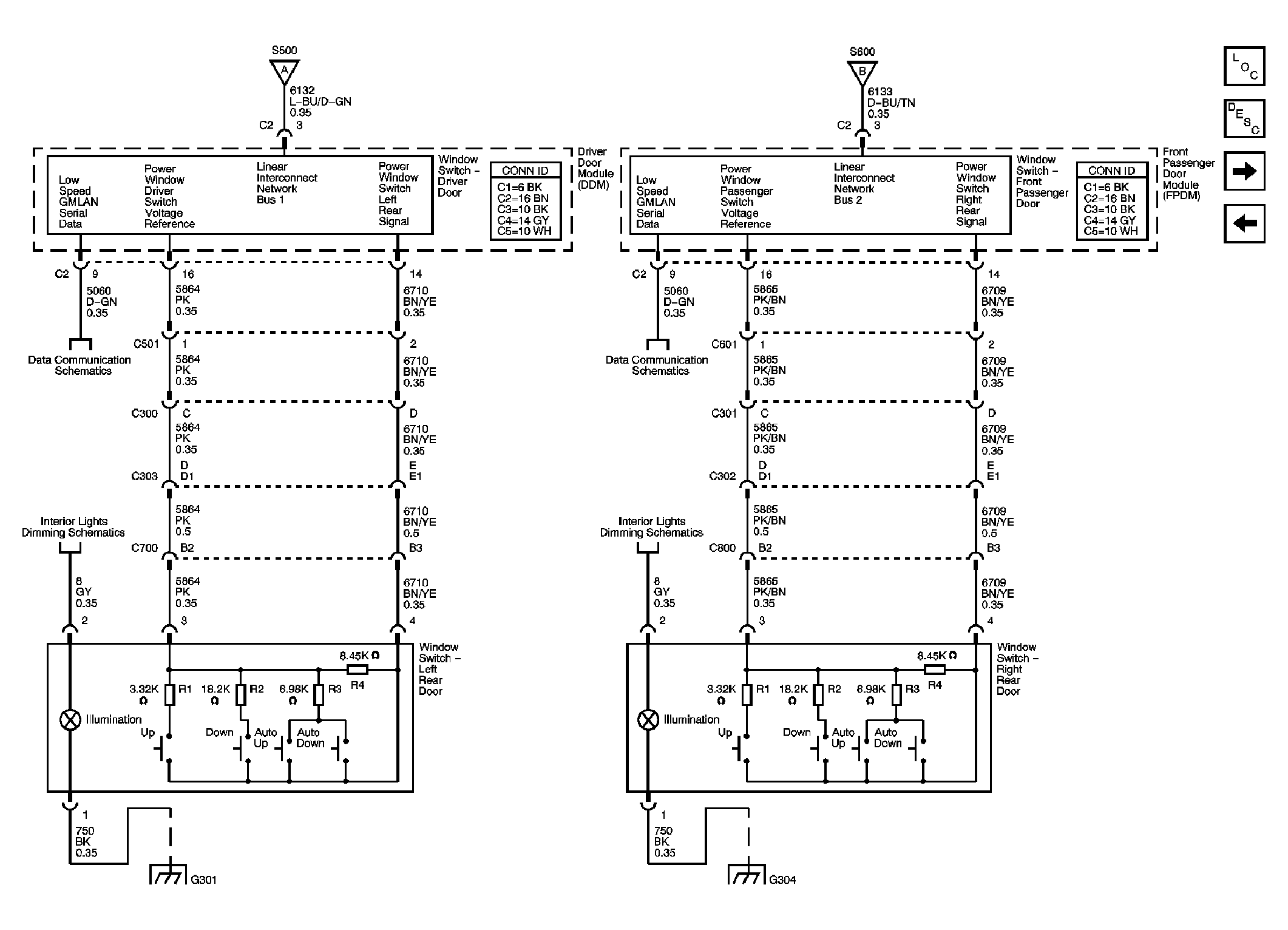

Fig 2: Window Switches Schematics
GM1758947Courtesy of GENERAL MOTORS CORP.
Fig 3: Upfitter Window Provisions - V4U Schematics
GM1758955Courtesy of GENERAL MOTORS CORP.
