Defogger Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

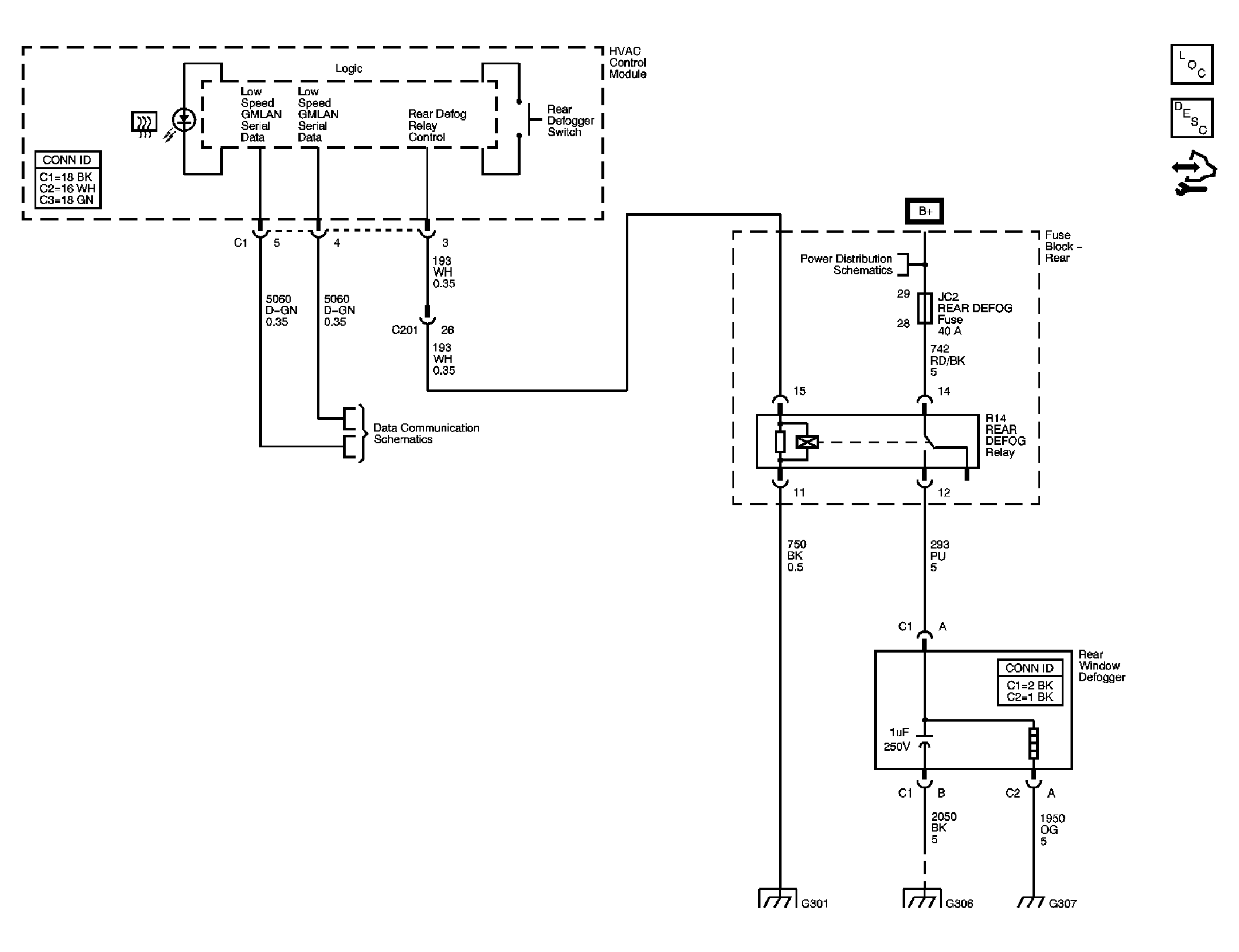

Fig 1: Defogger Schematics
GM1759506Courtesy of GENERAL MOTORS CORP.
