Mode Actuator Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

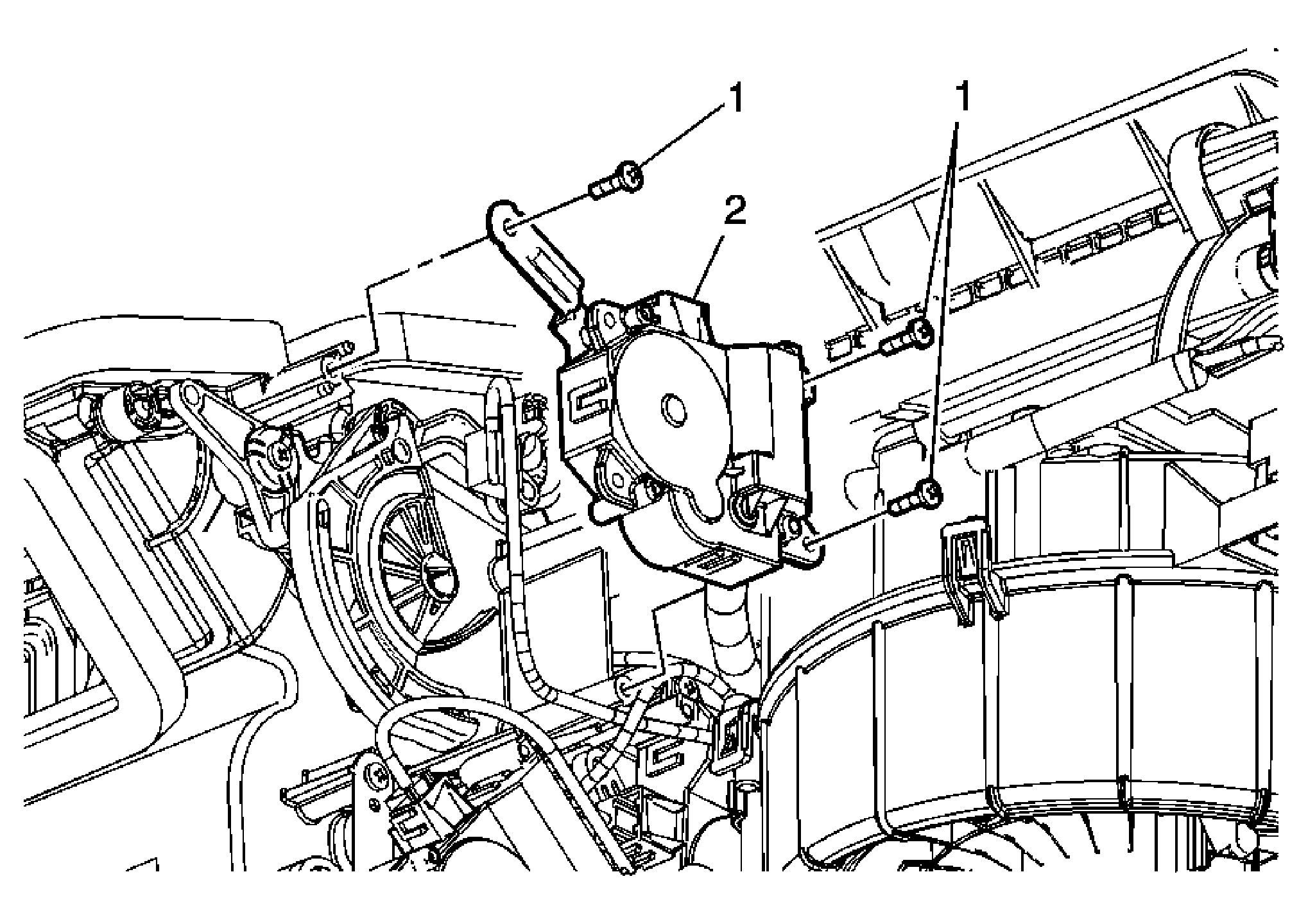

Fig 1: Identifying Mode Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the floor air outlet duct. Refer to Air Outlet Duct Replacement - Floor, RH . Disconnect the mode actuator electrical connector.
1	Mode Actuator Screw (Qty: 3) Tighten: 1 N.m (9 lb in)
2	Mode Actuator

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
Remove the floor air outlet duct. Refer to Air Outlet Duct Replacement - Floor, RH .
Disconnect the mode actuator electrical connector.

Mode Actuator Screw (Qty: 3)

Tighten: 1 N.m (9 lb in)

Mode Actuator
