Heater and Air Conditioning Control Wiring Harness Replacement w/Evaporator Temperature Sensor
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

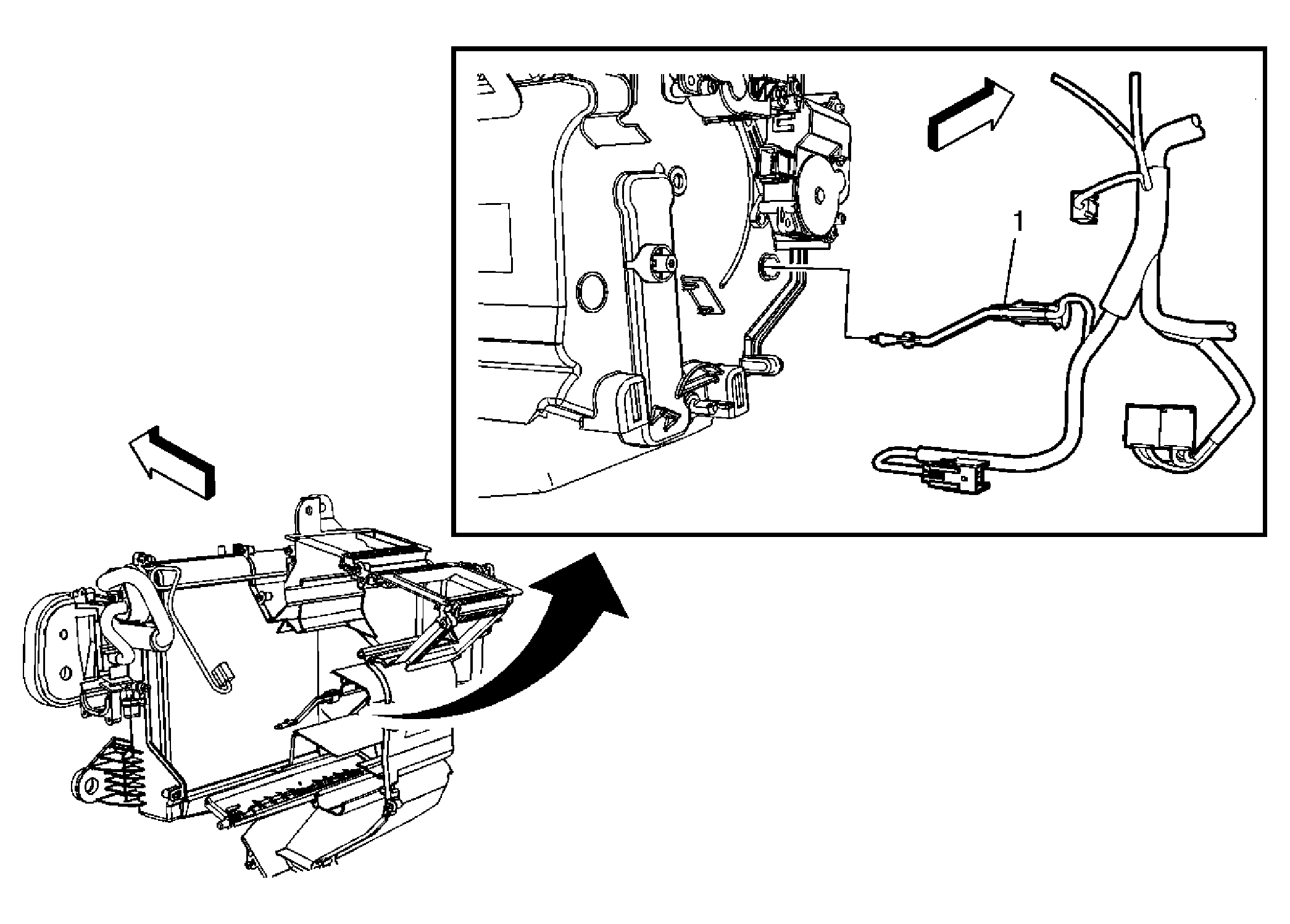

Fig 1: Identifying Heater and Air Conditioning Control Wiring Harness Replacement (w/Evaporator Temperature Sensor)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Evaporator Core. Refer to Evaporator Core Replacement . |
|
| 1 | Heater and A/C Control Lamp Wiring Harness w/Evaporator Temperature Sensor. Procedure Pinch the Evaporator Temperature Sensor locator tabs together from the inside of the HVAC case for sensor removal. Tip The Evaporator Temperature Sensor is part of the Heater and A/C Control Lamp Wiring Harness and must be serviced as an assembly. |
