Ambient Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

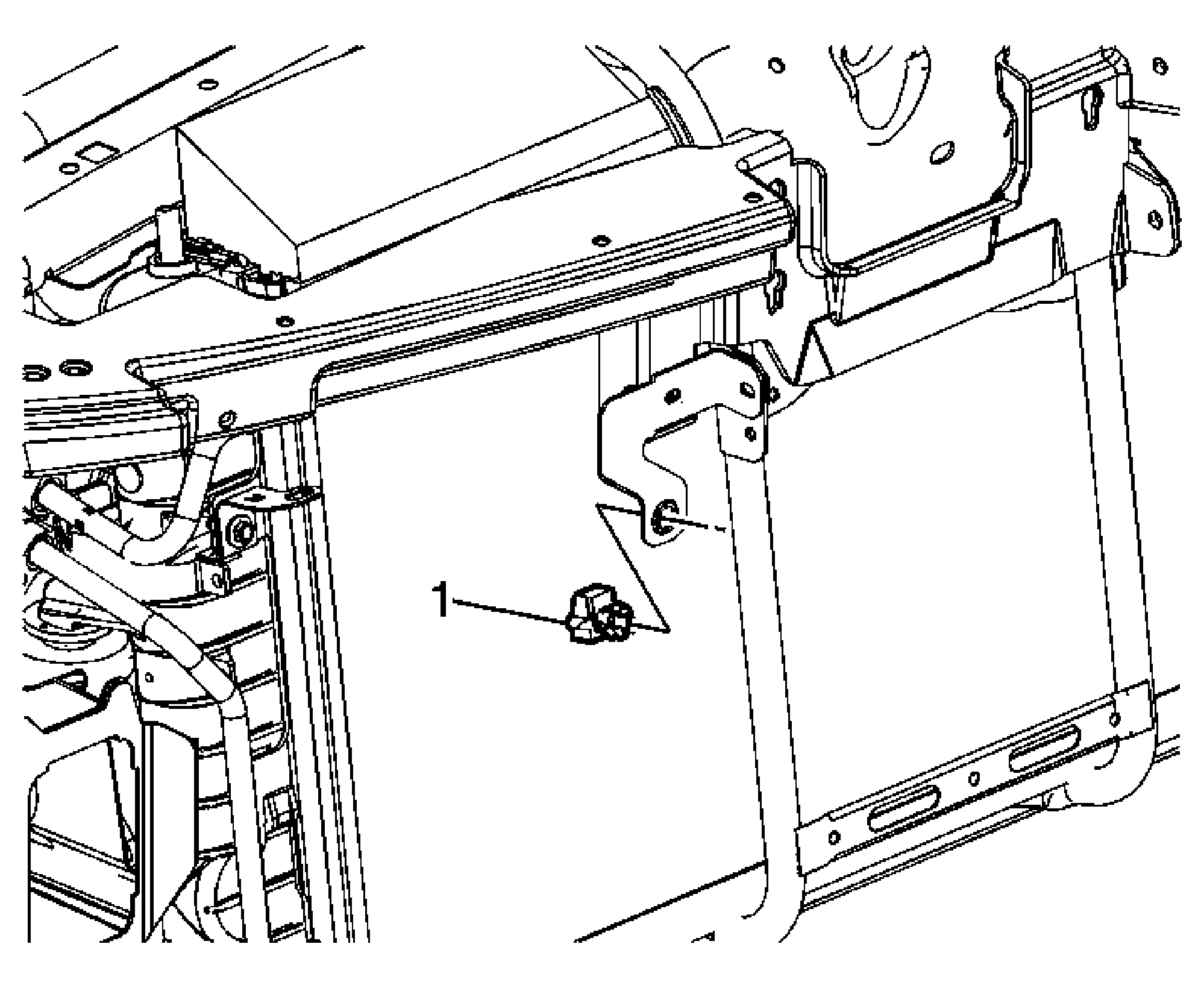

Fig 1: Removing/Installing Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . Disconnect the ambient air temperature sensor electrical connector.
1	Ambient Air Temperature Sensor Tip: Squeeze the 3 ambient air temperature sensor tabs to release the sensor from the bracket.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
Disconnect the ambient air temperature sensor electrical connector.

Ambient Air Temperature Sensor
Tip: Squeeze the 3 ambient air temperature sensor tabs to release the sensor from the bracket.
