Radio Rear Side Door Speaker Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

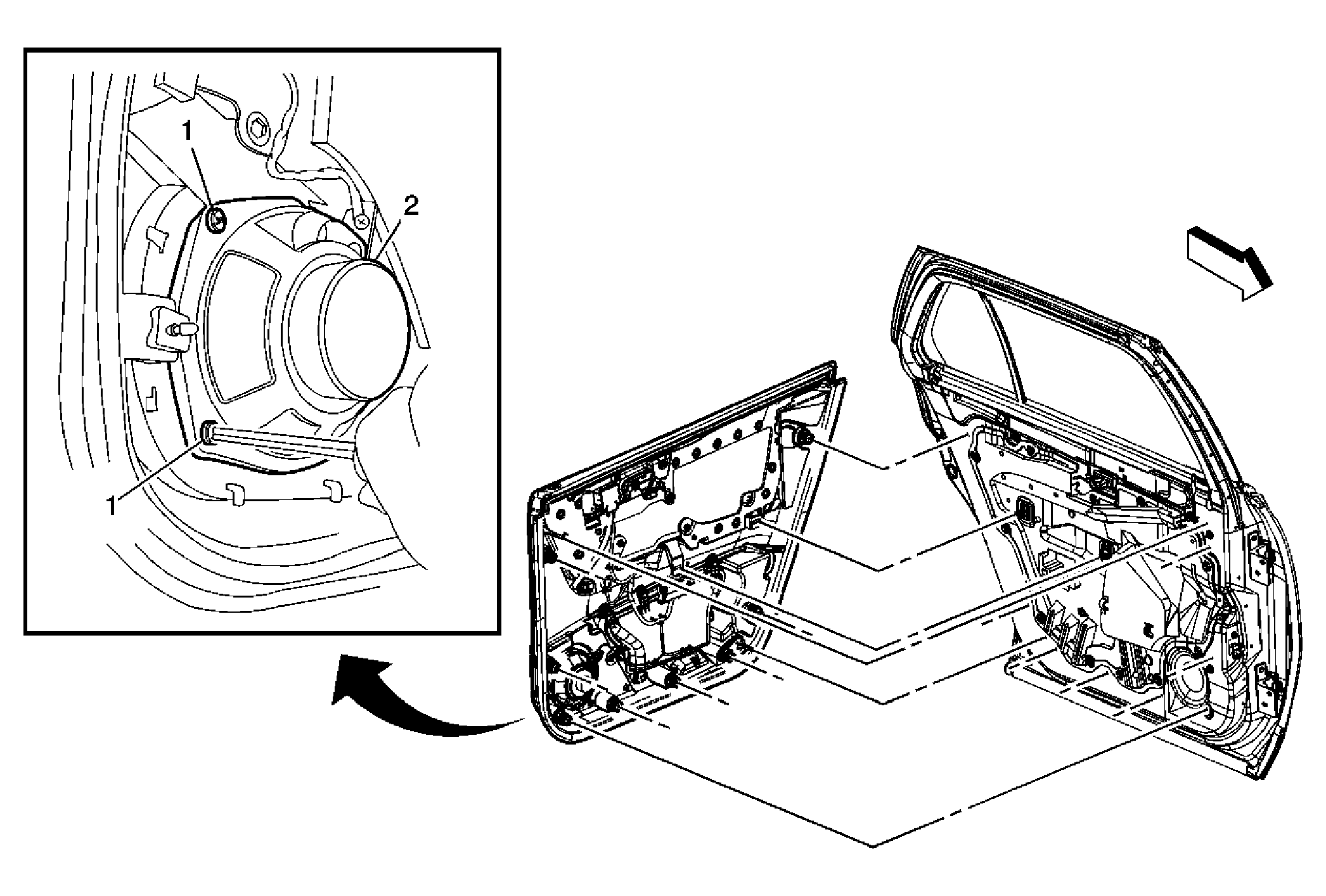

Fig 1: Rear Door Speaker Replacement
GM1640965Courtesy of GENERAL MOTORS CORP.
Radio Rear Side Door Speaker Replacement

Callout Component Name
Preliminary Procedure:
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Radio Rear Speaker Bolt/Screw (Qty: 4)
NOTE: Refer to Fastener Notice

Tip:  Disconnect the electrical connector.

Tighten:  2.5 N.m (22 lb in)
2 Radio Rear Speaker Assembly
