Radio Front Speaker Grille Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

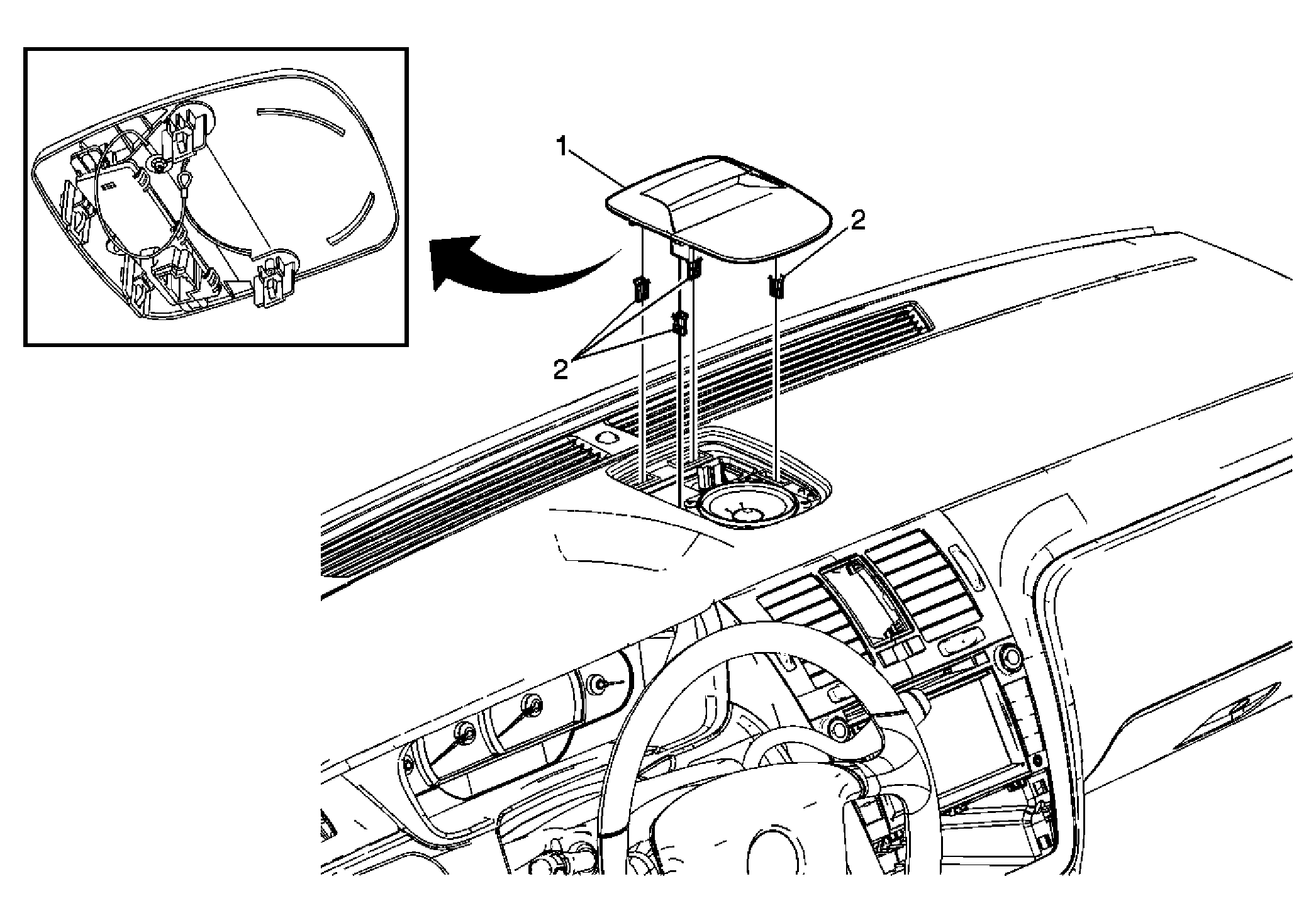

Courtesy of GENERAL MOTORS CORP. Speaker Grille Replacement - Front
| Callout |
Component Name |
| 1 |
Radio Front Speaker Grille
Tip:
Disconnect the tether that holds the speaker grille to the speaker. |
| 2 |
Front Speaker Grille Retainers (Qty: 4) |
