Tilt Motor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

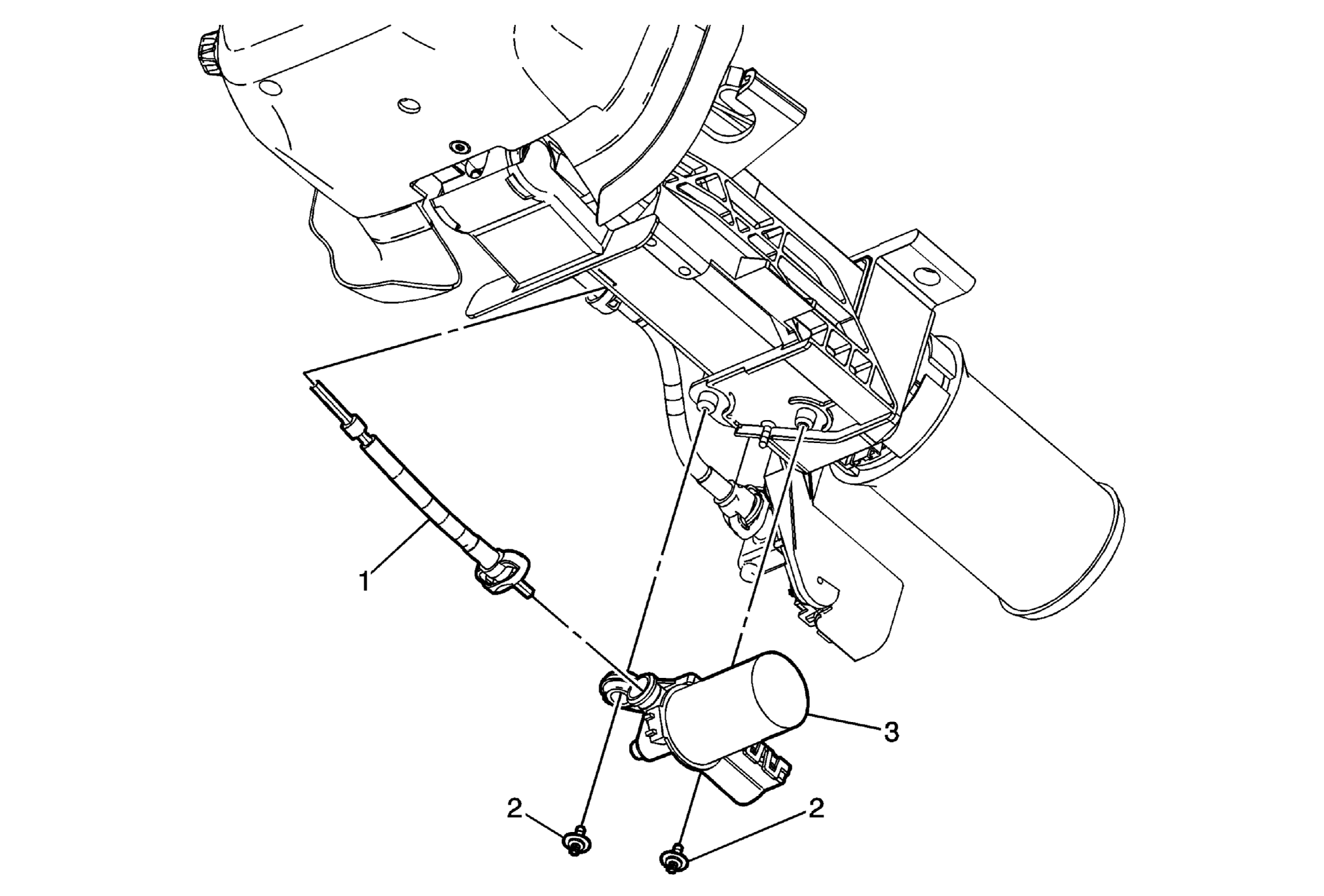

Fig 1: View of Tilt Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left side instrument panel insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE . Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	Steering Column Tilt Wheel Actuator Cable Tip The steering column tilt wheel actuator cable contains ends that must be gently squeezed to release it from the tilt motor.
2	Steering Column Tilt Wheel Actuator Motor Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten 1.5 N.m (13 lb in)
3	Tilt Motor Procedure Disconnect any electrical connectors as needed. Transfer any parts as needed.
