Telescope Actuator Assembly Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Telescope Actuator Assembly Replacement

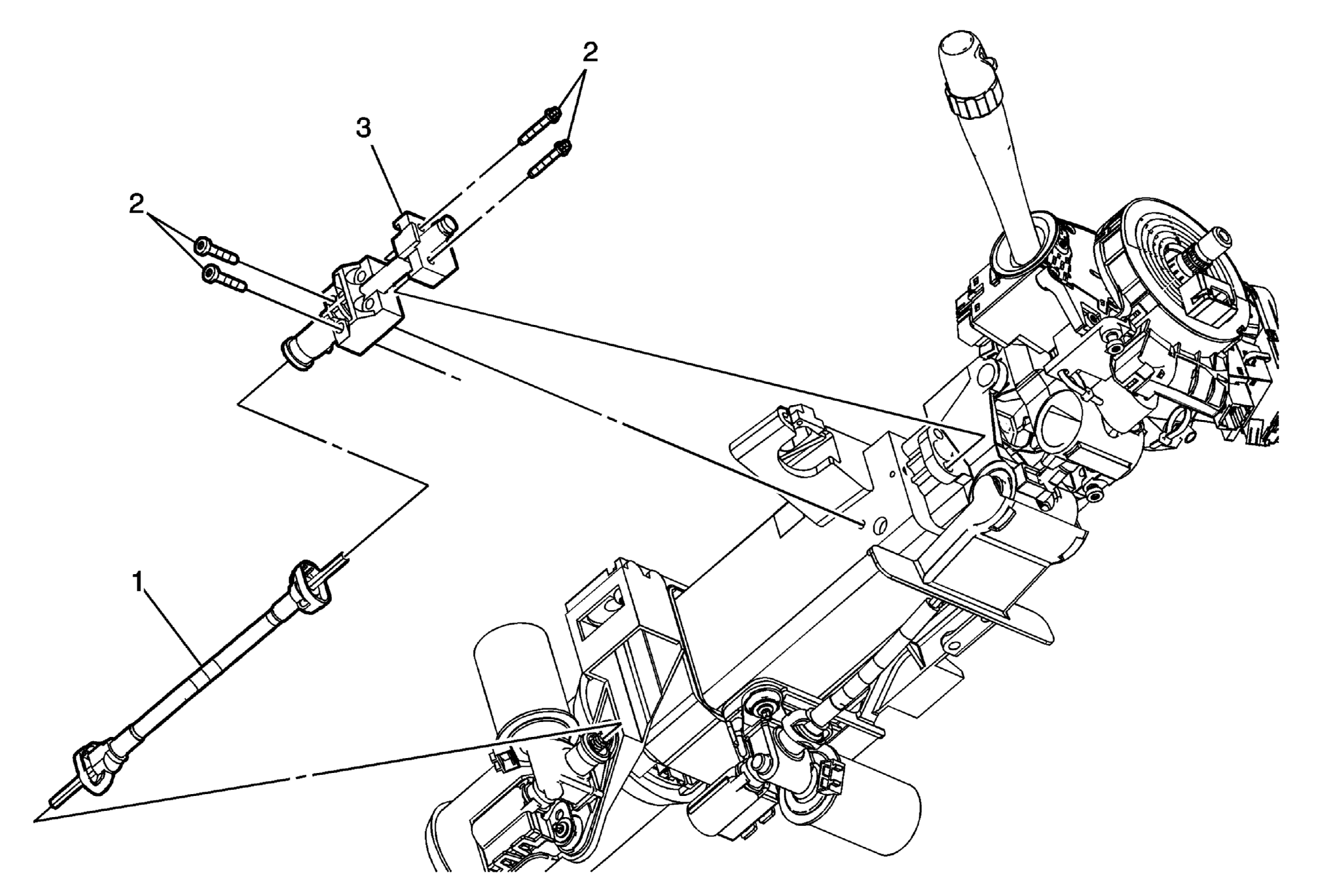

| Callout | Component Name |
|---|---|
|
Preliminary Procedure Remove the steering column lower trim cover. Refer to Inflatable Restraint Steering Wheel Module Replacement . |
|
| 1 | Steering Column Telescope Actuator Cable Tip The steering column telescope actuator cable contains ends that must be gently squeezed to release it from the telescope actuator assembly and the telescope motor assembly. |
| 2 | Steering Column Telescope Actuator Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten 5 N.m (44 lb in) |
| 3 | Telescope Actuator Assembly |
