Steering Wheel Heat Module Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

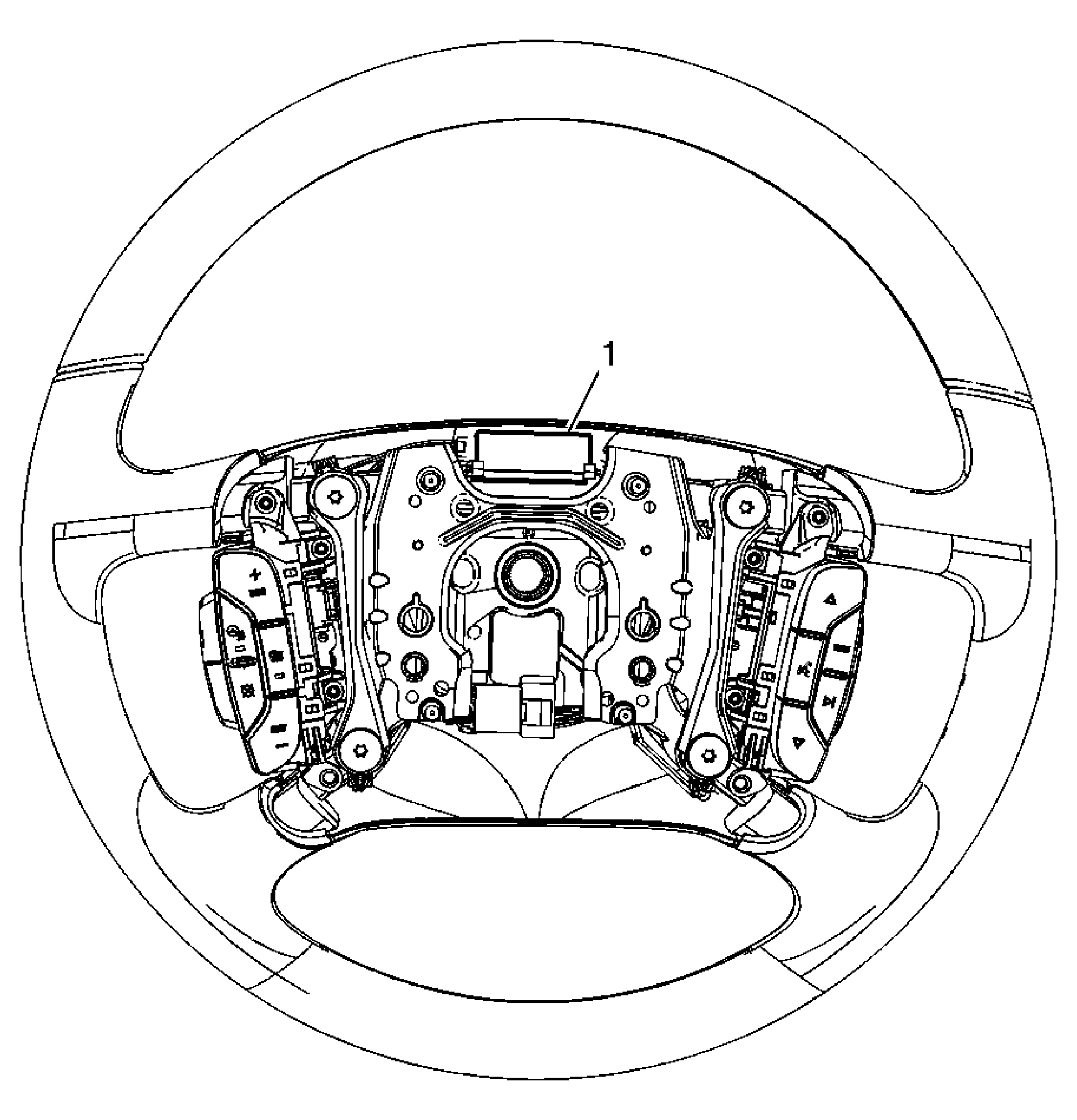

Fig 1: Steering Wheel Heat Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Heat Module Procedure Release the plastic arms retaining the steering wheel heat module and slide it forward past them. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

Steering Wheel Heat Module

Procedure

Release the plastic arms retaining the steering wheel heat module and slide it forward past them.
Disconnect the electrical connector.
