Intermediate Steering Shaft Seal Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

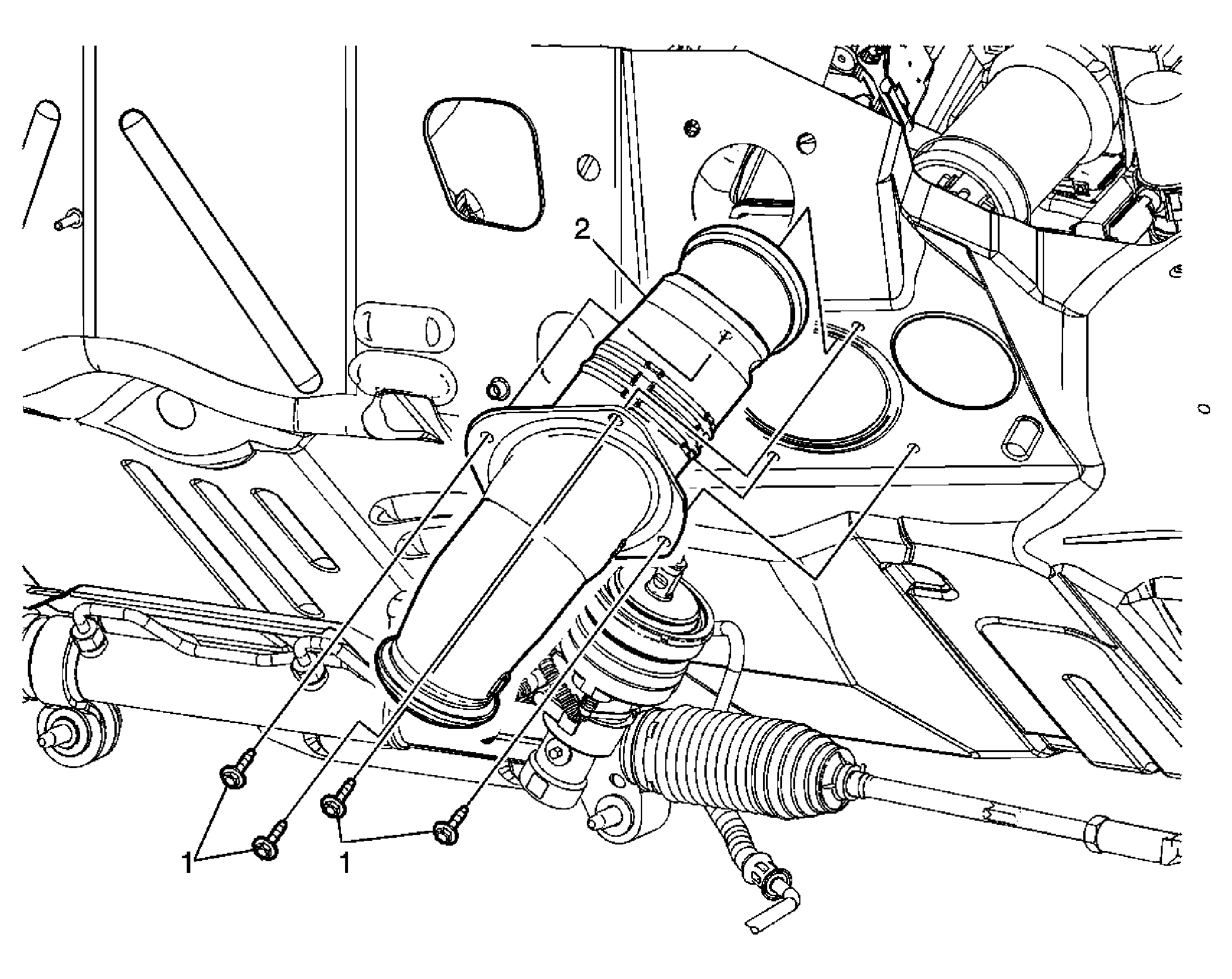

Fig 1: Removing steering column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the steering column. Refer to Steering Column Replacement . Remove the vacuum brake booster. Refer to Vacuum Brake Booster Replacement .
1	Intermediate Steering Shaft Seal Bolt (Qty: 4) Tighten: 3 N.m (27 lb ft)
2	Intermediate Steering Shaft Seal

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the steering column. Refer to Steering Column Replacement .
Remove the vacuum brake booster. Refer to Vacuum Brake Booster Replacement .

Intermediate Steering Shaft Seal Bolt (Qty: 4)

Tighten: 3 N.m (27 lb ft)

Intermediate Steering Shaft Seal
