Steering Wheel and Column Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Heated Steering Wheel |
| 2 | Horn Switch |
| 3 | Steering Wheel Control Switch - Right |
| 4 | Radio Volume Switch |
| 5 | Steering Wheel Control Switch - Left |
| 6 | Heated Steering Wheel Element (N30) |
| 7 | Heated Steering Wheel Switch (N30) |
| 8 | Steering Wheel Control Switch - Left |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Traction Control Switch (AQ9) |
| 3 | Ignition Lock Cylinder Solenoid (AQ9) |
| 4 | Ignition Key Alarm Switch |
| 5 | Theft Deterrent Module (TDM) |
| 6 | Ignition Switch |
| 7 | Inflatable Restraint Steering Wheel Module Coil |
| 8 | Steering Angle Sensor (JL4) |
| 9 | Telescoping Actuator (N37) |
| 10 | Tilt Actuator (N37) |
| 11 | Tilt/Telescope Switch (N37) |

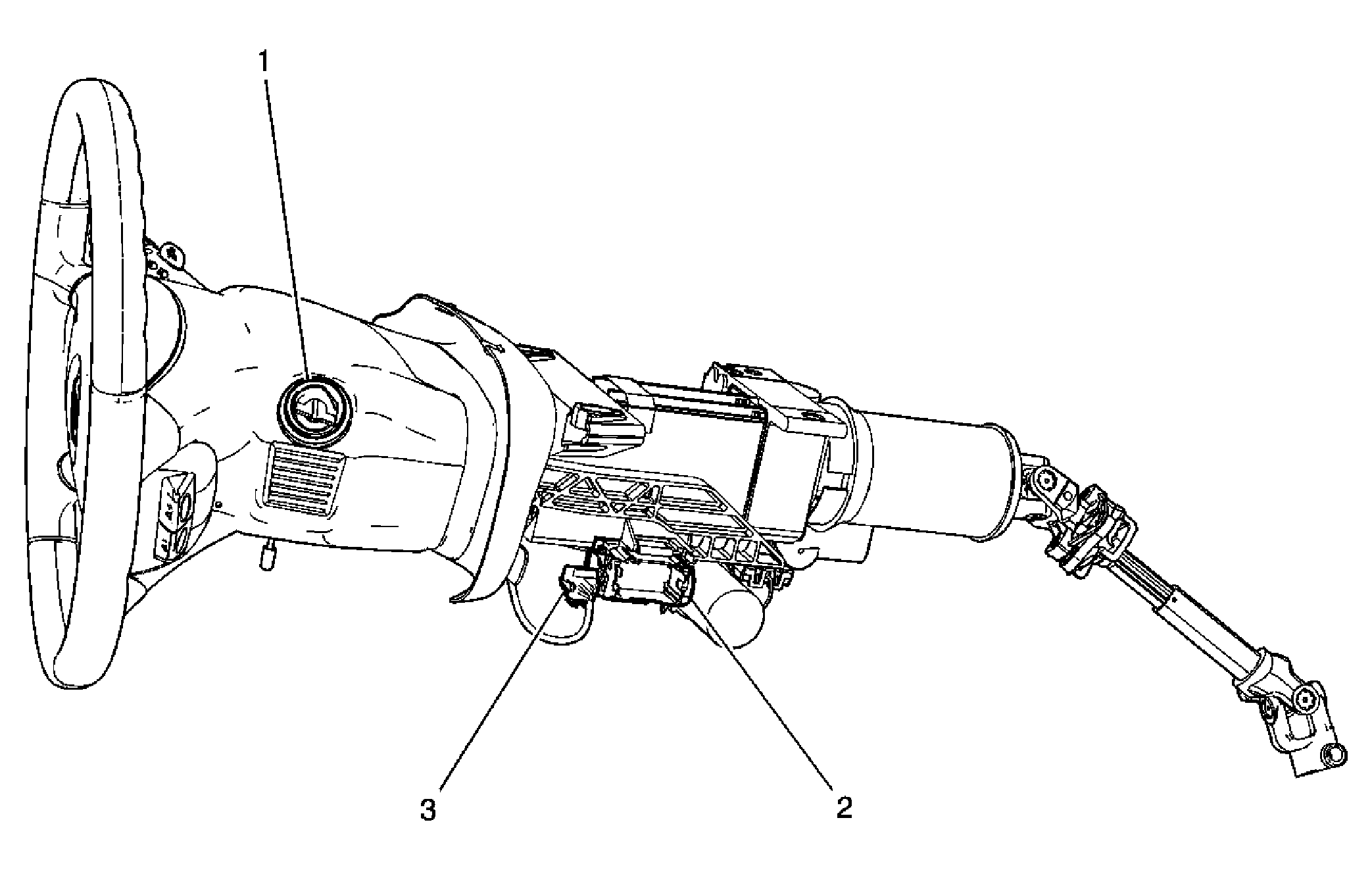

Steering Column Inlines
| 1 | Ignition Switch |
| 2 | C205 |
| 3 | C207 |
