Steering Column Disassembled View (Manual Steering Column with AQ9)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

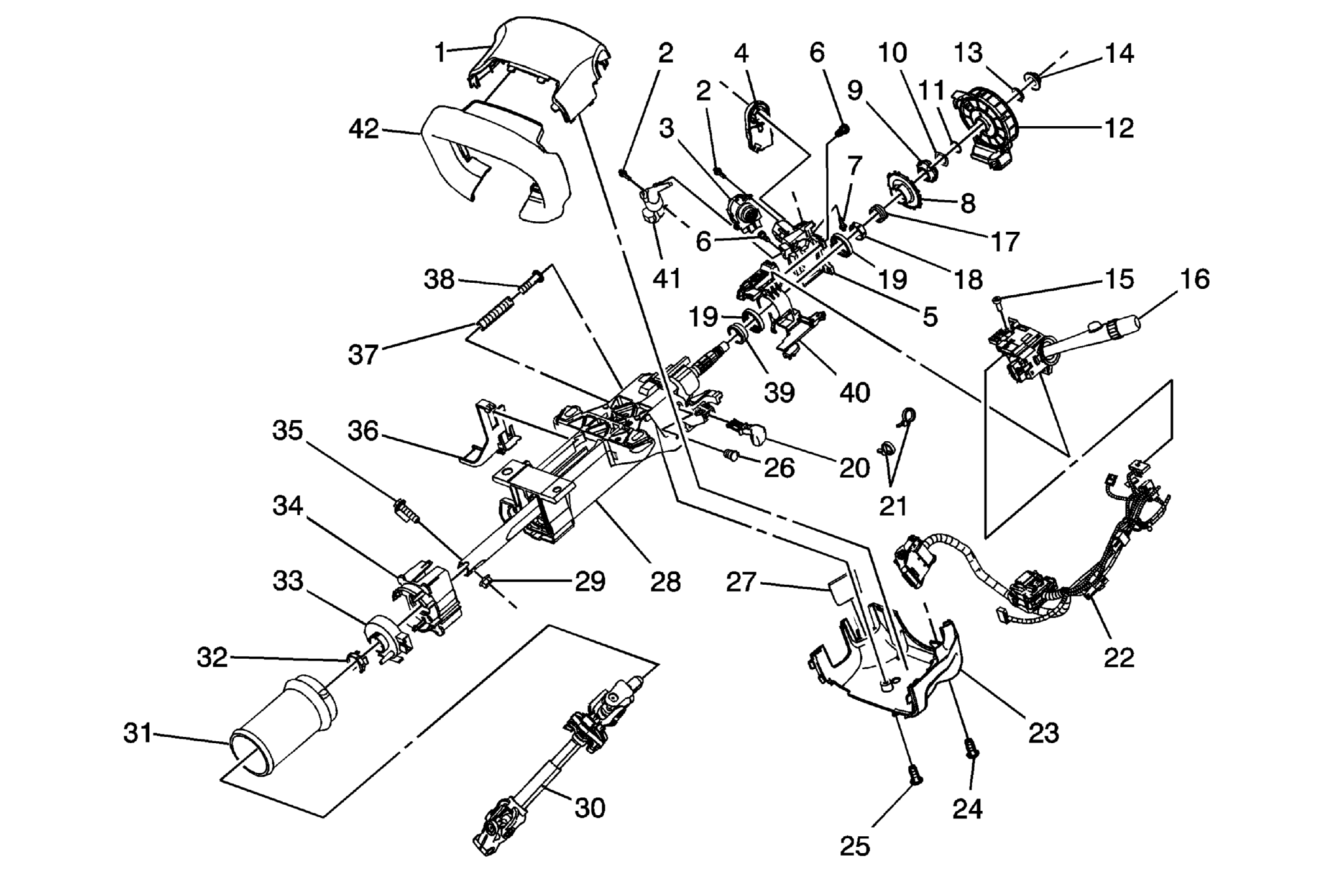

Fig 1: Manual Tilt Steering Column, Column Shift Disassembled View

Courtesy of GENERAL MOTORS CORP.

1	Steering Column Upper Trim Cover
2	Ignition and Start Switch Bolt
3	Ignition and Start Switch
4	Theft Deterrent Module
5	Ignition Lock Cylinder Case
6	Ignition Lock Cylinder Case Bolt
7	Steering Column Upper Trim Cover
8	Turn Signal Cancel Cam
9	Steering Shaft Lock Plate
10	Steering Shaft Lock Plate Retaining Ring
11	Inflatable Restraint Steering Wheel Module Coil Washer
12	Inflatable Restraint Steering Wheel Module Coil
13	Inflatable Restraint Steering Wheel Module Coil Retaining Ring
14	Steering Wheel Nut
15	Turn Signal Multifunction Switch Bolt
16	Turn Signal Multifunction Switch
17	Steering Shaft Upper Bearing Spring
18	Steering Shaft Upper Bearing Race Seat
19	Steering Shaft Upper Bearing
20	Tilt Lever
21	Wiring Harness Strap
22	Steering Column Wiring Harness
23	Steering Column Lower Trim Cover
24	Steering Column Lower Trim Cover Bolt
25	Steering Column Lower Trim Cover Bolt
26	Steering Column Pivot Pin
27	Steering Column Lower Trim Cover Protector
28	Steering Column
29	Intermediate Steering Shaft Nut
30	Intermediate Steering Shaft
31	Steering Column Boot Seal
32	Steering Angle Sensor Adapter
33	Steering Wheel Position Sensor
34	Steering Shaft Lower Bearing Adapter
35	Intermediate Steering Shaft Bolt
36	Accessory Wiring Harness Clip
37	Steering Column Tilt Spring
38	Steering Column Tilt Guide
39	Steering Shaft Upper Bearing Race
40	Ignition Lock Cylinder Case Bracket
41	Steering Wheel Theft Deterrent Lock
42	Steering Column Shroud
