Recirculation Door Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

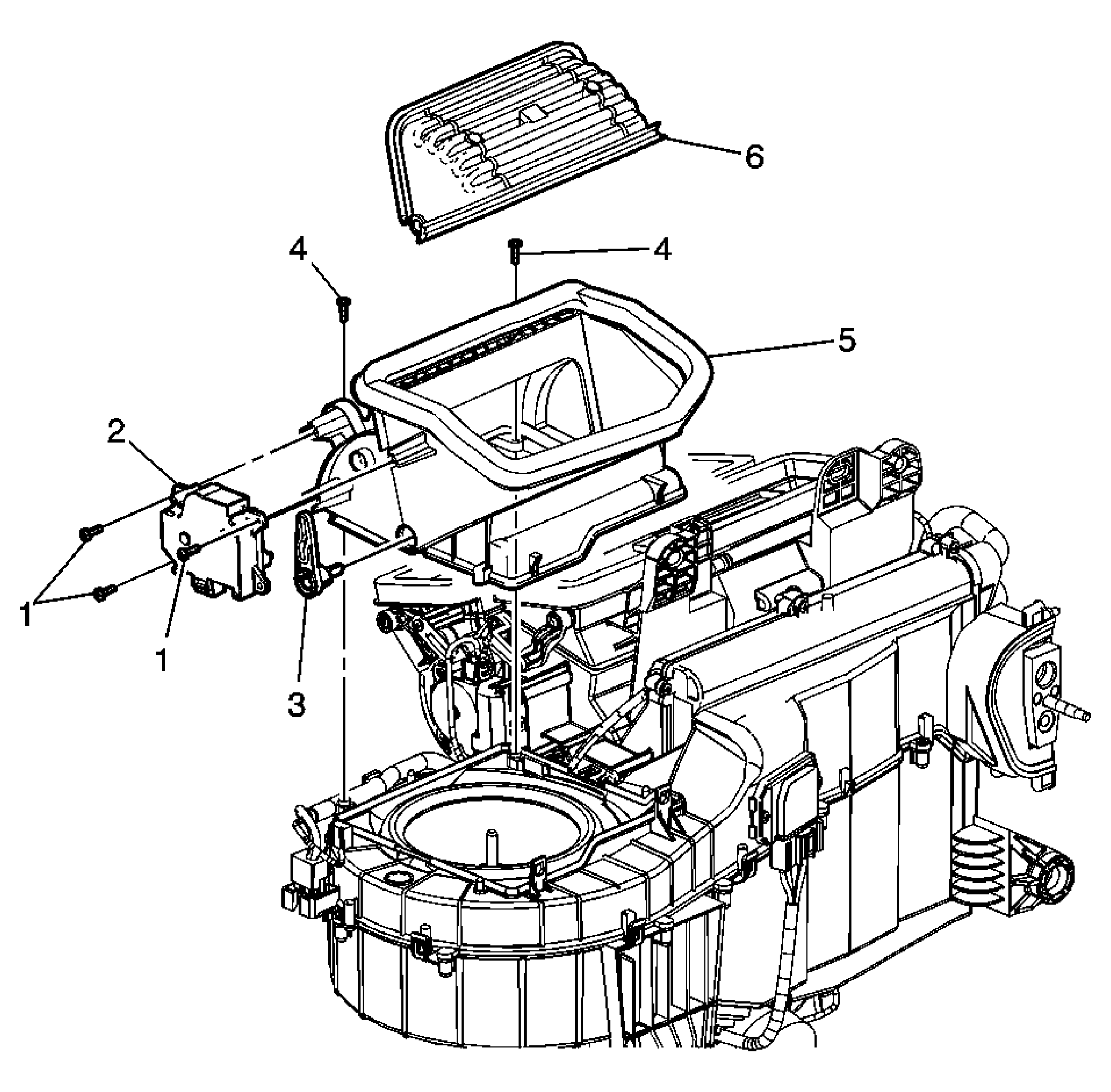

Fig 1: Identifying Recirculation Door
GM1659363Courtesy of GENERAL MOTORS CORP.
Recirculation Door Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
  2. Disconnect the recirculation actuator electrical connector.
1 Recirculation Actuator Screw (Qty: 2)

Tighten:  1.0 N.m (9 lb in)
2 Recirculation Actuator
3 Air Inlet Housing Door Lever
4 Air Inlet Housing Screw (Qty: 2)

Tighten:  1.0 N.m (9 lb in)
5 Air Inlet Housing
6 Air Inlet Housing Door
