Heater Pipes Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

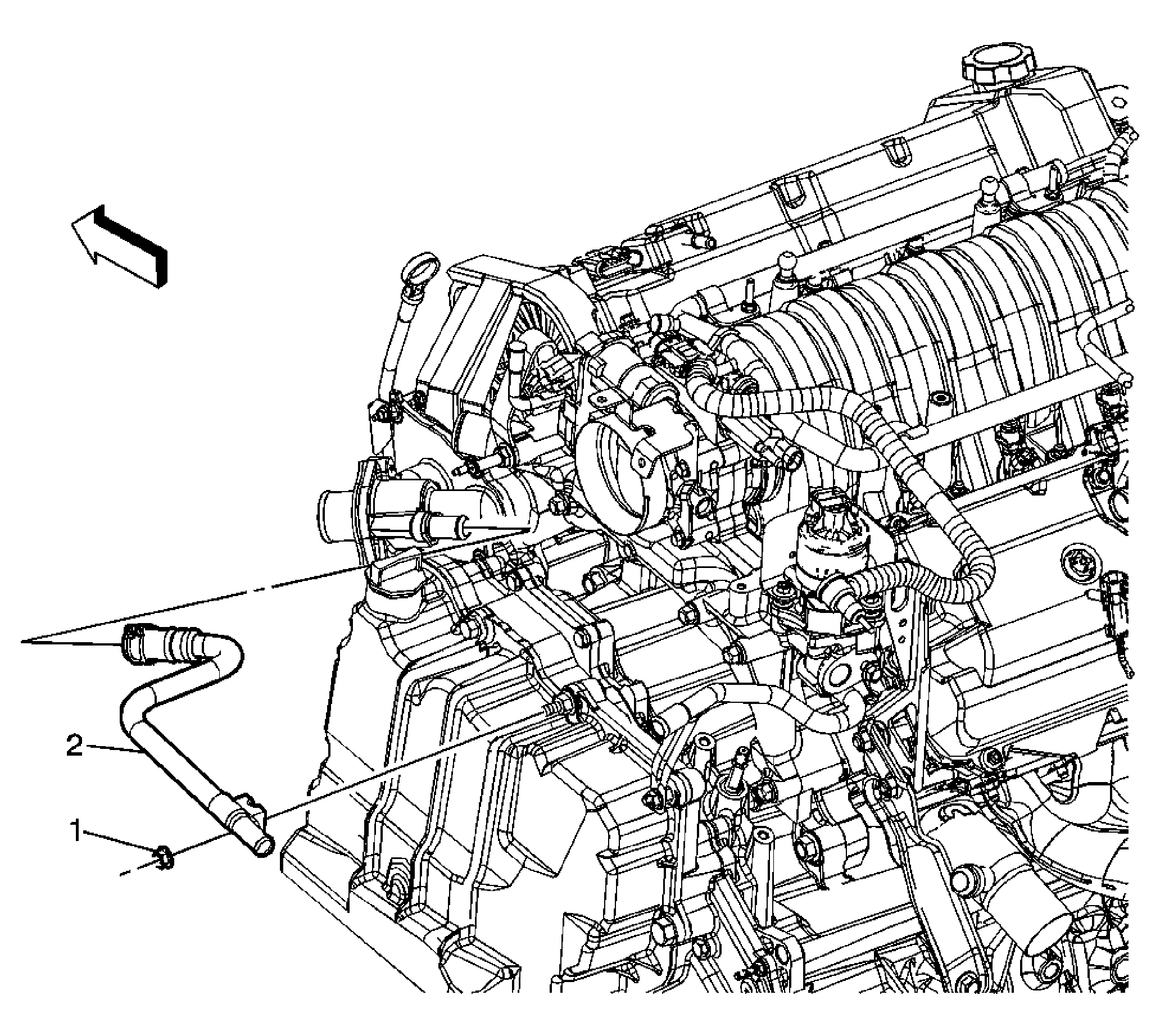

Fig 1: Heater Pipes

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Partially drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Heater Outlet Pipe Nut Tighten: 25 N.m (18 lb ft)
2	Heater Outlet Pipe Tip: Using J 38185 Hose Clamp Pliers, position heater outlet hose clamps aside and remove hose from the heater hose and engine.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Partially drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Heater Outlet Pipe Nut

Tighten: 25 N.m (18 lb ft)

Heater Outlet Pipe
Tip: Using J 38185 Hose Clamp Pliers, position heater outlet hose clamps aside and remove hose from the heater hose and engine.
