Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
  3. Remove the upper tie bar. Refer to Front End Upper Tie Bar Replacement .
  4. Remove the hood latch support. Refer to Hood Latch Support Replacement .

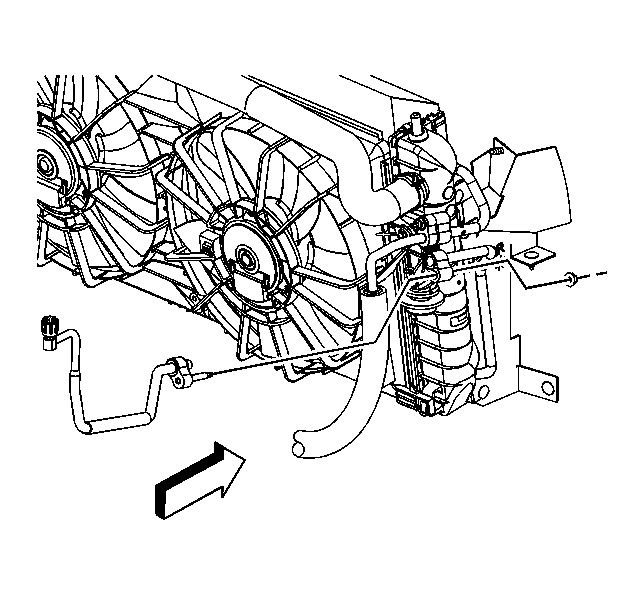

    5. Fig 1: Removing/Installing Discharge Hose At Condenser
    GM1664232Courtesy of GENERAL MOTORS CORP.
  5. Remove the discharge hose nut from the condenser.
  6. Remove the discharge hose from the condenser.

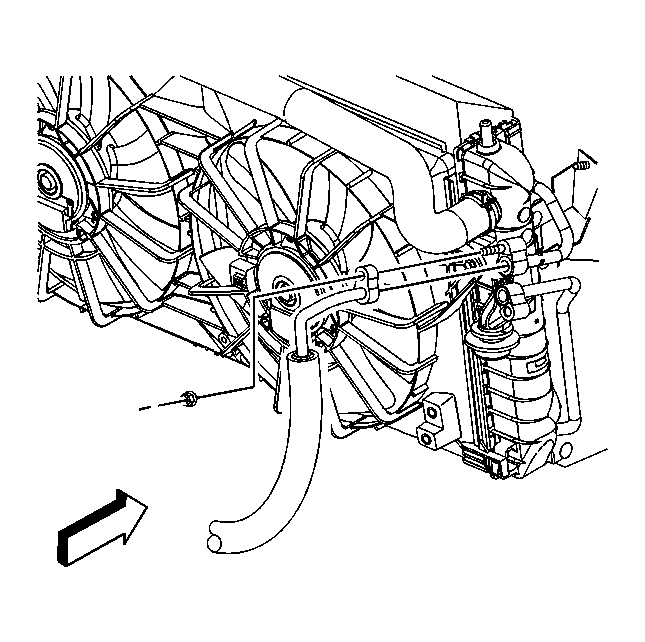

    7. Fig 2: Removing/Installing Suction Hose At Condenser
    GM1664236Courtesy of GENERAL MOTORS CORP.
  7. Remove the suction hose nut from the condenser.
  8. Remove the suction hose from the condenser.
  9. Remove and discard the sealing washers. Refer to Sealing Washer Replacement .
    10. Fig 3: Removing/Installing Condenser Lines
    GM1664239Courtesy of GENERAL MOTORS CORP.
  10. Remove the condenser lines to radiator mounting bolt.
    11. Fig 4: Identifying engine oil cooler lines
    GM1700094Courtesy of GENERAL MOTORS CORP.
  11. Remove the engine oil cooler lines (1, 2) from the radiator, if equipped.
    12. Fig 5: View Of Condenser & Bolts
    GM1664240Courtesy of GENERAL MOTORS CORP.
  12. Remove the condenser mounting bolts.
    13. Fig 6: Removing/Installing Condenser To/From Radiator Retainer
    GM1664242Courtesy of GENERAL MOTORS CORP.
  13. Remove the condenser from the radiator retainer.
  14. Remove the condenser from the vehicle.
