Auxiliary Blower Motor Resistor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

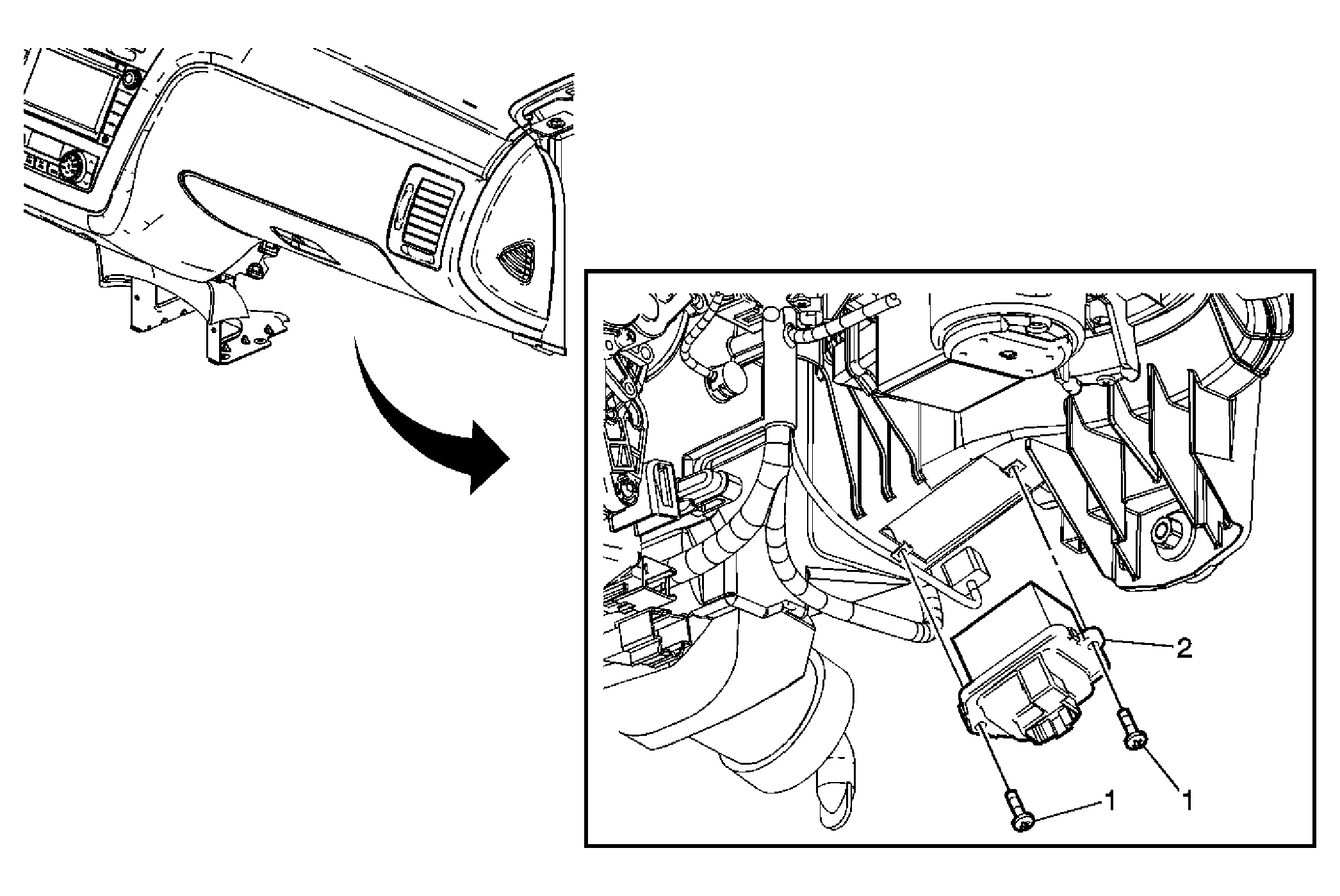

Fig 1: Blower Motor Resistor - Auxiliary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the right hand closeout insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side . Disconnect the auxiliary blower motor resistor electrical connector.
1	Auxiliary Blower Resistor Screw (Qty: 2) Tighten: 1 N.m (9 lb in)
2	Auxiliary Blower Resistor

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the right hand closeout insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
Disconnect the auxiliary blower motor resistor electrical connector.

Auxiliary Blower Resistor Screw (Qty: 2)

Tighten: 1 N.m (9 lb in)

Auxiliary Blower Resistor
