Auxiliary Blower Motor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

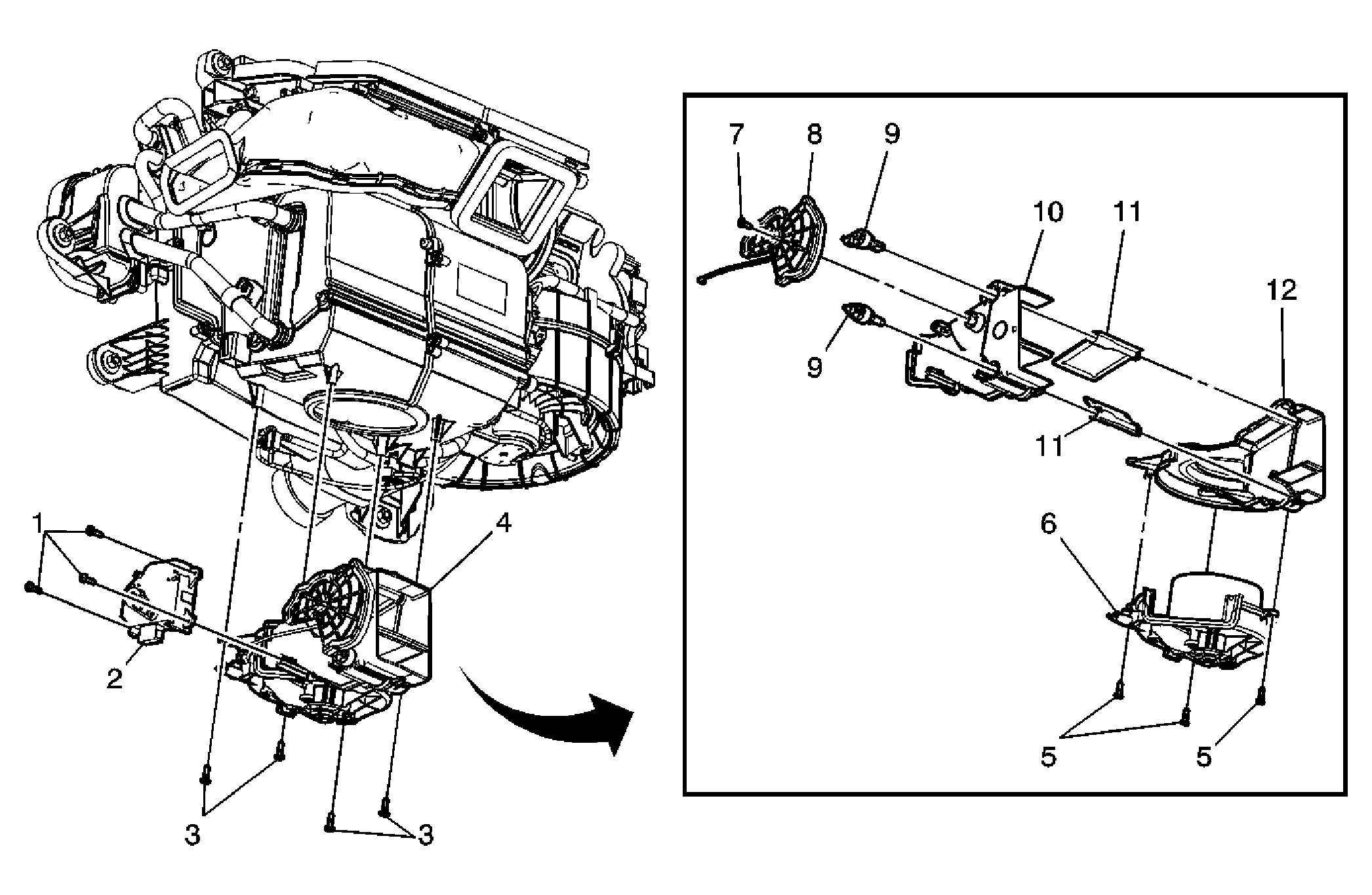

Fig 1: Blower Motor - Auxiliary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the floor console. Refer to Console Replacement . Disconnect the auxiliary blower assembly electrical connectors.
1	Auxiliary Temperature Actuator Screw (Qty: 3) Tighten: 1 N.m (9 lb in)
2	Auxiliary Temperature Actuator
3	Auxiliary Blower Motor Assembly Screw (Qty: 3) Tighten: 1 N.m (9 lb in)
4	Auxiliary Blower Motor Assembly
5	Auxiliary Blower Motor Screw (Qty: 3) Tighten: 1 N.m (9 lb in)
6	Auxiliary Blower Motor
7	Auxiliary Temperature Actuator Mode Cam Screw Tighten: 1 N.m (9 lb in)
8	Auxiliary Temperature Actuator Mode Cam
9	Auxiliary Temperature Actuator Mode Cam Lever (Qty: 2)
10	Auxiliary Blower Housing Right
11	Auxiliary Blower Housing Temperature Door
12	Auxiliary Blower Housing Left
