Power Distribution Schematics

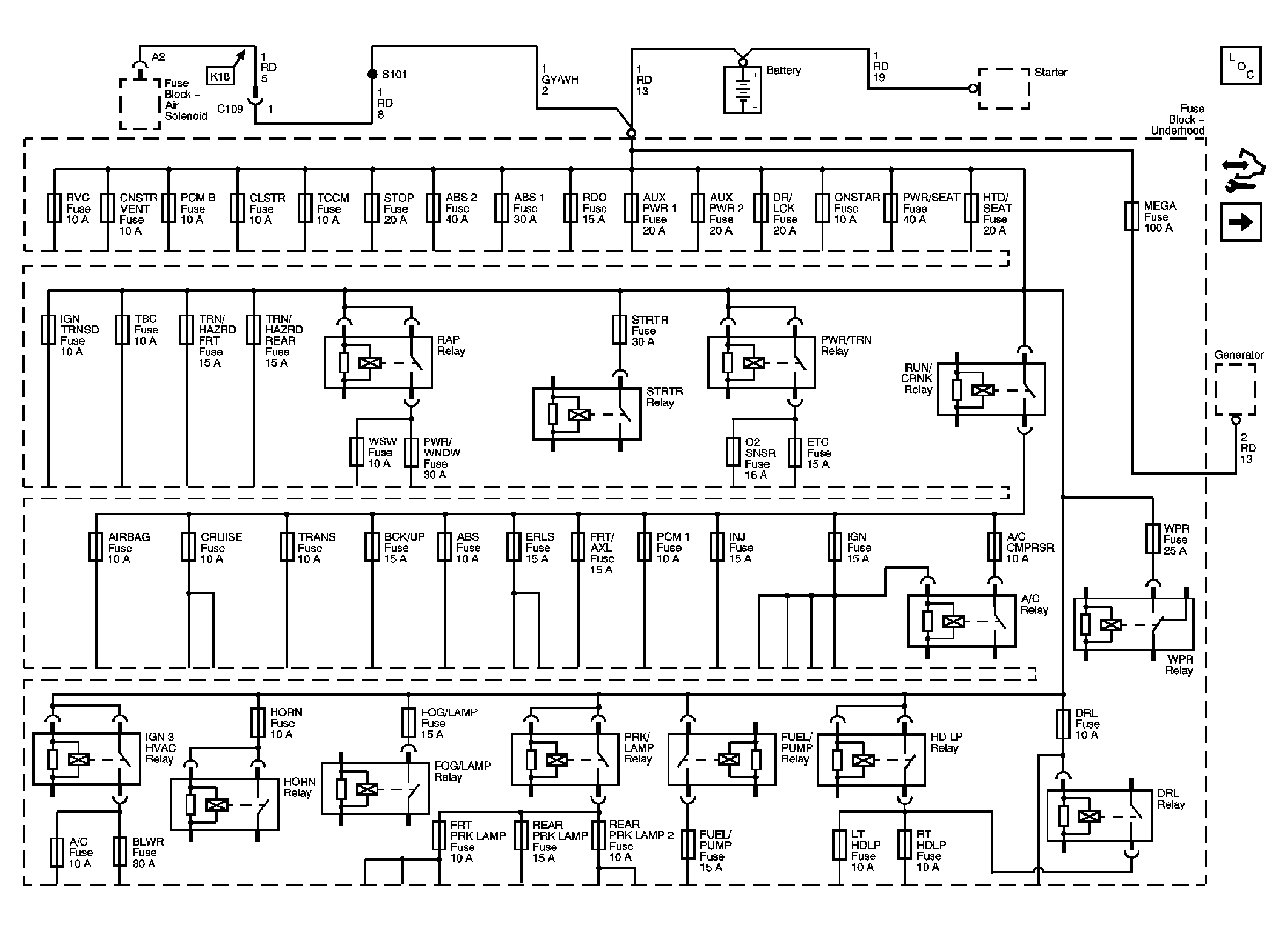

Fig 1: B+ Bus - Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

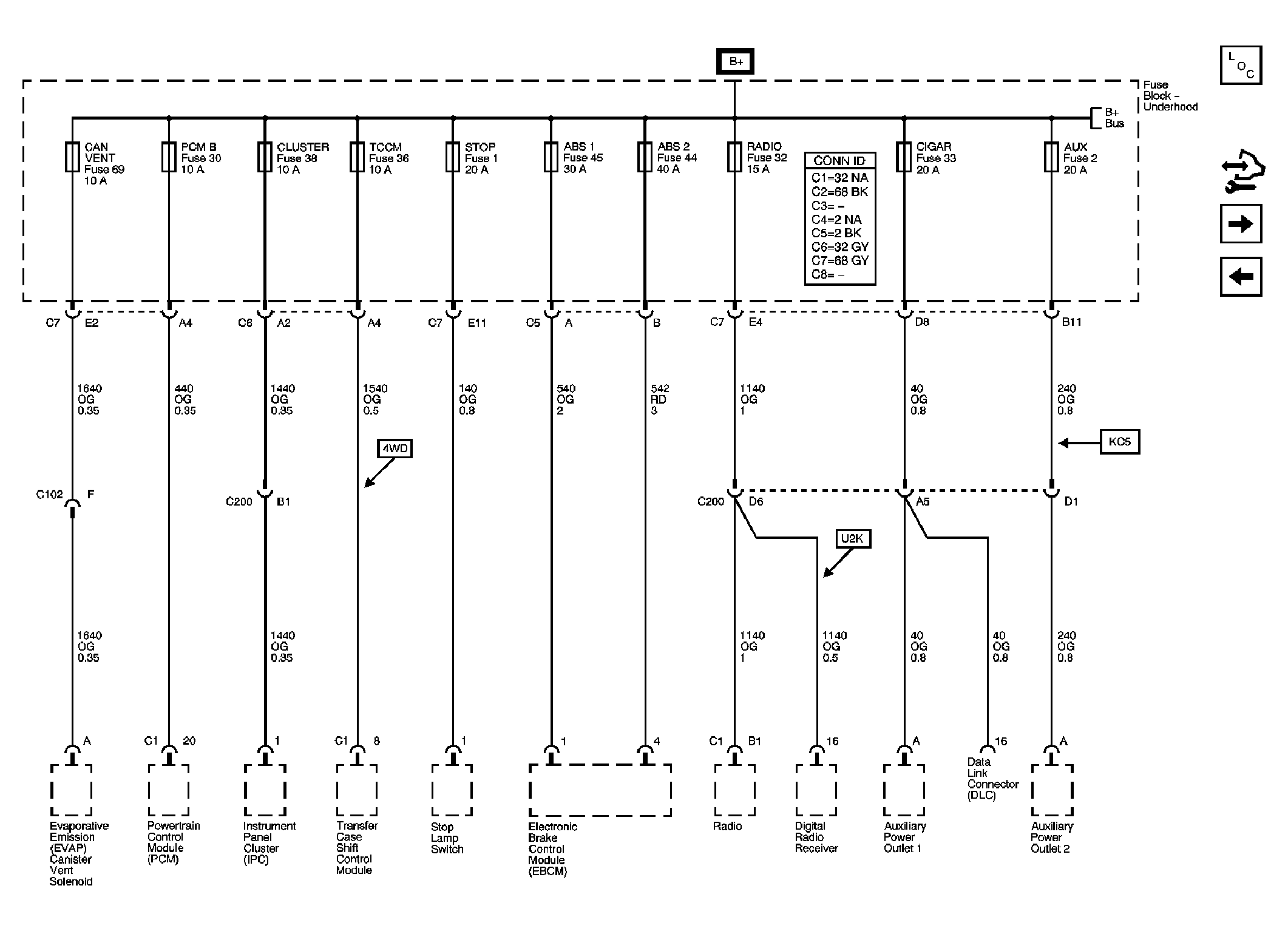

Fig 2: ABS 1, ABS 2, AUX, CAN VENT, CIGAR, CLUSTER, DOOR LOCK, ONSTAR, PCM B, RADIO, STOP, and TCCM Fuses

Courtesy of GENERAL MOTORS CORP.

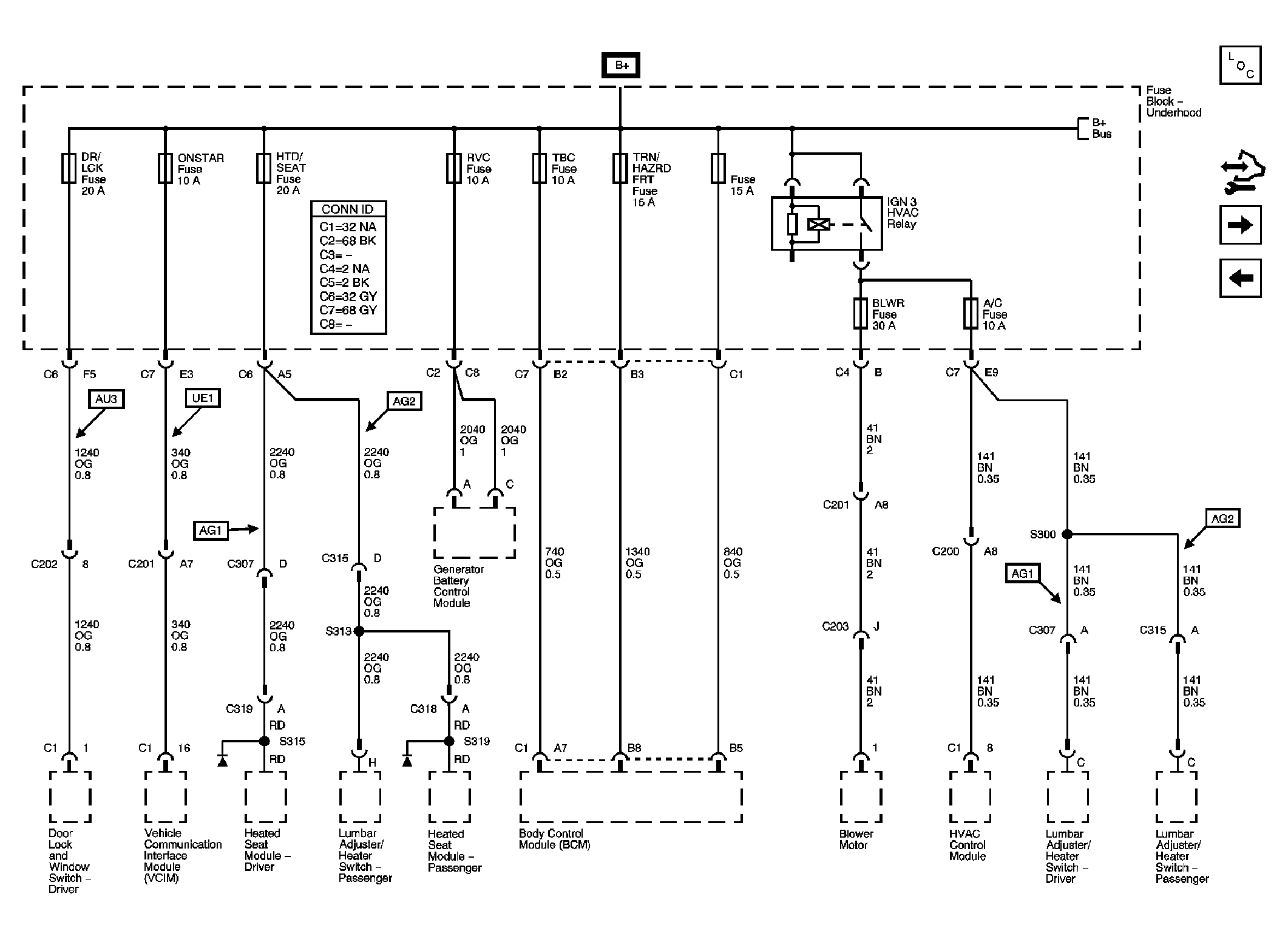

Fig 3: A/C, BLOWER, DOOR LOCK, HTD SEAT, ONSTAR, TBC, TURN/HAZ FR, and TURN/HAZ RR Fuses

Courtesy of GENERAL MOTORS CORP.

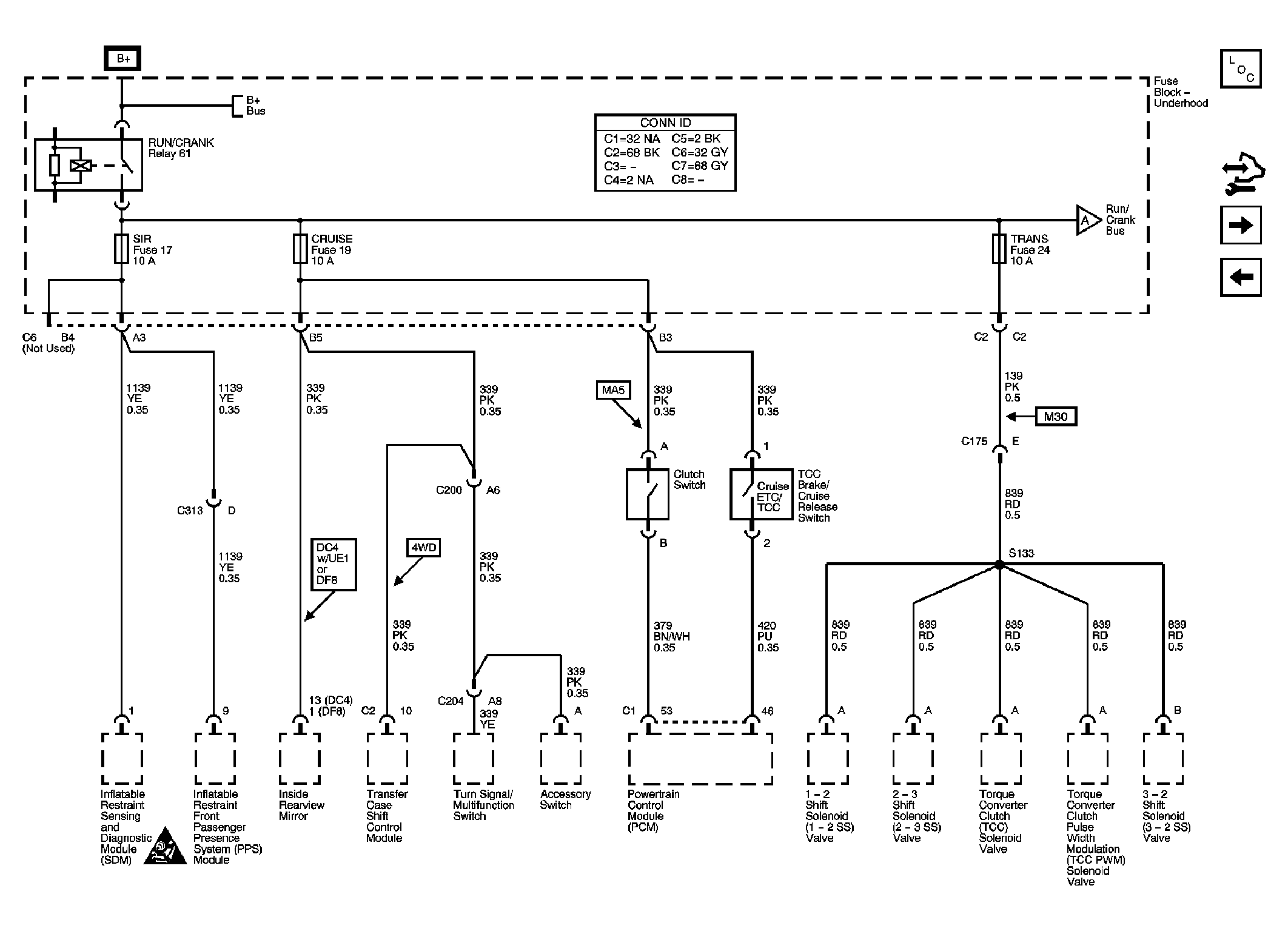

Fig 4: RUN/CRANK Relay Bus - 1 of 3, CRUISE, SIR, and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

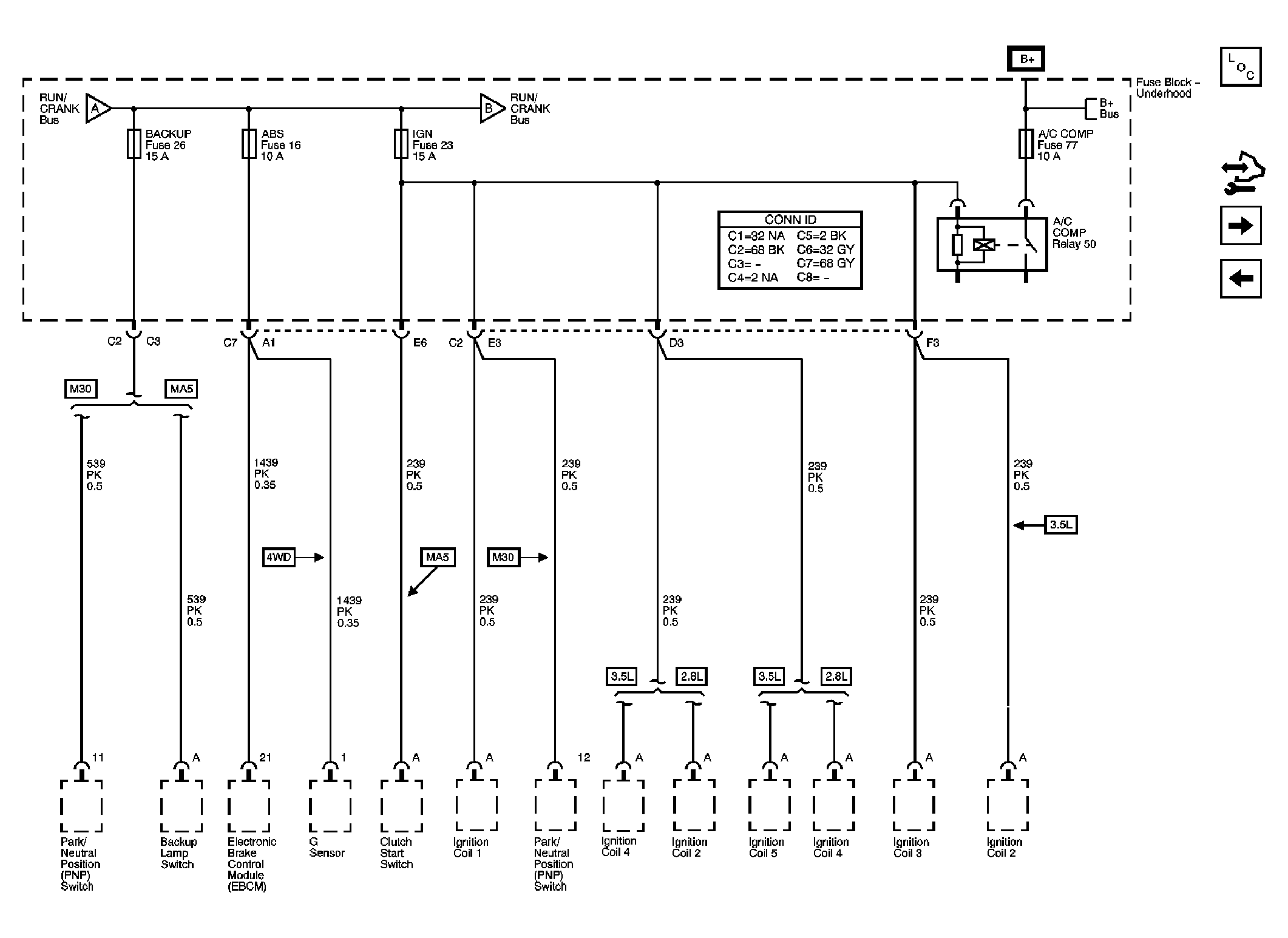

Fig 5: RUN/CRANK Relay Bus - 2 of 3, ABS, BACKUP, and IGN Fuses

Courtesy of GENERAL MOTORS CORP.

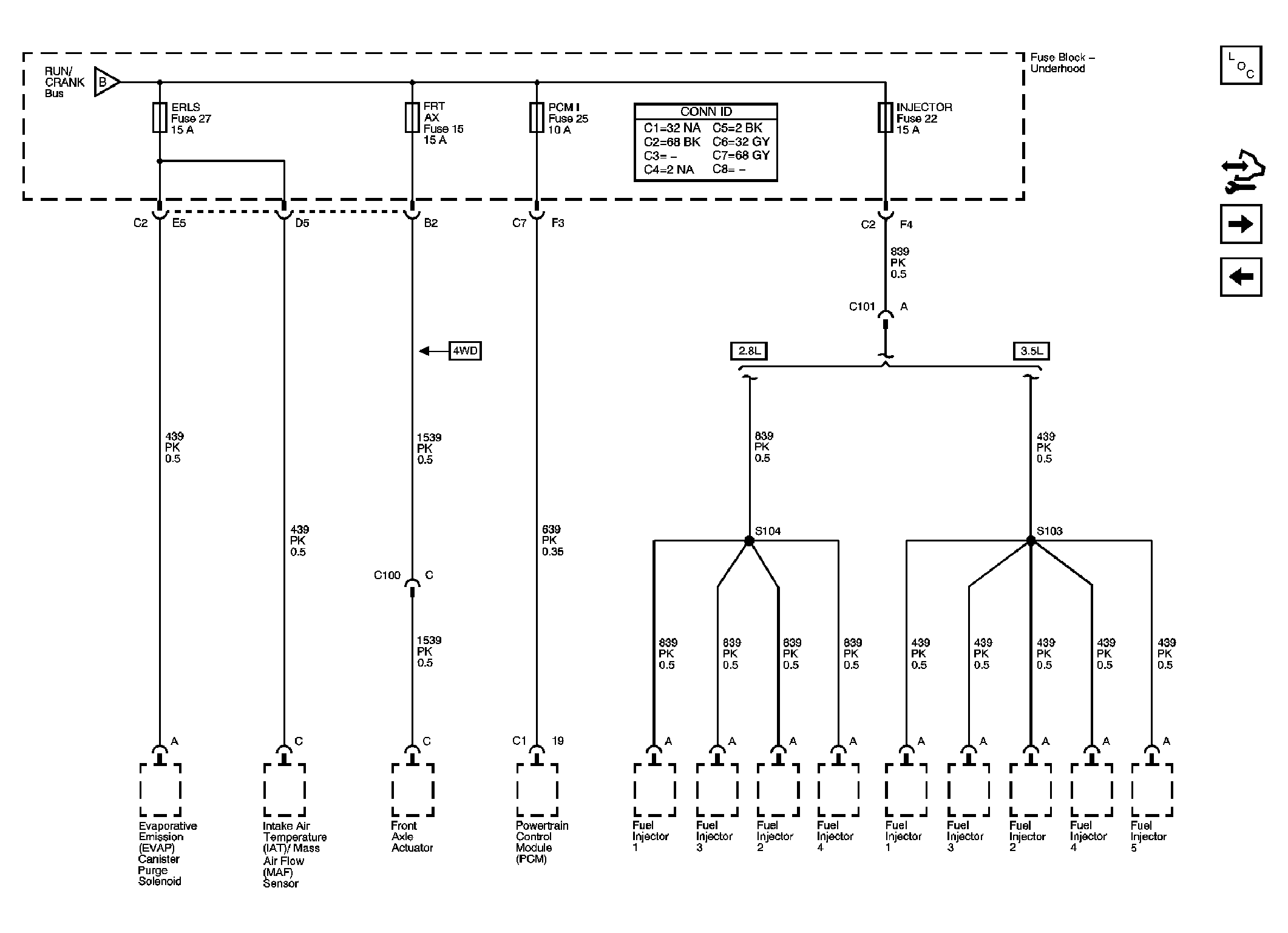

Fig 6: RUN/CRANK Relay Bus - 3 of 3, ERLS, FRT AX, INJECTOR, and PCM I Fuses

Courtesy of GENERAL MOTORS CORP.

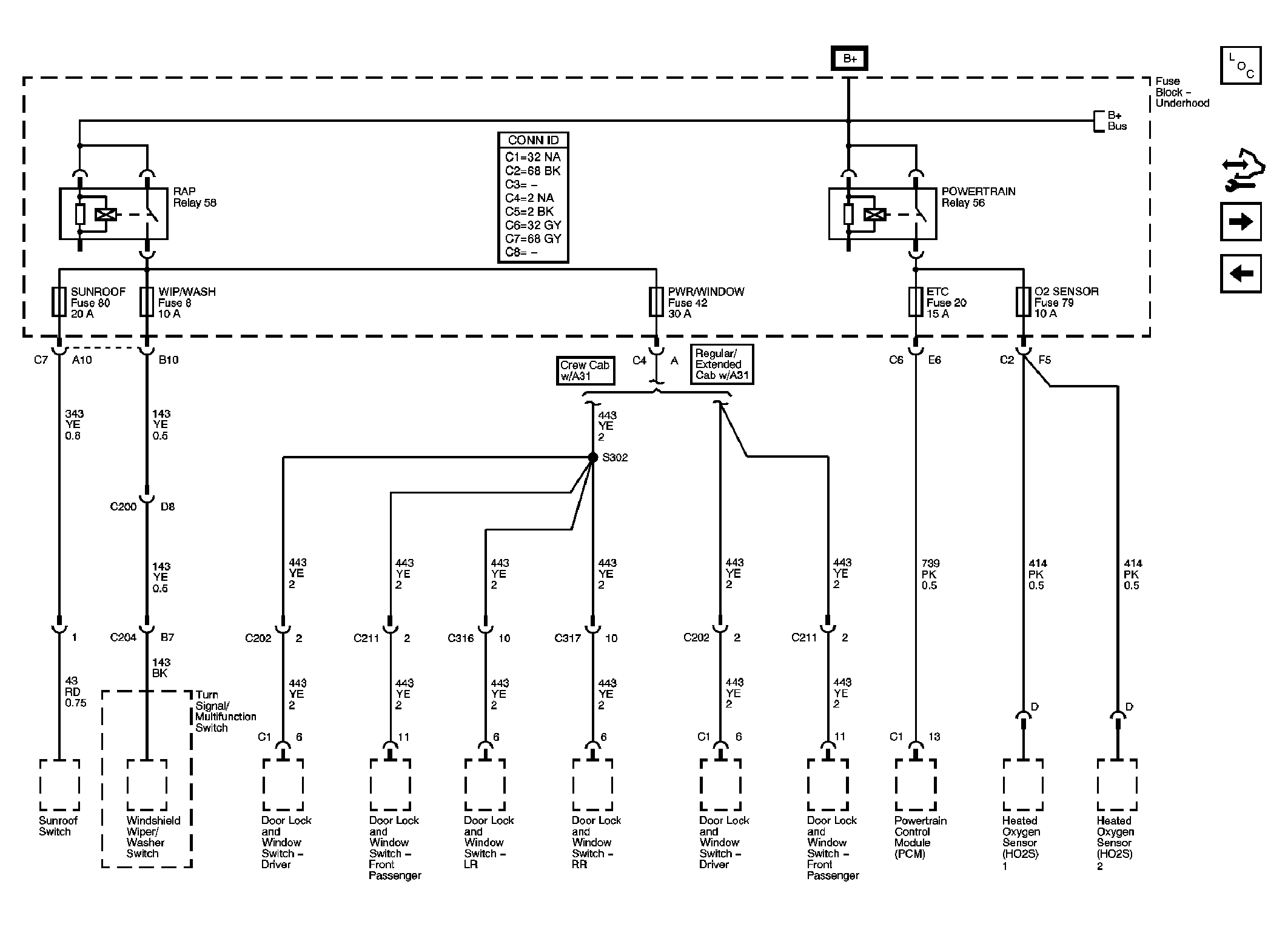

Fig 7: ETC, 02 SENSOR, PWR/WINDOW, SUNROOF, and WIP/WASH Fuses

Courtesy of GENERAL MOTORS CORP.

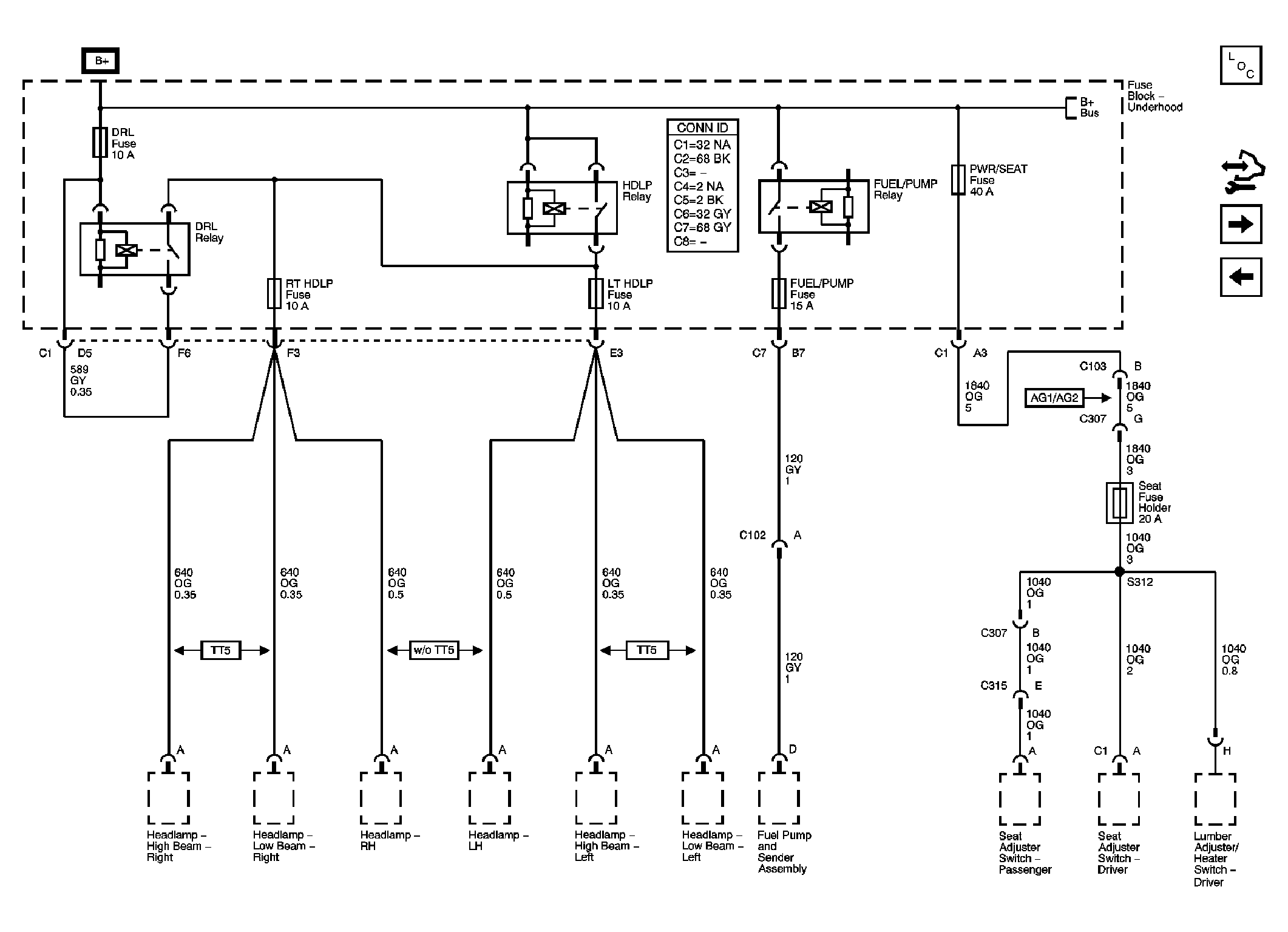

Fig 8: DRL,FUEL PMP, LH HDLP, and RH HDLP Fuses

Courtesy of GENERAL MOTORS CORP.

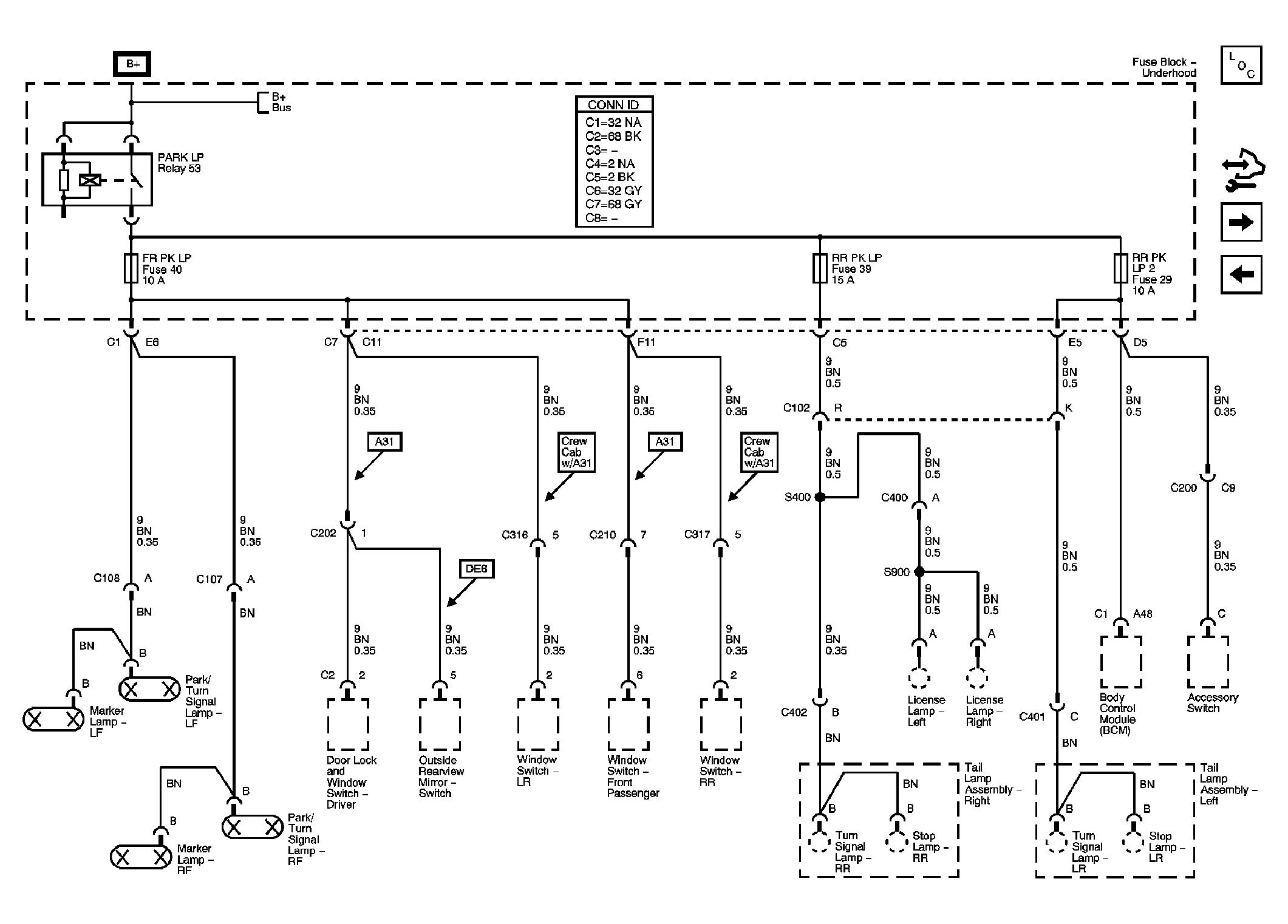

Fig 9: FR PK LP, RR PK LP, and RR PK LP 2 Fuses

Courtesy of GENERAL MOTORS CORP.

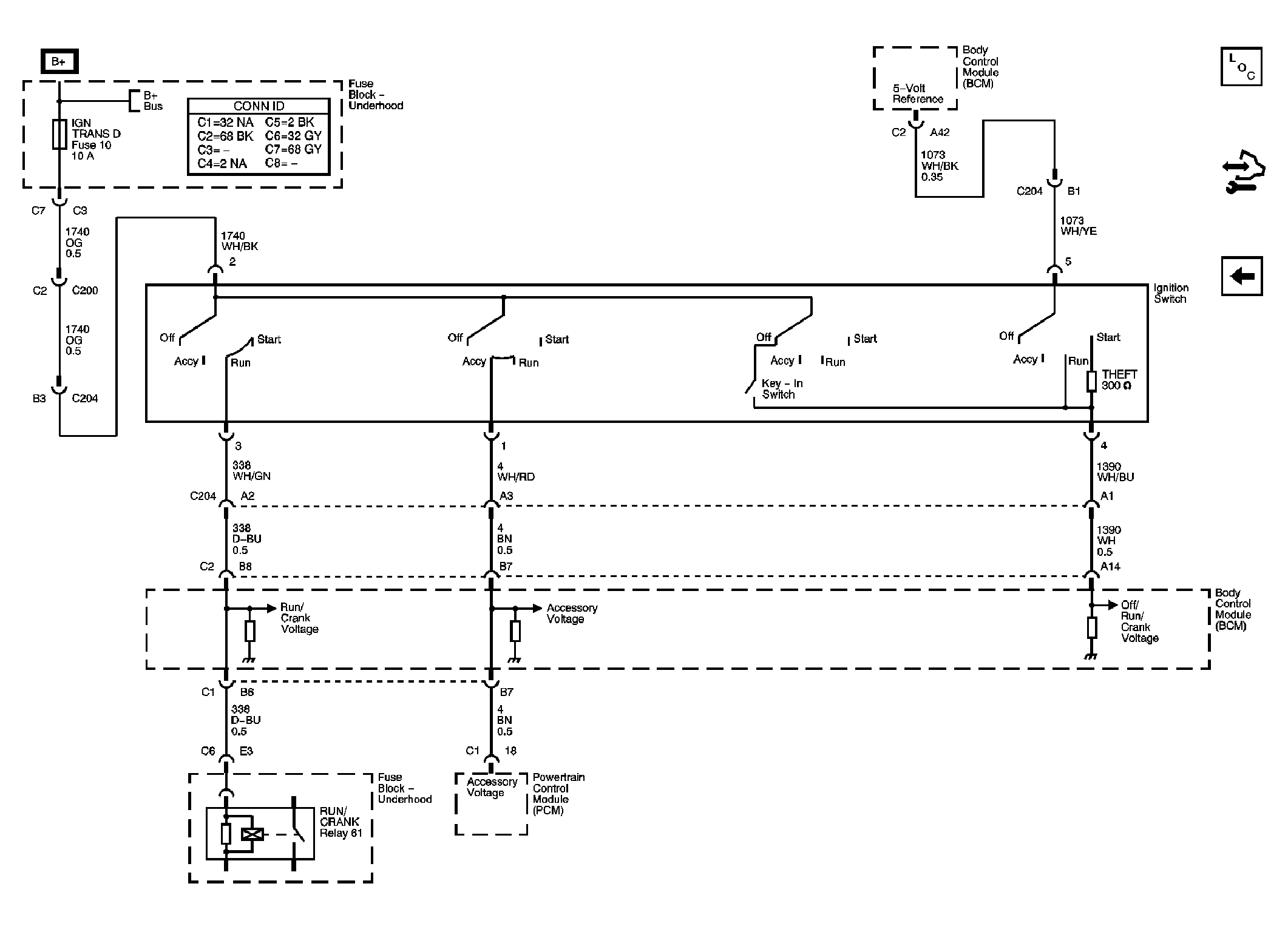

Fig 10: Ignition Switch and IGN TRANS D Fuse

Courtesy of GENERAL MOTORS CORP.
