Ground Distribution Schematics

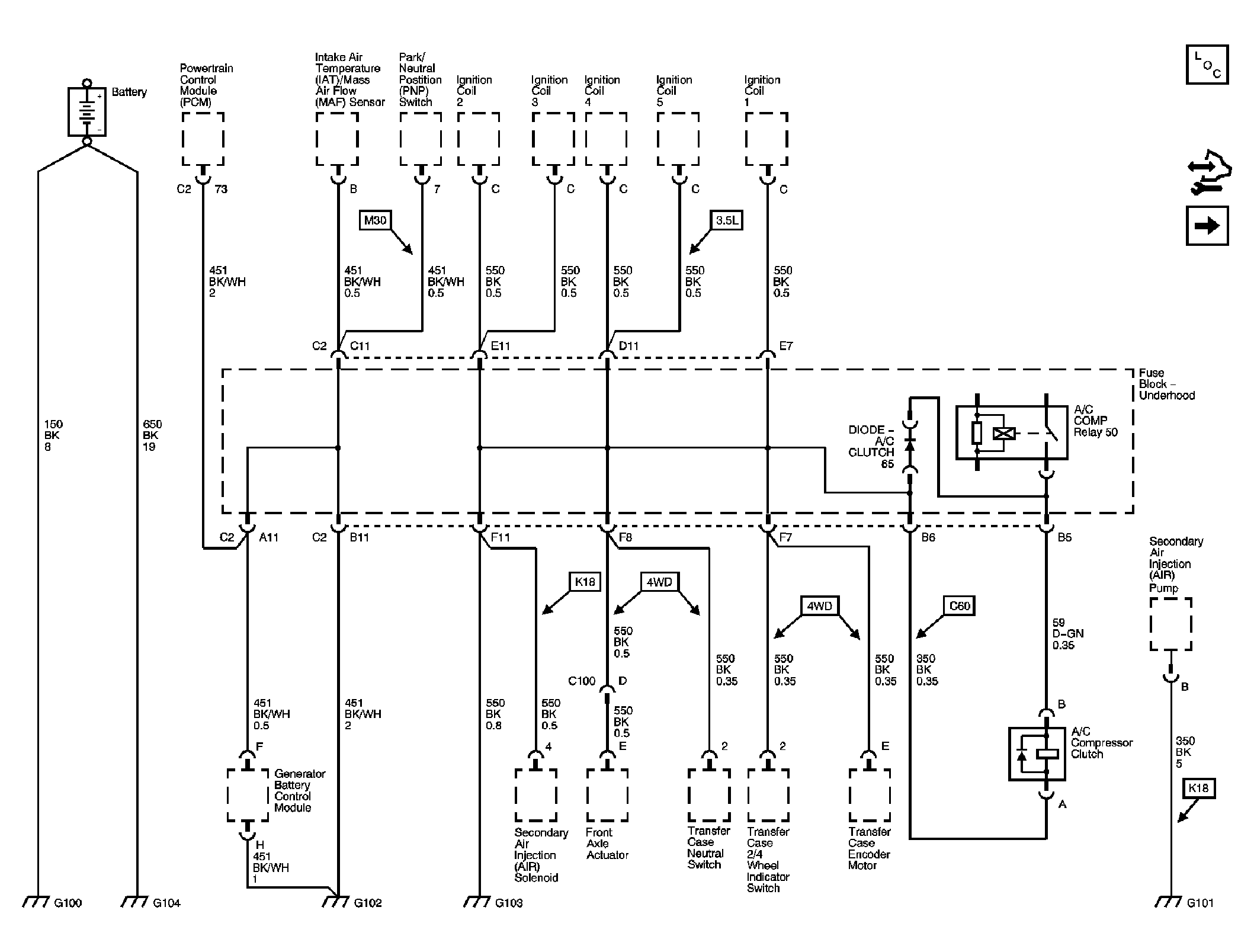

Fig 1: G100, G104, G102, G103, and G101
GM1774195Courtesy of GENERAL MOTORS CORP.

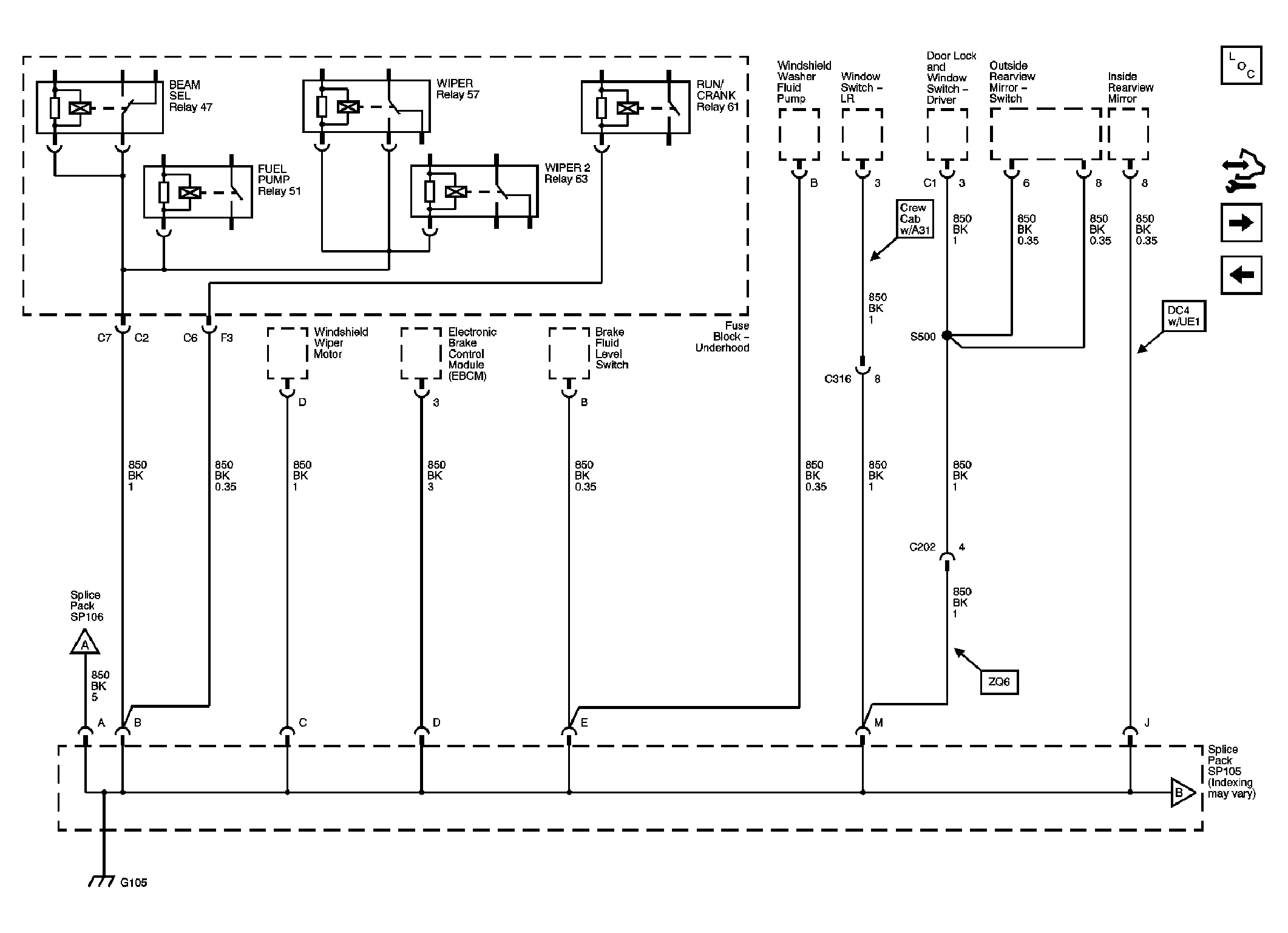

Fig 2: Splice Pack SP105 and G105 1 of 2
GM1774200Courtesy of GENERAL MOTORS CORP.

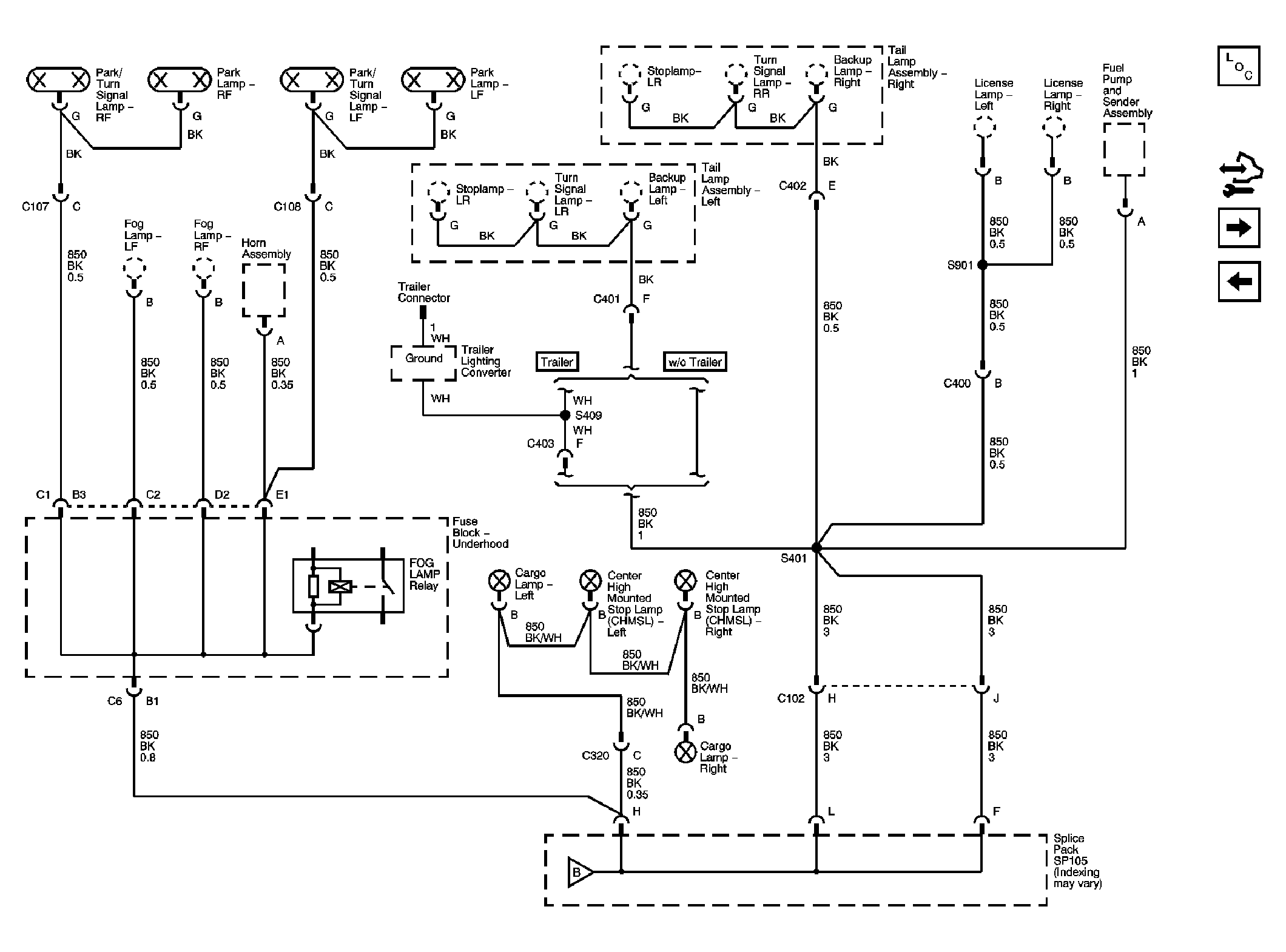

Fig 3: Splice Pack SP105 and G105 2 of 2
GM1774205Courtesy of GENERAL MOTORS CORP.
Fig 4: Splice Pack SP106 and G106 1 of 2
GM1774217Courtesy of GENERAL MOTORS CORP.

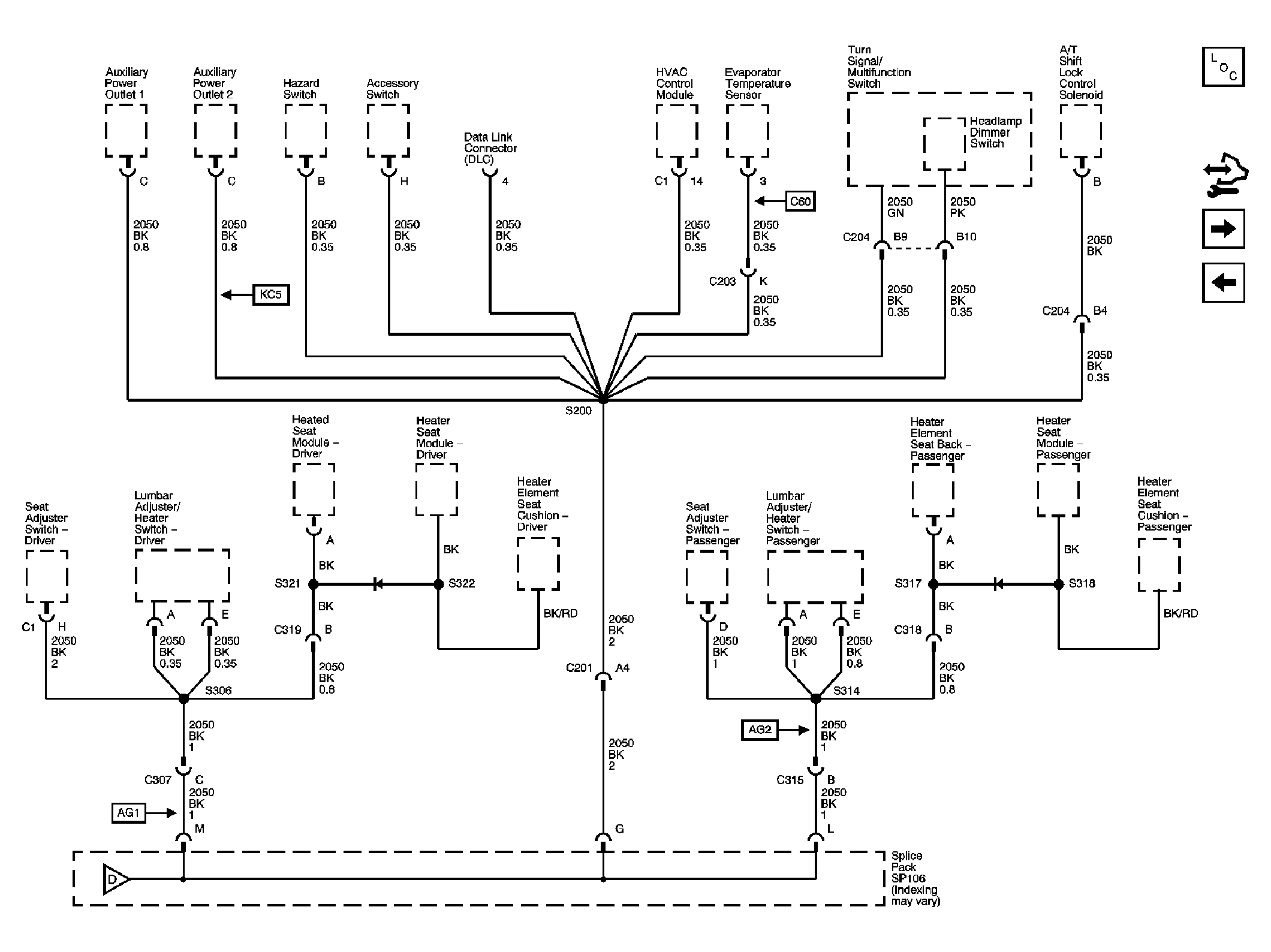

Fig 5: Splice Pack SP106 and G106 2 of 2
GM1774226Courtesy of GENERAL MOTORS CORP.

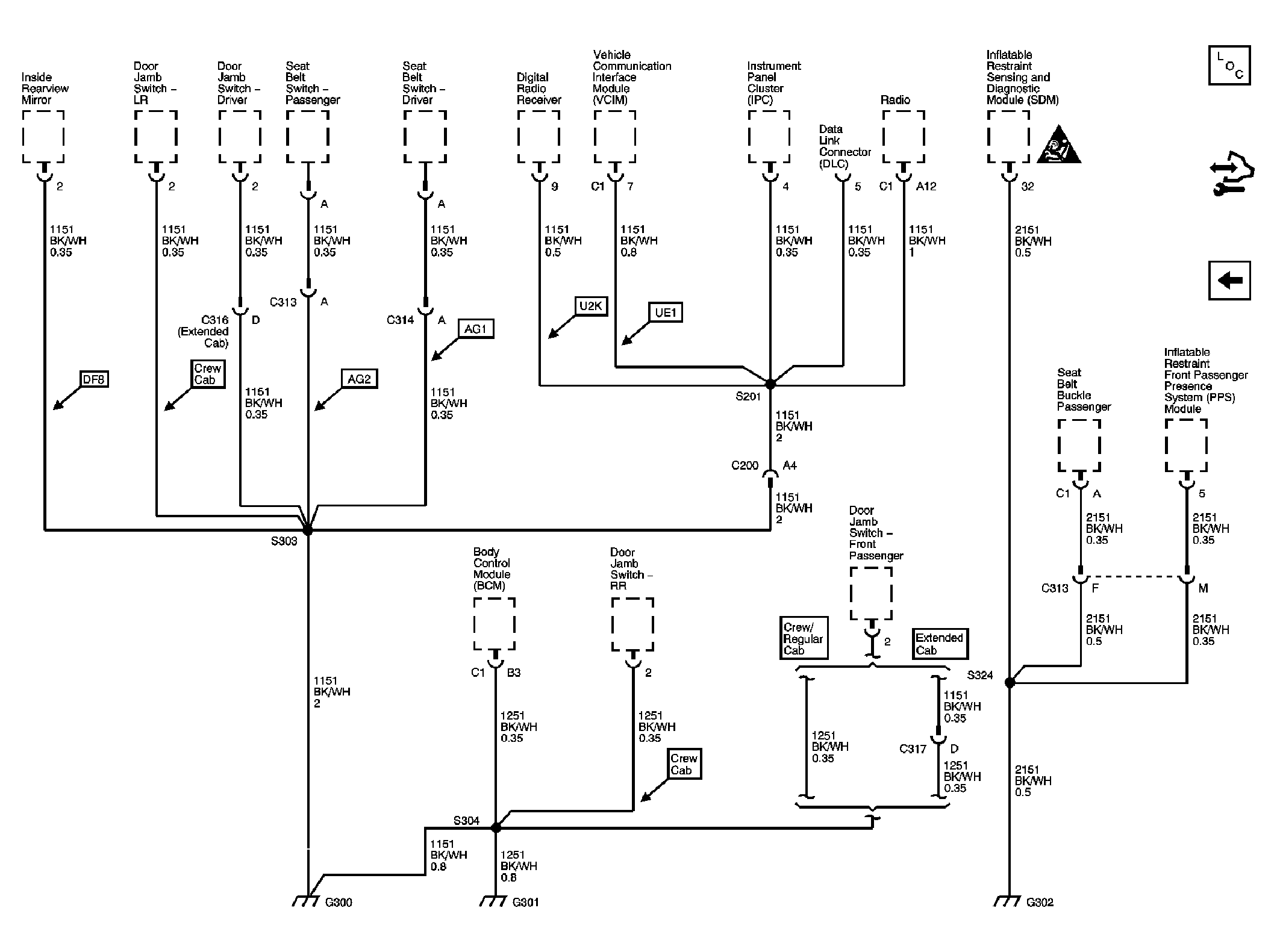

Fig 6: G300, G301, G302
GM1774242Courtesy of GENERAL MOTORS CORP.
