Instrument Cluster Schematics

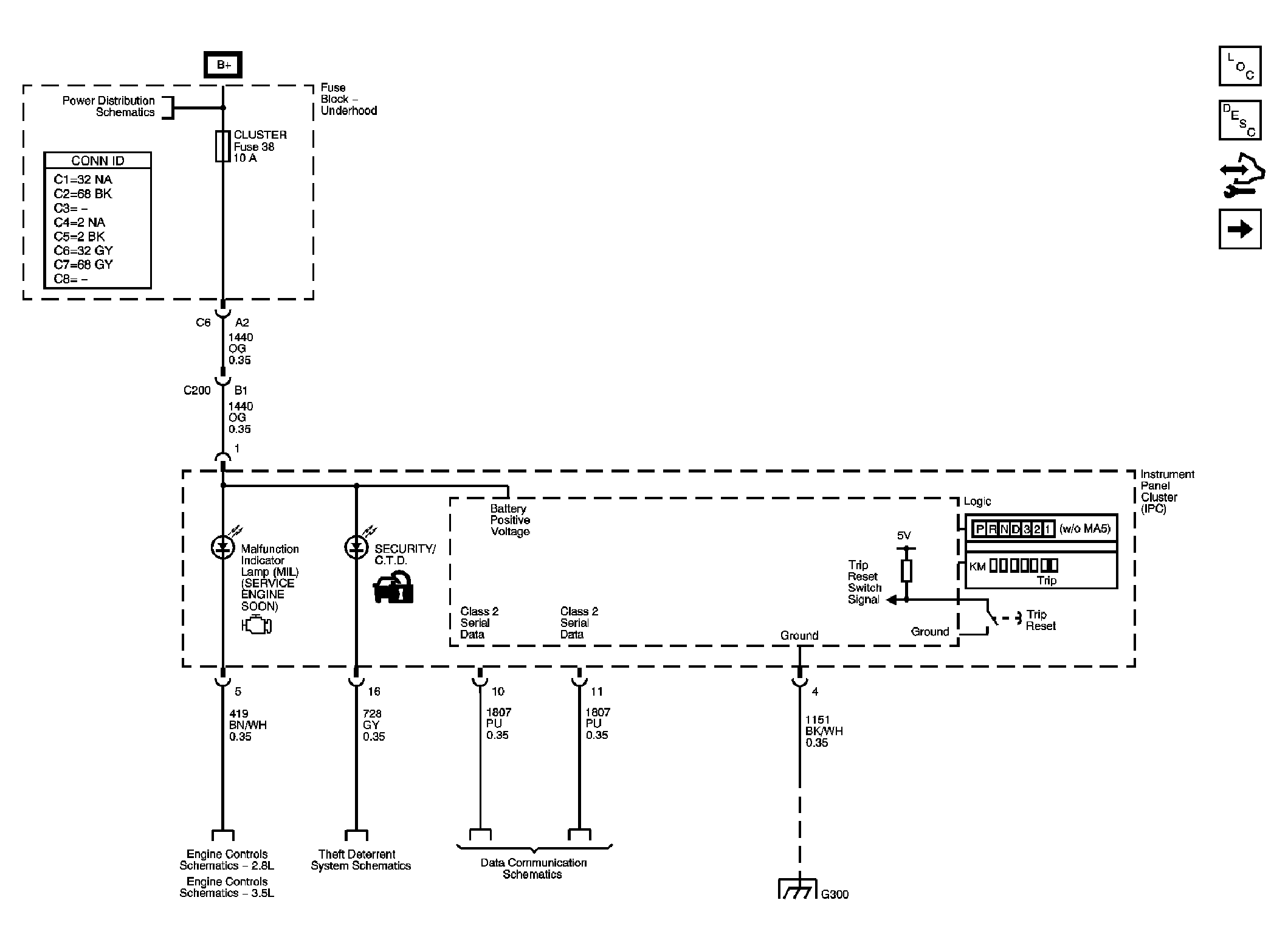

Fig 1: Power, Ground, Serial Data, MIL, and Security Schematic
GM1774880Courtesy of GENERAL MOTORS CORP.

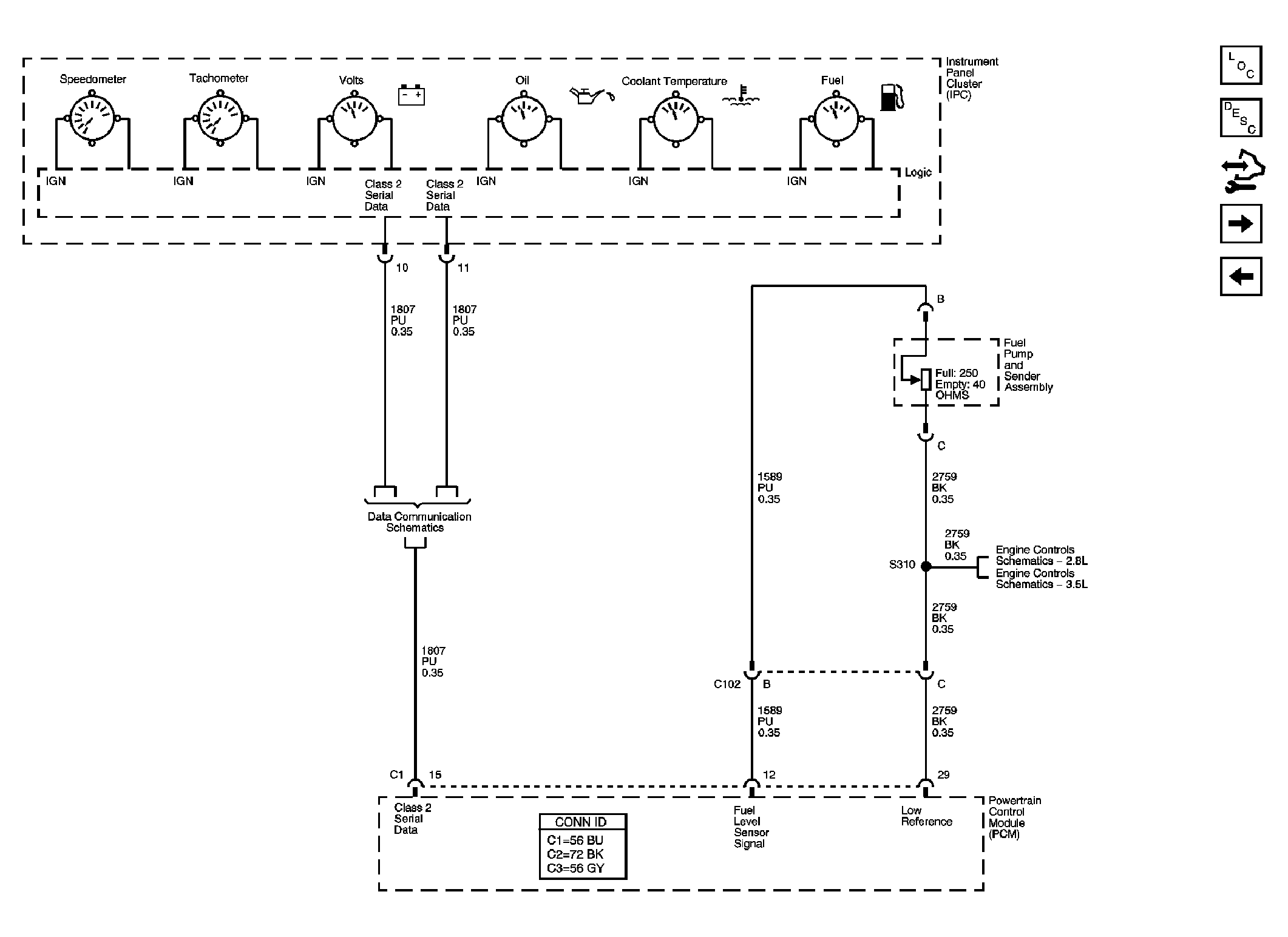

Fig 2: Gages Schematic
GM1774898Courtesy of GENERAL MOTORS CORP.

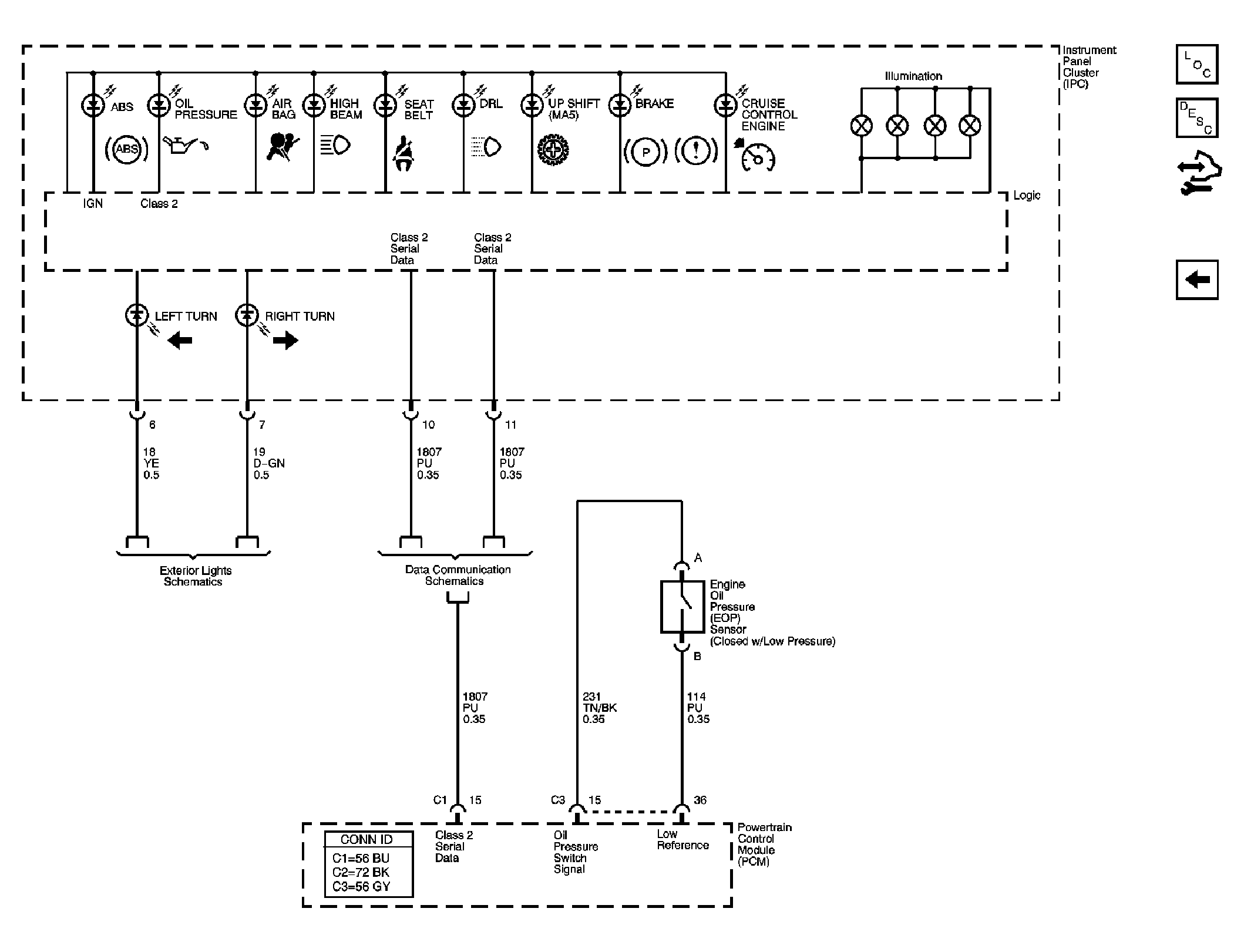

Fig 3: Indicators Schematic
GM1774900Courtesy of GENERAL MOTORS CORP.
