Hydraulic Brake Component Views

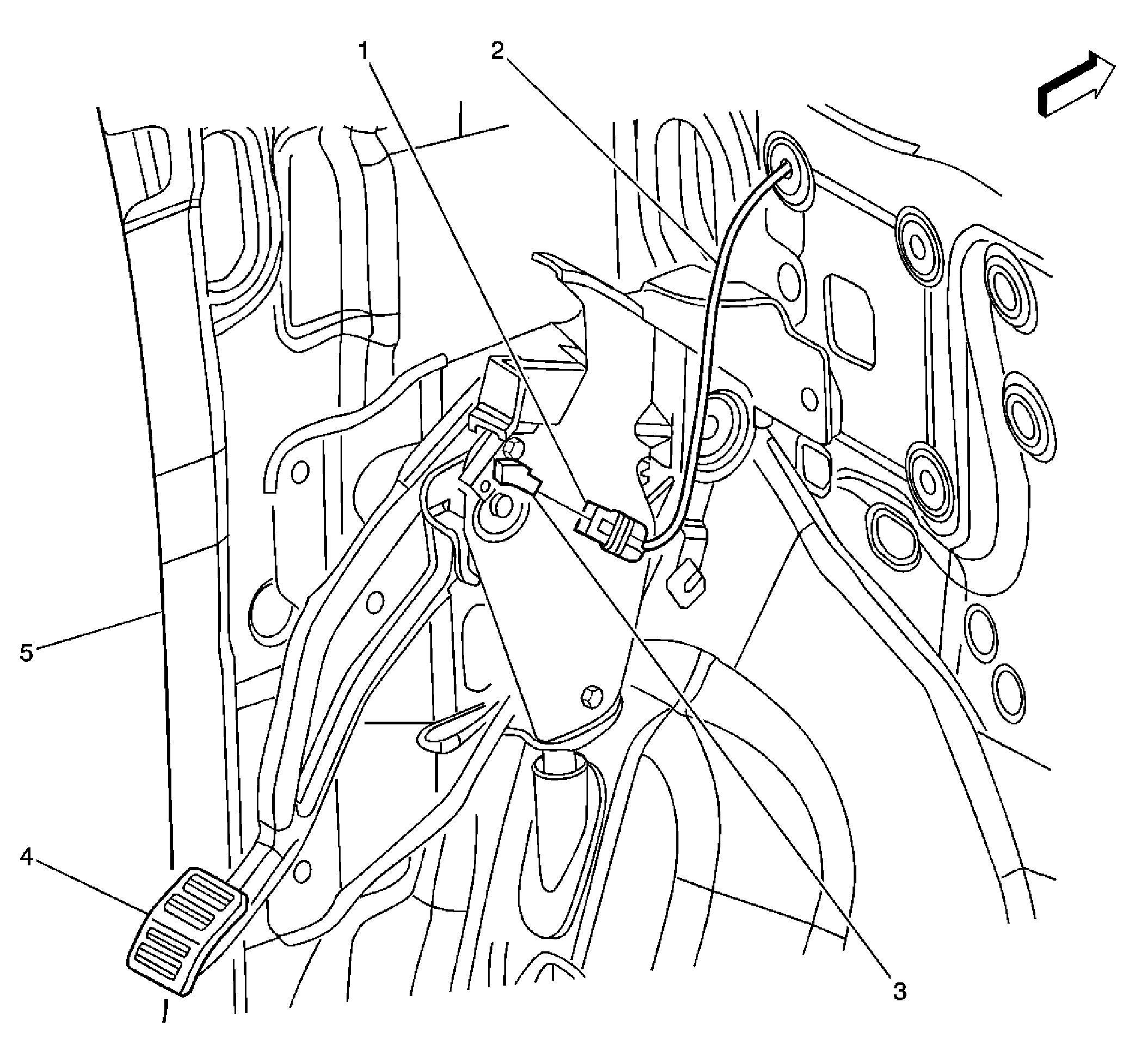

Fig 1: Park Brake Switch Component View
GM1359047Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch Connector
2 Body Harness
3 Park Brake Switch
4 Park Brake Lever
5 Cowel Side Inner Panel

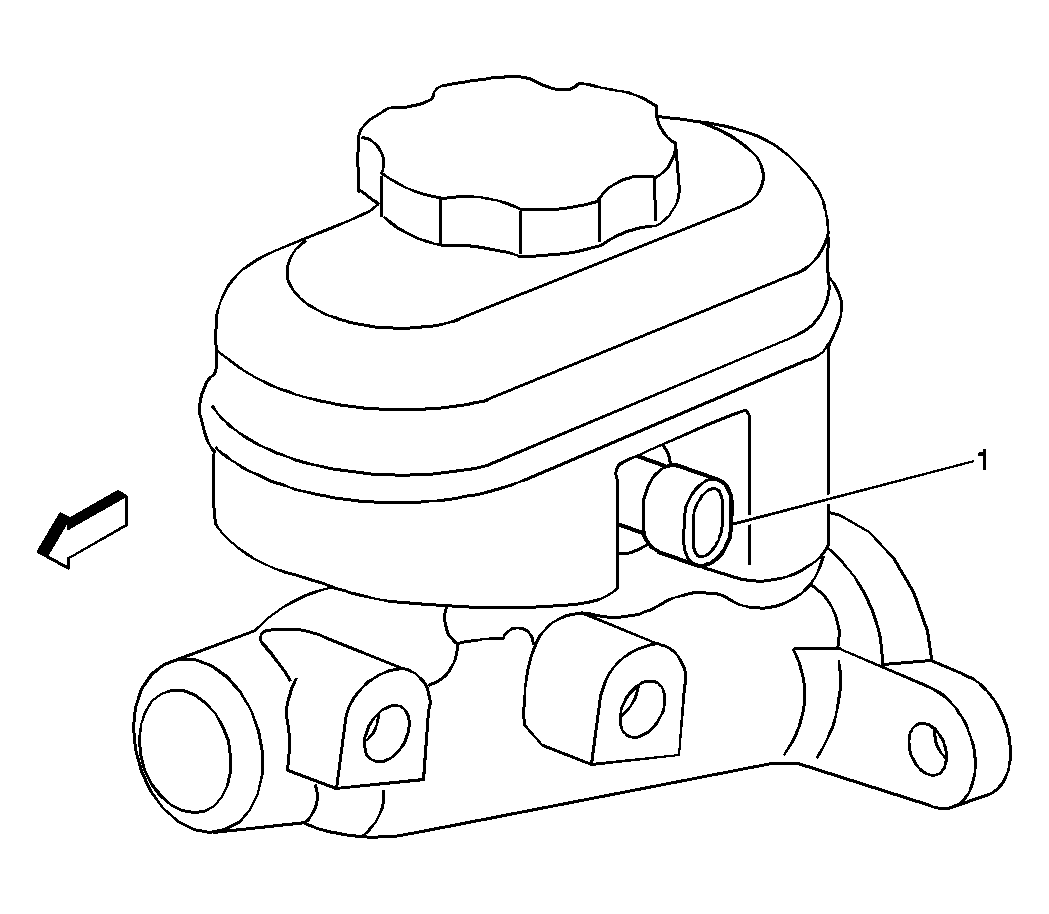

Fig 2: Brake Fluid Level Switch Component View
GM794233Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch
